Slewing Bearings for Port Machinery: A Comprehensive Technical Overview

What Are Slewing Bearings for Port Machinery?

A slewing bearing for port machinery is a large-scale, heavy-duty rotation bearing designed to support combined axial, radial, and tipping moment loads, acting as the critical joint in port equipment. Often called “slewing rings” or “turntable bearings,” these components enable 360-degree rotation in harbor cranes, container cranes, and material handling gear.

A typical slewing bearing consists of four primary components: an inner ring, an outer ring, rolling elements (balls or rollers), spacers or cages, and integrated sealing systems. Depending on the application, either the inner or outer ring may incorporate internal or external gear teeth, allowing direct engagement with a pinion drive for powered rotation.

Several configurations are commonly employed in port applications:

• Single-row ball slewing bearings: also known as four-point contact ball slewing bearings, offer compact design and high overturning moment capacity.Featuring a single raceway with balls as rolling elements, these offer a balance of load capacity and compactness, suitable for lighter-duty applications such as smaller cranes or positioning devices.
• Double-row ball slewing bearings: With two parallel raceways arranged axially, these provide enhanced load distribution and are often used in applications requiring greater overturning moment resistance.
• Three-row roller slewing bearings: Incorporating three separate raceways—one for axial loads, one for radial loads, and a third for the overturning moment—these represent the highest load-carrying capacity configuration. They are the preferred choice for large container cranes and heavy-duty bulk handling equipment where extreme loads and operational reliability are paramount.
• Crossed roller slewing bearings: Utilizing cylindrical rollers arranged perpendicularly in a single raceway, these deliver high rotational accuracy and rigidity, making them suitable for applications demanding precise positioning.

Within port machinery, slewing bearings perform three core functions: they transmit structural loads between the upper and lower structures, enable controlled rotational motion for material handling operations, and maintain alignment under dynamic conditions characterized by shock loads, vibration, and environmental exposure.

How Do Slewing Bearings Work in Port Machinery?

The operational principle of a slewing bearing centers on its ability to simultaneously sustain axial loads, radial loads, and overturning moments while facilitating low-friction rotation. In port machinery, these loads are transmitted through the rolling elements to the raceways, with load distribution governed by the internal geometry, clearance, and stiffness characteristics of the bearing.

Load Transmission Mechanisms

Axial loads, which arise from the weight of the superstructure and the lifted cargo, are transferred vertically through the rolling elements. Radial loads, generated by horizontal forces such as wind loads, ship motion, or acceleration of the rotating structure, act perpendicular to the axis of rotation. The overturning moment—the most critical load component for most port applications—results from the combination of lifted load at the outreach and the counterweight, creating a tipping moment that must be resisted entirely by the bearing structure.

In three-row roller configurations, axial loads are carried by two separate raceways—one for upward axial forces and another for downward axial forces—while radial loads are directed to a distinct radial raceway. This separation of load paths optimizes stress distribution and significantly enhances fatigue life compared to single-row designs where combined loads share common raceways.

Stress Distribution and Contact Mechanics

The contact stress between rolling elements and raceways follows Hertzian contact theory, where elliptical or line contact areas experience localized compressive stresses that can exceed the material’s nominal yield strength. For port machinery operating under low rotational speeds (typically below 10 rpm) with high static and dynamic loads, these contact stresses are a primary determinant of bearing service life. Proper raceway geometry, surface hardness, and material purity are essential to resist subsurface fatigue initiation and propagation.

Failure Mechanisms

Understanding failure modes is essential for both design and maintenance. The most prevalent failure mechanisms in port machinery slewing bearings include:

• Contact fatigue: Manifesting as spalling or pitting on raceways or rolling elements, this results from cyclic stresses exceeding the material’s fatigue limit.
• Plastic deformation: Indentation or brinelling occurs under extreme overload conditions or during shock loading.
• Abrasive wear: Caused by contamination ingress past seals, particularly problematic in dusty port environments.
• Corrosion: Resulting from exposure to marine atmospheres, leading to pitting, fretting, and accelerated fatigue.
• Lubrication failure: Inadequate lubricant film thickness or contamination-induced lubricant degradation leads to metal-to-metal contact and premature wear.

Each of these mechanisms is exacerbated by the characteristic operating conditions of port machinery: low rotational speeds that hinder hydrodynamic film formation, frequent start-stop cycles that impose transient loads, and prolonged exposure to harsh environmental factors.

Features of Slewing Bearings for Port Machinery

Slewing bearings designed for port applications exhibit distinct technical features that differentiate them from general-purpose slewing rings used in construction equipment or industrial automation.

Structural Features

Large diameter-to-cross-section ratios characterize port machinery slewing bearings. With diameters ranging from 500 mm to over 5,000 mm, these bearings must maintain structural rigidity while minimizing overall weight. The thin-walled ring design, while challenging from a manufacturing perspective, enables integration with the host structure without imposing excessive dead weight on the machinery.

Material Features

High-quality bearing steels, typically through-hardened or case-hardened chromium steel grades such as 42CrMo4 or 50Mn, form the foundation of these components. For port applications, material selection extends beyond basic mechanical properties to include:

• High purity: Reduced non-metallic inclusions to minimize stress concentration sites
• Hardenability: Uniform through-section hardness to ensure consistent raceway properties
• Corrosion resistance: Increasing adoption of stainless steel variants or specialized coatings for critical applications
• Surface hardening: Induction hardening of raceways to achieve 55–62 HRC surface hardness with a hardened depth appropriate to the rolling element contact geometry

Sealing Features

The sealing system represents a critical design element for port machinery. Multi-lip labyrinth seals, often combined with Viton or nitrile rubber materials, provide resistance to seawater ingress, dust infiltration, and lubricant leakage. For equipment operating in high-pressure washdown environments, supplementary sealing measures such as seal guards or pressurized lubrication systems may be employed.

Manufacturing Precision

Port machinery slewing bearings require exceptional manufacturing precision to ensure proper load distribution and smooth operation. Key manufacturing features include:

• Raceway geometry: Grinding tolerances typically within ISO Class P5 or P6, with surface finishes below 0.4 µm Ra
• Gear quality: Gear teeth cut to AGMA Class 10 or higher, with appropriate backlash adjustment to accommodate thermal expansion and structural deflection
• Bolt circle accuracy: Precision drilling and tapping of mounting holes to ensure uniform preload distribution and prevent stress concentrations

Advantages of Slewing Bearings in Port Applications

The selection of slewing bearings for port machinery offers distinct engineering and operational advantages that have made them the industry standard for rotational interfaces.

Compact Design Integration

Slewing bearings combine the functions of a bearing, connection interface, and drive system into a single component. This integration eliminates the need for separate kingpin or turntable arrangements, reducing overall machine height, simplifying structural interfaces, and lowering fabrication costs. The ability to incorporate gear teeth directly into the ring further streamlines drive system design.

Superior Load Capacity

The multi-row roller configurations used in heavy port applications deliver exceptional load capacity relative to envelope size. Three-row roller bearings, in particular, can sustain overturning moments exceeding 100,000 kN·m while maintaining compact proportions. This capacity enables longer reaches and higher lifting capacities in container cranes and bulk handlers.

Smooth, Reliable Rotation

Properly designed slewing bearings provide consistent rotational characteristics throughout their service life. The low-friction rolling interface minimizes power consumption during rotation and enables precise positioning essential for modern automated port operations. The predictable torque characteristics also facilitate control system tuning and load handling accuracy.

Operational Reliability

Port machinery operates under demanding conditions characterized by continuous duty cycles, often exceeding 8,000 hours annually. Slewing bearings are engineered to withstand these demands with appropriate safety factors. The combination of conservative design margins, robust sealing, and appropriate material selection yields service lives aligned with overall equipment life expectations—typically 15 to 25 years for major port equipment.

Maintainability

Unlike plain bearing alternatives, slewing bearings permit maintenance through accessible lubrication points. Periodic relubrication, typically through centralized lubrication systems, flushes contaminants from raceways while replenishing the lubricant film. For larger bearings, provisions for raceway inspection through access ports enable condition monitoring without disassembly.

Life-Cycle Cost Efficiency

While initial procurement costs for high-quality slewing bearings are significant, the total cost of ownership is favorable when considering the long service life, predictable maintenance requirements, and avoidance of unplanned downtime. The cost of a bearing failure in port operations—including crane downtime, repair expenses, and operational disruptions—far exceeds the incremental investment in a properly engineered bearing solution.

Applications of Slewing Bearings in Port Machinery

Slewing bearings find application across the full spectrum of port handling equipment, with configuration and size selected to match specific operational requirements.

Container Cranes

Ship-to-shore (STS) container cranes represent the most demanding application for slewing bearings. These cranes, which service vessels up to 24 containers wide, require bearings capable of supporting overturning moments generated by outreaches exceeding 70 meters and lifting capacities of 100 tons or more. Three-row roller bearings are universally employed, with diameters ranging from 3,000 mm to 5,000 mm. The bearing supports the entire rotating superstructure, including the boom, trolley, and operator’s cab, while withstanding the dynamic loads imposed by wave-induced ship motion and wind forces.

Rubber-tired gantry (RTG) cranes and rail-mounted gantry (RMG) cranes employ slewing bearings at the trolley level for container positioning. These applications typically utilize double-row ball bearings or crossed roller bearings where rotational precision is prioritized.

Bulk Handling Equipment

Ship unloaders and reclaimers handle bulk commodities such as iron ore, coal, and grain. These machines operate in exceptionally abrasive environments, with dust contamination representing a significant challenge. Slewing bearings on ship unloaders must accommodate the dynamic loads generated by the digging action of the bucket wheel or screw conveyor, often experiencing shock loads beyond normal operational expectations. Stacker-reclaimers, which travel along stockpiles, utilize large-diameter slewing bearings for the boom pivot, enabling slewing angles typically ranging from 90 to 180 degrees.

Mobile Port Machinery

Mobile harbor cranes (MHCs) combine the flexibility of rubber-tired mobility with lifting capacities comparable to fixed cranes. The slewing bearing in an MHC supports the entire upper structure while accommodating the loads generated during pick-and-carry operations. The compactness of slewing bearing designs enables the low-profile configuration essential for MHC stability.

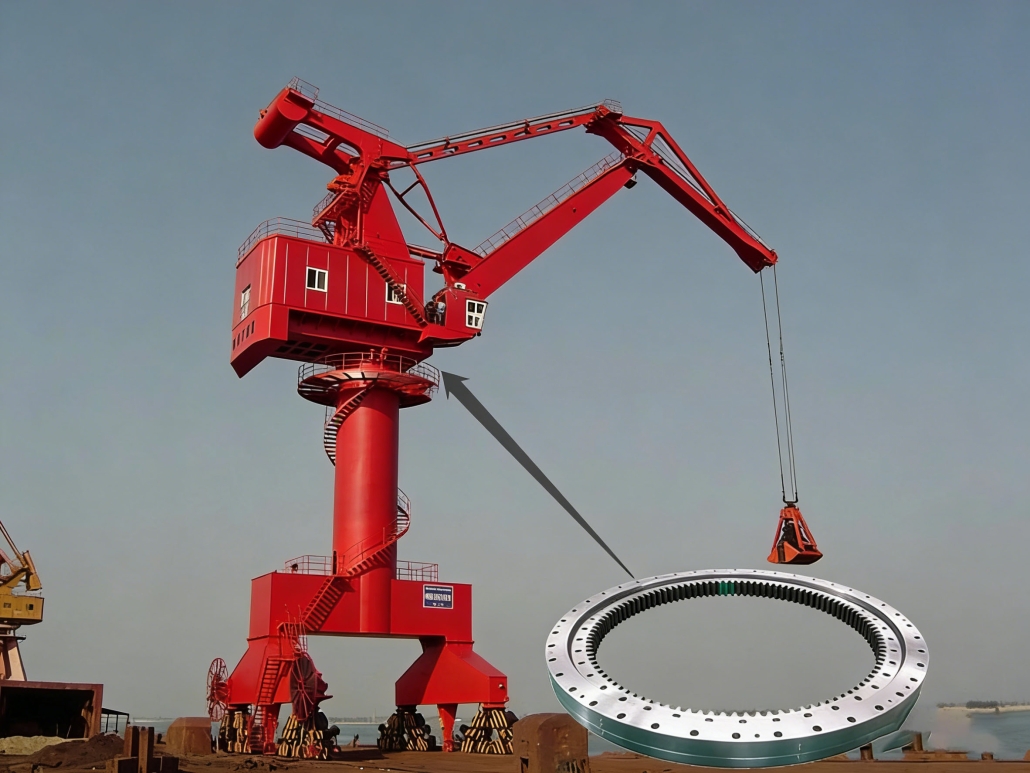

Portal cranes and level-luffing cranes employed in general cargo handling rely on slewing bearings sized to match their specific duty cycles. These applications often feature internal gear configurations that integrate seamlessly with the portal structure.

Specialized Equipment

Floating cranes used for offshore and heavy-lift applications present unique challenges, including continuous exposure to saltwater spray and the dynamic loads induced by wave motion. Slewing bearings for these applications often incorporate enhanced corrosion protection, including specialized coatings and stainless steel components. Automated guided vehicles (AGVs) used in container terminals employ smaller slewing bearings for steering and positioning applications where precision and reliability are essential.

Selection Considerations

Proper bearing selection requires careful consideration of operational parameters:

• Load spectrum: Characterization of typical, peak, and fatigue loads over the duty cycle
• Rotational requirements: Speed, frequency, and rotational angle requirements
• Environmental factors: Corrosion potential, temperature extremes, and contamination exposure
• Maintenance access: Provisions for inspection and relubrication
• Safety factors: Compliance with applicable standards (ISO 76, ISO 281, FEM 1.001)

Future Trends in Slewing Bearings for Port Machinery

The evolution of port machinery toward automation, electrification, and enhanced operational efficiency is driving corresponding advances in slewing bearing technology.

Intelligentization and Condition Monitoring

The integration of sensors and diagnostic capabilities into slewing bearings represents one of the most significant development areas. Embedded sensors for temperature, vibration, and acoustic emission enable continuous monitoring of bearing health. When combined with predictive analytics, these systems can identify developing failures before they impact operations, enabling condition-based maintenance that minimizes downtime and extends service life.

Wireless telemetry systems that transmit data from rotating components to stationary receivers eliminate the wiring complexity that previously limited instrumentation of rotating structures. Advanced systems incorporate lubricant analysis sensors capable of detecting contamination, moisture ingress, and lubricant degradation in real time.

Advanced Materials

Development efforts continue toward materials offering enhanced performance in port environments. High-nitrogen stainless steels provide improved corrosion resistance without sacrificing hardness and fatigue strength. Composite materials for cages and spacers reduce weight and eliminate the risk of metal-to-metal contact in boundary lubrication conditions. Advanced surface treatments, including diamond-like carbon (DLC) coatings and ceramic rolling elements, are being explored for applications requiring extreme durability.

Lightweight Design

As port machinery evolves toward greater energy efficiency, lightweighting has become a priority. Topology optimization and finite element analysis enable design iterations that remove material from low-stress regions while maintaining structural integrity. Advanced manufacturing techniques, including near-net forging and precision machining, reduce weight while preserving functional requirements.

Remanufacturing and Circular Economy

The substantial investment represented by large-diameter slewing bearings makes them prime candidates for remanufacturing programs. Established procedures for bearing inspection, disassembly, raceway refurbishment, and component replacement enable service life extension at a fraction of new replacement cost. These programs support sustainability objectives while delivering favorable economic returns.

Standardization and Interoperability

Harmonization of dimensional and performance standards across international markets facilitates global sourcing and reduces inventory requirements. ISO 76 (static load ratings), ISO 281 (dynamic load ratings), and FEM 1.001 (crane structures) provide frameworks for consistent design and evaluation. Emerging standards addressing condition monitoring interfaces and data exchange protocols will further enable the integration of bearing health data into terminal operating systems.
