How to Choose the Right Slewing Bearing for Coal Mills？

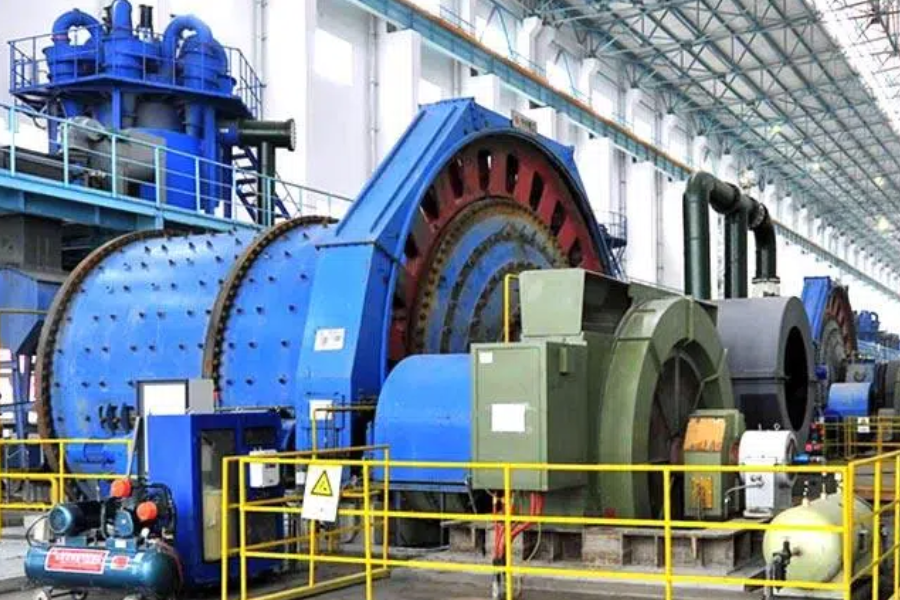

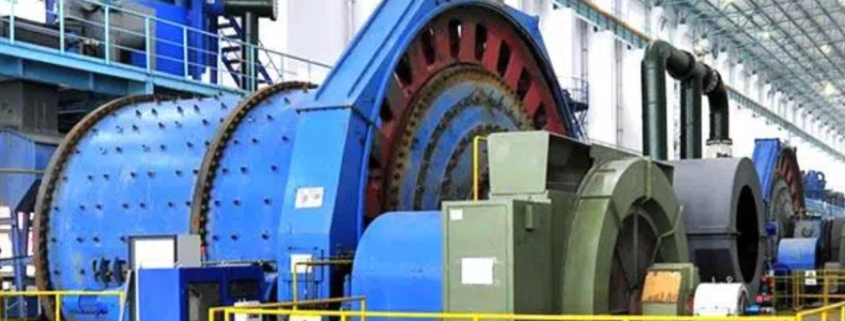

In cement plants and power generation facilities around the world, coal mills run day and night, turning raw coal into fine powder that fuels industrial processes. Inside these mills, one component carries the weight of the grinding table, withstands the constant pressure of crushing rollers, and enables continuous rotation hour after hour: the slewing bearing. Selecting the right bearing for this demanding application is not just a technical decision—it directly affects plant reliability, maintenance costs, and production uptime.
What Is a Slewing Bearing for Coal Mills?
A slewing bearing for a coal mill is a large rolling-element bearing designed to support the rotating components of the mill while handling the extreme forces generated during the grinding process. Typically installed between the mill’s rotating table or grinding bowl and its stationary base, this bearing simultaneously manages axial loads from the grinding rollers, radial loads from rotational forces, and overturning moments caused by uneven material distribution.
Structurally, a coal mill slewing bearing consists of an inner ring, an outer ring, rolling elements (usually cylindrical rollers for heavy-load applications), spacers or cages, heavy-duty seals, and mounting holes. One of the rings typically features gear teeth that engage with the drive system’s pinion gear. Unlike bearings used in many other industrial applications, coal mill slewing bearings must operate continuously at low speeds under constant, heavy loads, often in environments filled with fine coal dust and elevated temperatures.
The table below summarizes the key characteristics of slewing bearings for coal mills across different mill types and sizes.
| Mill Type | Typical Capacity | Recommended Bearing Type | Key Considerations |
|---|---|---|---|
| Vertical Roller Mill (Small) | Up to 50 t/h | Single-Row Ball | Compact design, suitable for moderate grinding pressure |
| Vertical Roller Mill (Medium) | 50–150 t/h | Double-Row Ball | Good load capacity, balanced performance and cost |
| Vertical Roller Mill (Large) | 150+ t/h | Three-Row Roller | Highest load capacity, maximum durability for continuous operation |
| Ball Mill | Various | Heavy-Duty Three-Row Roller | Extremely high radial loads, requires robust sealing against dust |
How Does a Slewing Bearing Work in a Coal Mill?
The operation of a slewing bearing in a coal mill is characterized by continuous, low-speed rotation under heavy and often constant loads. When the mill is in operation, an electric motor drives a reducer, which in turn rotates a small pinion gear. This pinion meshes with the gear teeth on the slewing bearing’s ring, causing the attached grinding table or bowl to rotate.
As the table rotates, grinding rollers press down onto the coal bed, generating substantial axial forces that travel through the table and into the slewing bearing. The rolling elements inside the bearing—typically cylindrical rollers in high-capacity designs—travel along precision-ground raceways, distributing these enormous loads evenly across the bearing structure. The bearing must maintain smooth, stable motion while resisting the tilting forces that occur when coal is distributed unevenly across the grinding table.
Unlike many rotating equipment applications that involve frequent starts and stops or directional changes, coal mill bearings operate with relatively constant rotational direction and load magnitude. This steady-state operation places different demands on the bearing’s materials, lubrication system, and sealing arrangement, making specialized design considerations essential for long-term reliability.
Key Features of Coal Mill Slewing Bearings
Coal mill slewing bearings are engineered specifically for the demanding conditions of continuous industrial grinding operations. Several distinctive features set them apart from bearings used in other applications.
High Load-Carrying Capacity is the most critical feature. These bearings must support the full weight of the grinding table, the crushing force from the rollers, and the dynamic loads from uneven coal feed. Three-row roller designs are common in large mills because they separate axial and radial load paths, maximizing capacity within a compact envelope.
Low-Speed Optimization distinguishes these bearings from higher-speed counterparts. The rolling elements and raceways are designed to maintain a thick, durable lubricant film even at rotational speeds as low as several revolutions per minute. This prevents metal-to-metal contact during the slow rotation that characterizes mill operation.
Superior Sealing Systems are essential for survival in coal grinding environments. Coal dust is extremely fine and abrasive, capable of penetrating even small gaps. High-quality coal mill bearings incorporate multiple labyrinth seals, often combined with purging systems that use pressurized air or grease to keep contaminants away from critical internal surfaces.
Heat Resistance is another key characteristic. Coal mills can operate at elevated temperatures, especially when grinding certain coal types. Bearing materials, heat treatment, and lubrication systems must be selected to maintain performance under these thermal conditions without premature degradation.
Structural Rigidity ensures stable operation. The bearing must resist deflection under load to maintain proper alignment between the grinding table and rollers. Any excessive flexibility can lead to uneven grinding, reduced efficiency, and accelerated component wear.
Advantages of High-Quality Slewing Bearings for Coal Mills
Investing in a high-quality slewing bearing for a coal mill delivers benefits that extend far beyond the component itself, impacting overall plant productivity and profitability.
Reduced Unplanned Downtime is perhaps the most significant advantage. Coal mills are often critical path equipment in cement plants and power stations. When a slewing bearing fails, the entire production line may stop, resulting in substantial lost revenue. Quality bearings with robust design and reliable manufacturing dramatically reduce this risk.
Lower Maintenance Costs result from longer service intervals and extended component life. High-grade materials, precise manufacturing, and effective sealing all contribute to a bearing that maintains performance for years rather than months. Fewer replacements mean less labor, reduced spare parts inventory, and lower overall operating costs.
Consistent Mill Performance depends on a properly functioning slewing bearing. Any degradation in bearing condition can affect grinding efficiency, leading to higher energy consumption, poor product fineness, and increased wear on other components such as grinding rollers and liners.
Improved Safety comes from reliable bearing operation. Unexpected bearing failures in large coal mills can create hazardous situations, including sudden equipment jams or structural damage. Quality bearings with appropriate safety margins provide peace of mind for plant operators and maintenance teams.
Extended Equipment Lifespan is a natural outcome of proper bearing selection. When the slewing bearing is correctly specified and manufactured, it protects the mill’s structural components from excessive stress and misalignment, contributing to the overall longevity of the entire grinding system.
Types of Slewing Bearings Used in Coal Mills
Different coal mill sizes and grinding technologies require different types of slewing bearings. The choice depends primarily on the mill’s grinding capacity, the number and configuration of grinding rollers, and the specific operating conditions. The table below summarizes the most common types.
| Type | Structure | Typical Mill Size | Key Characteristics |
|---|---|---|---|
| Three-Row Roller Slewing Bearing | Three independent raceways: one for axial loads, two for radial loads | Large coal mills (high capacity, heavy-duty grinding) | Highest load capacity, separate load paths for different forces, maximum durability under continuous operation |
| Double-Row Ball Slewing Bearing | Two rows of balls arranged at different diameters | Medium-sized coal mills | Good load capacity, more compact than three-row designs, suitable for moderate grinding pressures |
| Single-Row Ball Slewing Bearing | One row of steel balls with four-point contact | Small coal mills or vertical roller mills with lighter loads | Compact design, cost-effective, suitable for applications with lower load requirements |
In addition to these structural types, slewing bearings for coal mills are also classified by gear configuration. Internal gear bearings have teeth on the inner ring and are commonly used when the drive system is positioned inside the mill structure. External gear bearings have teeth on the outer ring, offering different packaging and maintenance access options.
| Gear Type | Description | Typical Application |
|---|---|---|
| Internal Gear | Teeth cut on inner ring, drive pinion positioned inside | Mills with compact drive layouts, space-constrained installations |
| External Gear | Teeth cut on outer ring, drive pinion positioned outside | Mills requiring easier access for drive system maintenance |
| Gearless | No teeth, rotation provided by other mechanisms | Specialized mill designs with alternative drive arrangements |
Key Factors to Consider When Selecting a Coal Mill Slewing Bearing
Selecting the right slewing bearing for a coal mill requires careful evaluation of multiple technical factors. Each of these elements influences the bearing’s performance, reliability, and service life in the demanding environment of continuous grinding operations.
Load Calculation is the foundation of proper selection. The bearing must be sized to handle the maximum axial load from grinding pressure, the radial loads from rotational forces, and the overturning moment from uneven material distribution. This requires detailed analysis of the mill’s grinding table diameter, the number and weight of grinding rollers, the grinding pressure applied by the hydraulic system, and the expected coal feed characteristics. Professional manufacturers use specialized calculation methods to determine the appropriate bearing type, size, and internal geometry.
Operating Conditions must be thoroughly understood before selection. Key factors include:
- Ambient and operating temperature ranges
- Coal dust concentration and particle size
- Expected hours of continuous operation
- Start-stop frequency
- Exposure to moisture or process gases
Material and Heat Treatment directly determine the bearing’s ability to withstand rolling contact fatigue and wear. High-quality slewing bearings for coal mills are typically manufactured from forged or rolled alloy steels such as 42CrMo or similar grades. Induction hardening of raceways creates a hard, wear-resistant surface while maintaining a tough, ductile core that can absorb impact loads. The depth and pattern of hardening must be precisely controlled to ensure long-term durability under continuous operation.
Sealing System Design is critical in coal mill applications. Coal dust is extremely fine and abrasive, and once it penetrates the bearing, it rapidly accelerates wear. Effective sealing arrangements often include:
- Multiple labyrinth seals to create tortuous paths for contaminants
- Grease-filled cavities that trap particles before they reach the raceways
- Optional air purging systems that maintain positive pressure inside the bearing
- Heavy-duty lip seals made from materials resistant to heat and chemical attack
Lubrication Method must be selected based on the mill’s operating schedule and maintenance capabilities. Options include:
- Automatic grease lubrication systems that provide continuous fresh lubricant
- Centralized oil circulation systems for applications requiring cooling
- Extended-life grease for mills with limited maintenance access
- Specialized high-viscosity lubricants designed for low-speed, high-load conditions
Gear Configuration must match the mill’s drive system. Key considerations include:
- Gear module and tooth profile compatibility with the drive pinion
- Gear material and heat treatment for wear resistance
- Backlash requirements for smooth engagement
- Gear accuracy class to ensure quiet, efficient power transmission
Installation and Maintenance Accessibility should be considered during selection. The bearing’s mounting hole pattern, lifting provisions, and clearances for maintenance tools all affect how easily the bearing can be installed and serviced. Features such as lubrication distribution grooves and inspection ports can significantly simplify ongoing maintenance.
Common Failure Modes and Prevention
Understanding how slewing bearings fail in coal mill applications helps in selecting designs that mitigate these risks and in establishing effective maintenance programs.
Raceway Wear is the most common failure mode in coal mill slewing bearings. It typically results from inadequate lubrication, contaminant ingress, or improper material selection. Signs include increased rotational resistance, unusual noise, and eventual loss of smooth operation. Prevention requires proper sealing, regular lubrication, and selection of appropriate raceway hardness for the expected load levels.
Gear Tooth Damage can occur from misalignment between the drive pinion and bearing gear, insufficient lubrication, or fatigue from continuous operation. Damaged teeth lead to rough operation, increased vibration, and eventual drive system failure. Prevention includes proper alignment during installation, regular inspection of tooth contact patterns, and ensuring adequate lubrication reaches the gear interface.
Seal Failure allows coal dust to enter the bearing, rapidly accelerating wear. Seals can fail due to aging, physical damage during maintenance, or incompatibility with operating temperatures. Prevention involves selecting seals appropriate for the temperature range, inspecting seals regularly, and replacing them before they deteriorate to the point of failure.
Bolt Loosening or Fracture can result from inadequate preload, vibration, or fatigue. Loose bolts allow movement between the bearing and mounting structures, leading to accelerated wear and potential catastrophic failure. Prevention requires proper bolt torque specifications, use of locking mechanisms, and regular retorquing during scheduled maintenance.
Lubricant Degradation occurs over time from oxidation, contamination, or exposure to elevated temperatures. Degraded lubricant loses its ability to separate rolling elements from raceways, leading to metal-to-metal contact and rapid wear. Prevention includes regular lubricant sampling and analysis, adherence to recommended relubrication intervals, and using lubricants specifically formulated for low-speed, high-load, high-temperature applications.
The table below summarizes these failure modes and their primary prevention strategies.
| Failure Mode | Primary Cause | Prevention Strategy |
|---|---|---|
| Raceway Wear | Contaminant ingress, inadequate lubrication | Robust sealing, regular relubrication |
| Gear Tooth Damage | Misalignment, insufficient lubrication | Proper alignment, gear lubrication system |
| Seal Failure | Aging, temperature exposure, physical damage | Regular inspection, timely replacement |
| Bolt Failure | Insufficient preload, vibration | Correct torque, locking mechanisms, retorquing |
| Lubricant Degradation | Oxidation, contamination, heat | Regular sampling, proper relubrication intervals |
Why Choose LDB for Your Coal Mill Slewing Bearings
For over a decade, LDB has focused on one thing: engineering and manufacturing precision slewing bearings that stand up to the toughest industrial environments. Our specialization in slewing rings for heavy equipment means we understand what coal mills demand from a bearing—and we build every product with those demands in mind.
When you work with LDB, you are not limited to standard catalog options. We specialize in fully customized slewing bearing solutions tailored to your specific mill configuration. Whether you need a particular gear profile, a specialized sealing arrangement to keep coal dust at bay, or a specific material grade to handle elevated temperatures, we design and manufacture accordingly. Our engineering team works alongside yours to ensure the bearing fits perfectly, performs reliably, and delivers the service life your operation requires. Backed by a global service network, we make sure support reaches you wherever your plant is located.
Frequently Asked Questions
Q1: What is the difference between a coal mill slewing bearing and bearings used in other industrial equipment?
A: Coal mill slewing bearings are specifically designed for continuous low-speed operation under constant heavy loads, with specialized sealing to resist fine coal dust. They must withstand high axial loads from grinding pressure and maintain stability under steady-state operation, which differs from applications involving frequent starts, stops, or directional changes.
Q2: How can I tell if my coal mill slewing bearing needs replacement?
A: Common signs include increased vibration during operation, unusual noise (grinding or clicking), elevated operating temperature, visible grease leakage or contamination, and measured increases in axial or radial play. Regular condition monitoring, including vibration analysis and lubricant sampling, helps detect problems before failure occurs.
Q3: What lubrication interval is recommended for coal mill slewing bearings?
A: Lubrication intervals depend on operating conditions, bearing type, and the lubrication system used. Automatic grease systems typically provide continuous lubrication, while manual systems may require relubrication every few hundred operating hours. Extreme conditions like high temperatures or high dust levels may require more frequent lubrication. Always follow the manufacturer’s recommendations for your specific application.
Q4: How does coal dust affect slewing bearing life, and how can it be controlled?
A: Coal dust is extremely fine and abrasive, acting like sandpaper once it enters the bearing. It accelerates raceway wear and lubricant degradation. Prevention requires effective sealing systems, often including multiple labyrinth seals and air purging to keep dust away from critical surfaces. Regular inspection and seal replacement are also essential.
Q5: Can I get a custom-designed slewing bearing for my specific coal mill?
A: Yes. Manufacturers like LDB specialize in fully customized solutions. We can tailor the bearing’s dimensions, load rating, gear configuration, sealing system, and material specifications to match your mill’s exact requirements, ensuring optimal performance and service life under your specific operating conditions.
