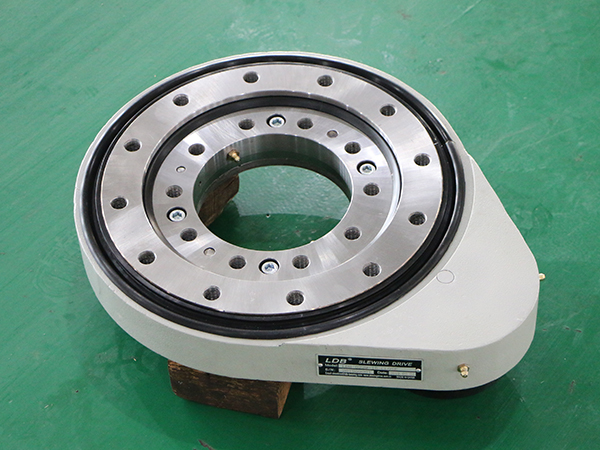

Spur Gear Slewing Drive

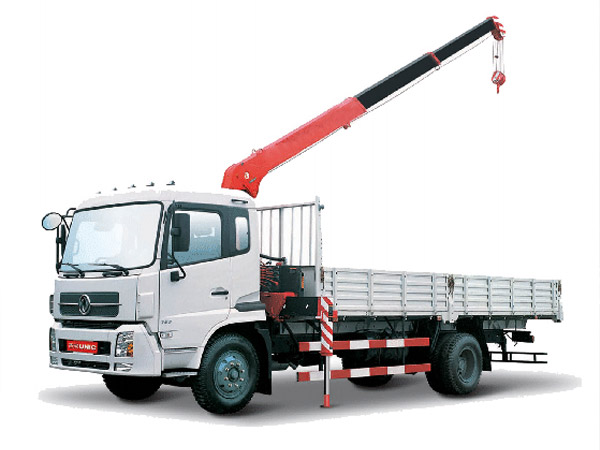

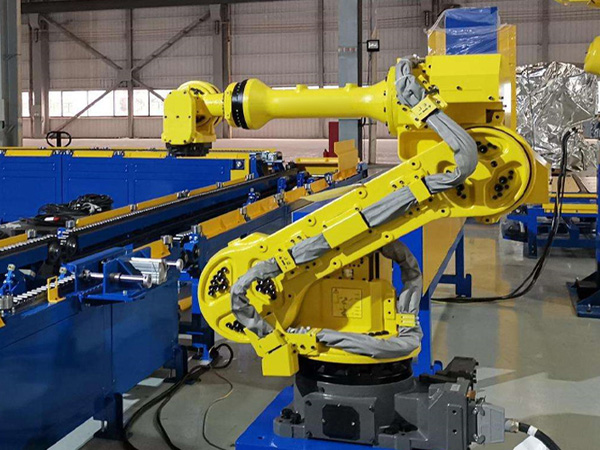

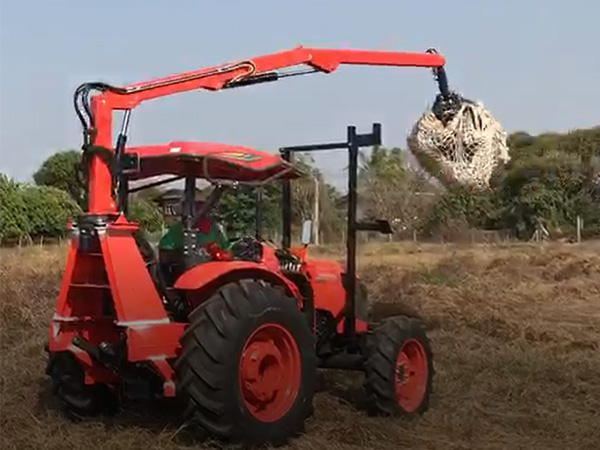

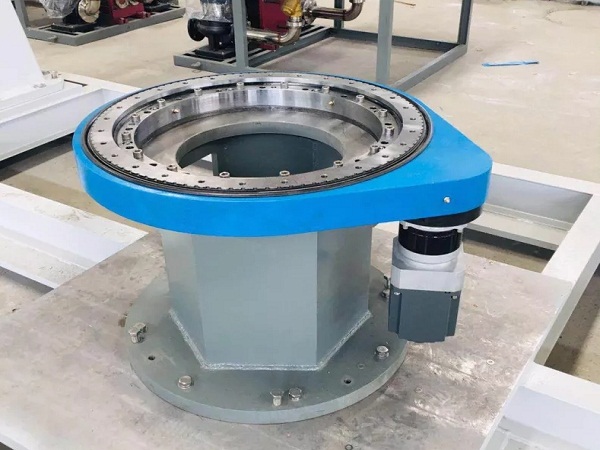

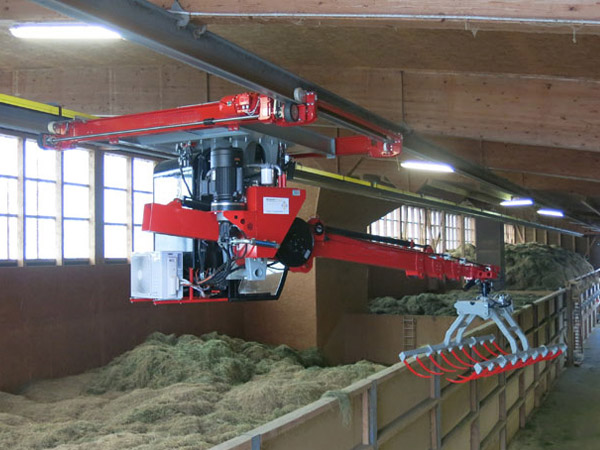

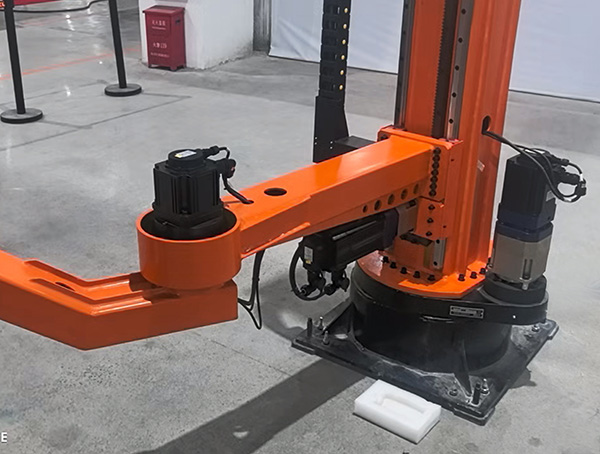

Spur gear slewing drive is also called gear slewing reducer. This device is a new type of slewing product, which is generally composed of pinion gears, turntable bearings, shells, motors, or motors. As the core component adopts slewing bearing, it can bear axial force, radial force and overturning moment. Compared with traditional rotary products, this product has the characteristics of high integration, easy installation, high transmission accuracy, high output speed, excellent protection performance (dustproof and waterproof), easy maintenance, and long service life. It is widely used in robot bases. , Machine tool rotary table, automatic welding equipment, automatic painting equipment, flexible bending machine, wood grabbing machinery, cranes and other fields. At present, the product designed and produced by our company is mainly divided into three series: light load, medium load and heavy load. The product can be customized according to the actual situation of the host.


Bearing option, life calculation, product upgrade, new product development
Spur Gear Drive Design Customization

01

Understand customer’s needs

02

Design drawings

03

Signing the contract

Production and delivery

05

After-sales warranty

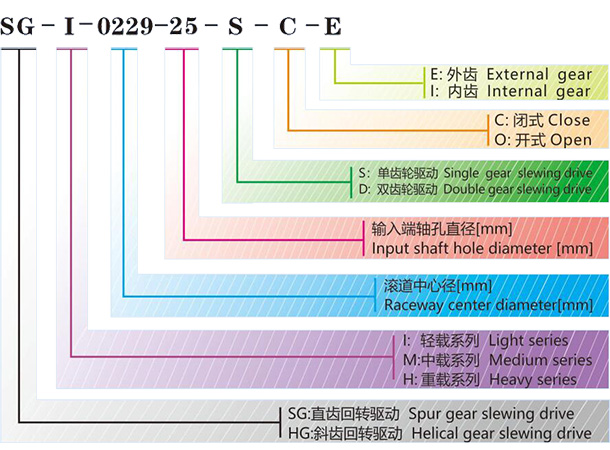

Code Description and Article

Code Description

Code Description

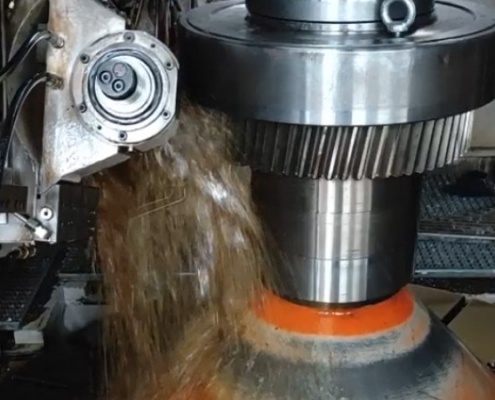

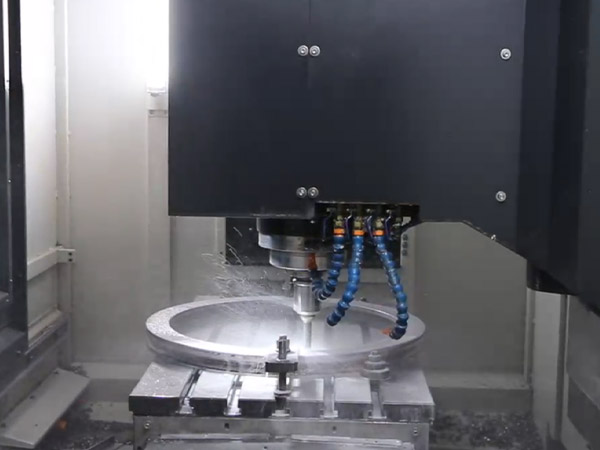

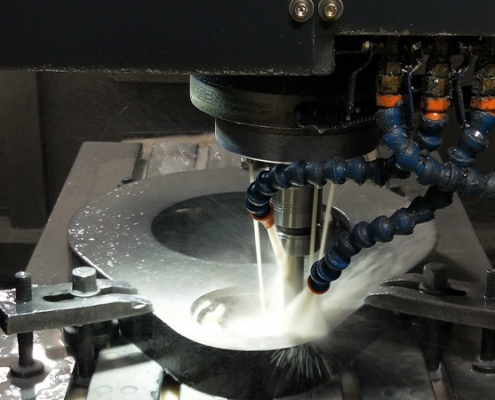

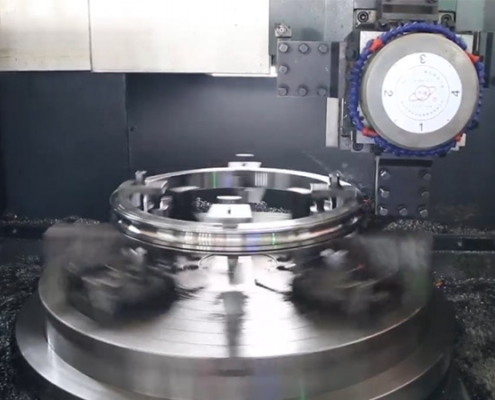

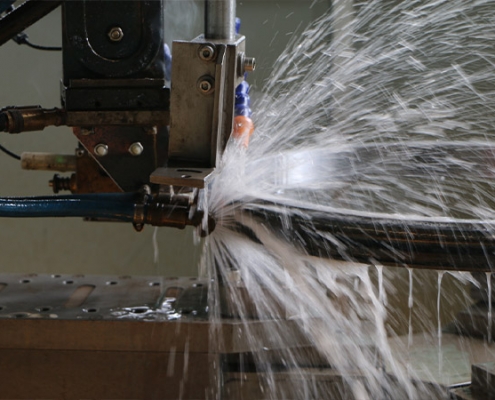

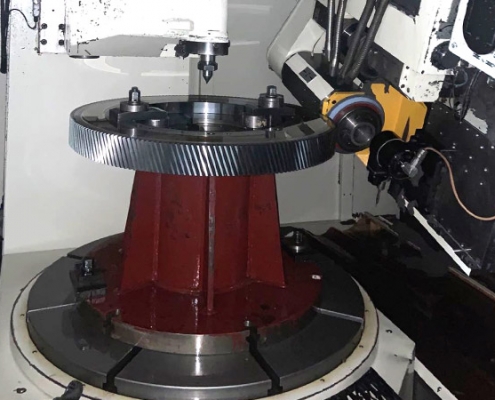

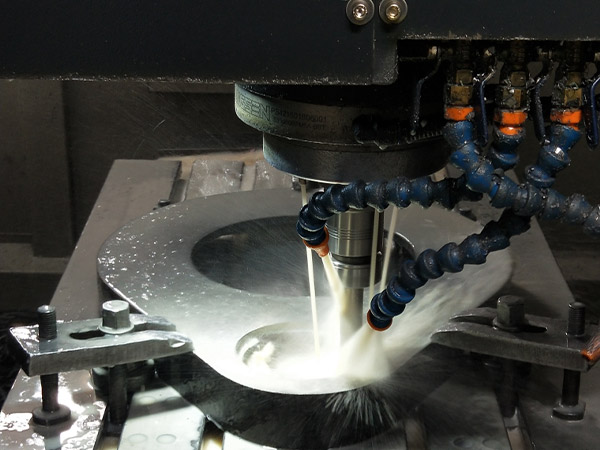

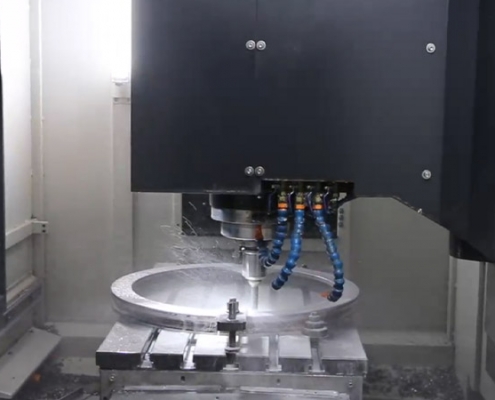

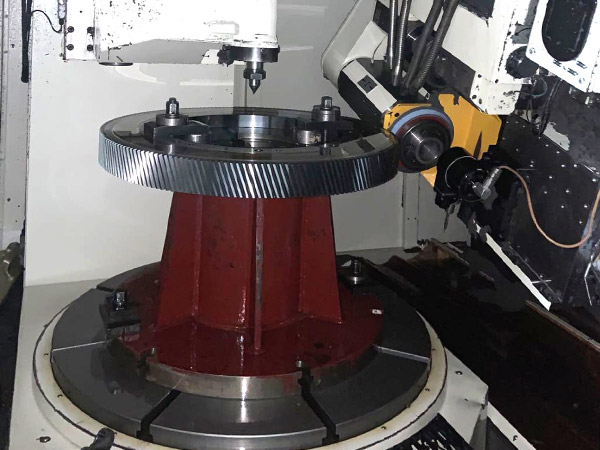

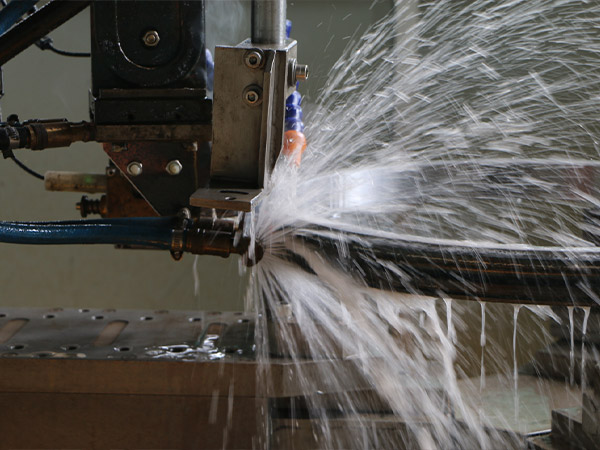

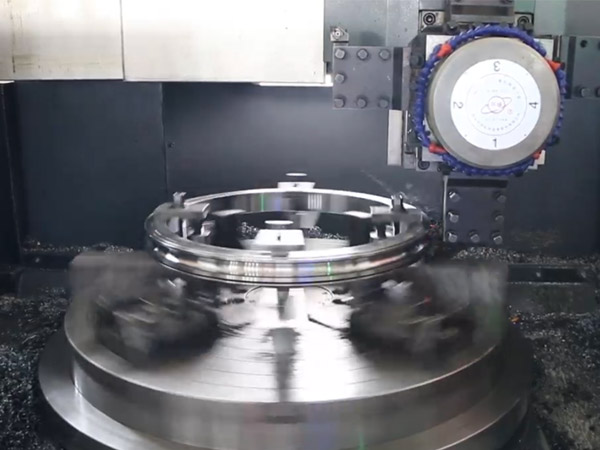

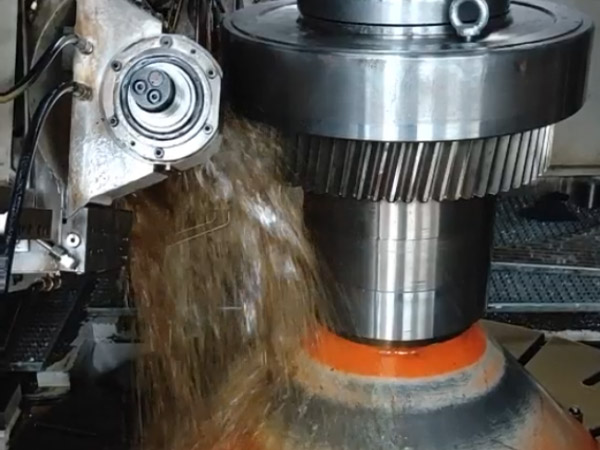

Manufacturing Processes

Straight tooth drive features

  • It replaces the structure of the toothed turntable and the pinion, the compact design can effectively save the installation space, and it is easy to integrate into the existing application unit;
  • High transmission efficiency and fast speed;
  • Can withstand axial, radial and overturning moments;
  • The full protection design can effectively extend the service life, reduce the maintenance cost, and improve the safety of the operators. The protection level reaches IP65;
  • The appearance is clean and tidy;
  • According to different working conditions, there are three series to choose from, and can be customized quickly.
