What Is a Slewing Bearing for Excavators?
If you have ever watched an excavator in action, you have likely marveled at its ability to dig, lift, and swing smoothly from side to side. That seemingly effortless 360-degree rotation is made possible by a single critical component: the slewing bearing. Often called the “waist” or “hip” of the excavator, this large-scale bearing connects the upper structure—where the operator cab, boom, and arm are located—to the undercarriage with its tracks or wheels, and understanding how it works is essential for anyone involved in equipment operation, maintenance, or manufacturing.
What Is a Slewing Bearing for Excavators?

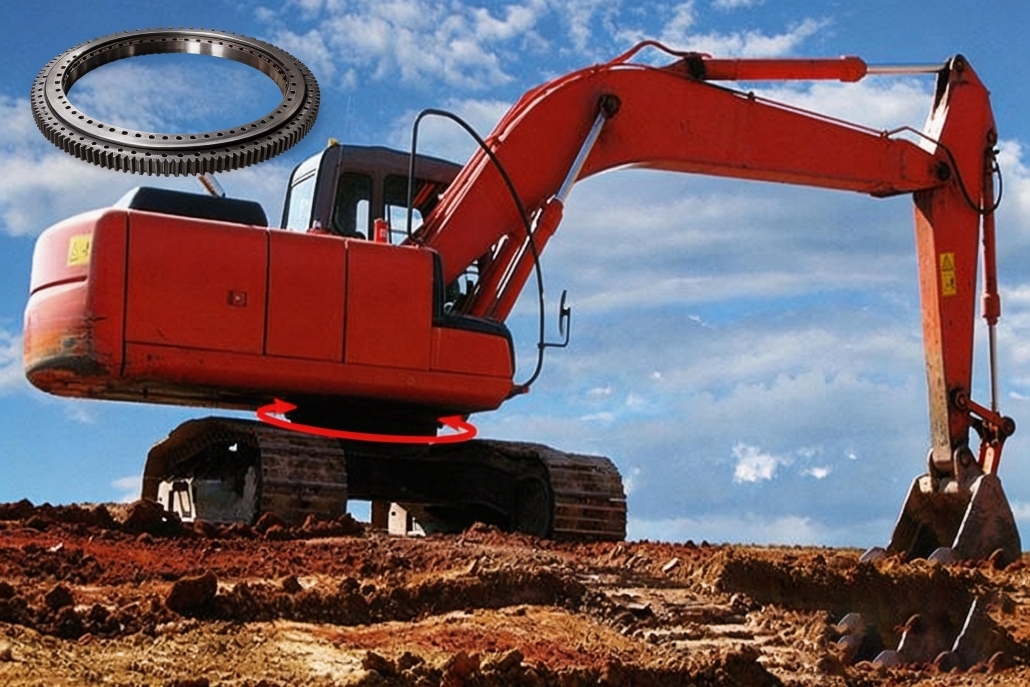

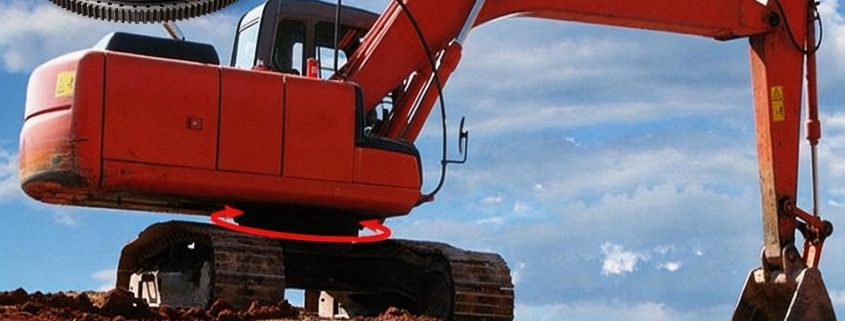

A slewing bearing, also known as a slewing ring, is a large rolling-element bearing designed to handle complex load conditions while enabling rotational movement. In an excavator, it is installed between the upper revolving frame and the lower carriage. Its primary role is threefold: it connects the two main parts of the machine, supports all the loads generated during operation, and allows the upper structure to rotate smoothly relative to the undercarriage.
Structurally, a typical excavator slewing bearing consists of an inner ring, an outer ring, rolling elements (steel balls or cylindrical rollers), spacers or cages, seals, and mounting holes. One of the rings usually features internal or external gear teeth that engage with the swing drive motor’s pinion gear. This integrated design makes the slewing bearing not just a bearing but also a critical transmission component.
How Does a Slewing Bearing Work in an Excavator?
The operation of a slewing bearing is both simple in concept and sophisticated in execution. When the excavator operator moves the joystick to swing the machine, hydraulic fluid flows to the swing motor, which turns a small pinion gear. This pinion gear meshes with the gear teeth on the slewing bearing’s ring, causing the entire upper structure to rotate.
During this movement, the rolling elements inside the bearing—whether balls or rollers—travel along precision-ground raceways. They distribute the enormous loads from the upper structure evenly across the bearing, transferring those forces to the undercarriage. The bearing must simultaneously manage three types of forces: axial load (the vertical weight of the upper structure and the digging forces), radial load (horizontal forces from the boom and arm), and overturning moment (the tilting force that occurs when the excavator lifts a heavy load at full reach).
All of this happens while the bearing maintains smooth, low-friction motion. The swing drive system works in coordination with the hydraulic system to provide precise control, allowing operators to swing smoothly even when handling heavy loads or working on uneven ground.
Key Features of Excavator Slewing Bearings
Excavator slewing bearings are engineered specifically for the demanding conditions of construction, mining, and earthmoving. Several distinctive features set them apart from ordinary bearings.
High Load-Carrying Capacity is the most obvious feature. These bearings are designed to support heavy axial and radial loads while resisting significant overturning moments, all within a compact form factor. The rolling elements and raceways are optimized to distribute stress evenly, preventing premature failure.
Structural Integration is another key characteristic. Unlike a simple bearing that only facilitates rotation, a slewing bearing also serves as a structural connector and, when geared, as a drive component. This integration simplifies the excavator’s overall design and reduces the number of individual parts required.
Large Scale and High Precision define these components. Excavator slewing bearings can range from less than half a meter to several meters in diameter. Despite their size, they require extremely tight manufacturing tolerances. The raceways must be round within fractions of a millimeter, and the gear teeth must maintain precise alignment to ensure smooth engagement with the swing drive.
Durability in Harsh Environments is essential. Excavators operate in conditions filled with mud, dust, water, and extreme temperatures. High-quality slewing bearings incorporate heavy-duty seals that keep contaminants out and retain lubricant inside. These seals are designed to withstand constant movement and exposure without degrading quickly.
Ease of Installation and Maintenance is also a consideration. Standardized mounting holes on both rings allow for straightforward bolting to the upper frame and undercarriage. This design makes replacement possible in the field when necessary, minimizing equipment downtime.
Advantages of High-Quality Slewing Bearings
Choosing a high-quality slewing bearing—especially one from a specialized manufacturer—delivers benefits that extend far beyond the component itself. These advantages impact the entire machine’s performance, operating costs, and safety.
Extended Equipment Lifespan is one of the most significant benefits. A reliable slewing bearing prevents premature failures that can take an entire excavator out of service. Because the bearing connects the two main sections of the machine, a failure here often means major disassembly and extended downtime. Quality bearings reduce that risk substantially.
Lower Operating Costs result from longer maintenance intervals and reduced replacement frequency. High-grade materials, precision manufacturing, and effective sealing all contribute to a bearing that lasts longer under demanding conditions. Over the life of an excavator, this translates into measurable savings in parts, labor, and lost productivity.
Smoother Operation and Better Control come from a bearing with properly finished raceways and correctly matched clearances. Operators notice the difference in how precisely they can position the bucket and how stable the machine feels during complex maneuvers. This improved control also enhances safety on job sites.
Safety Margins are built into well-designed slewing bearings. Through appropriate material selection, correct heat treatment, and conservative load ratings, quality bearings provide a safety factor that protects against unexpected overloads or extreme operating conditions. This margin is especially critical in mining and heavy construction applications where loads can be unpredictable.
Customization Capabilities offered by professional manufacturers allow excavator producers to optimize the bearing for specific models. Rather than settling for a standard off-the-shelf solution, manufacturers can specify the exact diameter, load rating, gear configuration, seal type, and even integrated features such as condition monitoring sensors.
Types of Slewing Bearings Used in Excavators
Different excavator sizes and applications require different types of slewing bearings. The choice depends primarily on the machine’s operating weight, the expected load spectrum, and the specific demands of the application. The table below summarizes the most common types.
| Type | Structure | Typical Excavator Size | Key Characteristics |
|---|---|---|---|
| Single-Row Ball Slewing Bearing | One row of steel balls with four-point contact | Small excavators (1.5–15 tons) | Compact design, cost-effective, suitable for light to medium loads |
| Double-Row Ball Slewing Bearing | Two rows of balls arranged at different diameters | Medium excavators (15–35 tons) | Higher load capacity than single-row, good balance of performance and cost |
| Three-Row Roller Slewing Bearing | Three independent raceways: one for axial loads, two for radial loads | Large excavators (35+ tons), mining excavators | Highest load capacity, separate load paths for different forces, maximum durability |
In addition to these structural types, slewing bearings are also classified by gear configuration. Internal gear bearings have teeth on the inner ring and are commonly used when the swing drive motor is mounted on the upper structure. External gear bearings have teeth on the outer ring and offer different packaging options. Gearless bearings are used in applications where rotation is driven through other means, though this is less common in excavators.
| Gear Type | Description | Typical Application |
|---|---|---|
| Internal Gear | Teeth cut on inner ring, drive motor mounted on upper structure | Standard excavator configuration |
| External Gear | Teeth cut on outer ring, alternative drive layout | Specialized or compact designs |
| Gearless | No teeth, rotation provided by other mechanisms | Rare in excavators, used in specialized equipment |
Key Considerations When Selecting or Manufacturing Excavator Slewing Bearings
Selecting the right slewing bearing—or manufacturing one to exact specifications—requires careful attention to multiple technical factors. Each of these elements influences the bearing’s performance, reliability, and service life.
Load Calculation is the starting point. The bearing must be sized to handle the maximum axial load, radial load, and overturning moment the excavator will encounter during operation. This requires analyzing the machine’s operating weight, boom geometry, bucket capacity, and typical working conditions. Professional manufacturers use specialized software to perform these calculations and recommend the appropriate bearing type and size.
Material Selection directly affects strength and durability. High-quality slewing bearings are typically made from forged or rolled alloy steels such as 50Mn or 42CrMo. These materials offer the right combination of strength, toughness, and response to heat treatment. The choice of material also influences the bearing’s resistance to impact loads and fatigue.
Heat Treatment determines the hardness and wear resistance of the raceways and gear teeth. Induction hardening is commonly used to create a hard surface layer while maintaining a tough, ductile core. The depth and pattern of hardening must be precisely controlled to prevent cracking while ensuring long-term wear resistance. Gear teeth also require selective hardening to withstand the repeated engagement with the drive pinion.
Manufacturing Precision encompasses several critical dimensions. Raceway roundness affects how smoothly the rolling elements travel and how evenly loads are distributed. Gear tooth accuracy determines engagement quality with the pinion, affecting noise levels and wear rates. Mounting hole positions must be accurate to ensure proper alignment with the excavator’s upper and lower structures. High-precision manufacturing reduces assembly challenges and extends bearing life.
Sealing and Lubrication play crucial roles in real-world performance. Effective seals keep abrasive dust and water out of the bearing interior while retaining grease. Many modern excavator bearings incorporate multiple lip seals designed specifically for the demanding conditions of construction sites. Proper lubrication pathways ensure that grease reaches all rolling elements and raceways during routine maintenance.
Quality Control Throughout Production is essential for delivering reliable products. Reputable manufacturers perform multiple inspections at each stage, including raw material verification, ultrasonic testing for internal defects, magnetic particle inspection for surface cracks, hardness profiling, and final assembly clearance measurements. These checks ensure that every bearing leaving the factory meets the specified requirements.
LDB: High-Quality Excavator Slewing Bearings Manufacturer
LDB Slewing Bearing is an enterprise specializing in the design, development, manufacture, and sales of precision slewing bearings and precision slewing drives. As a professional supplier, we provide high-performance small and large slewing rings, with particular expertise in delivering reliable slewing bearing solutions for excavator applications across different tonnage classes.
Unlike conventional suppliers who offer only standardized products, LDB delivers fully tailored slewing bearing solutions designed to meet your specific excavator requirements. From bearing type selection and gear configuration to material grade and heat treatment specifications, we can customize every aspect of the bearing to match your equipment’s unique design and operating conditions. Our comprehensive range of expert slewing bearing services helps customers reduce costs and optimize performance, while our global presence ensures that solutions and support can be delivered quickly to customers around the world.
Frequently Asked Questions
Q1: What is a slewing bearing and why is it critical for excavators?
A: A slewing bearing is a large rolling bearing that connects the upper structure of an excavator to its undercarriage. It supports axial loads, radial loads, and overturning moments while enabling 360-degree rotation. Without it, the excavator cannot swing or perform digging operations effectively.
Q2: What types of slewing bearings are commonly used in excavators?
A: The most common types are single-row ball bearings for small excavators up to 15 tons, double-row ball bearings for medium excavators from 15 to 35 tons, and three-row roller bearings for large excavators above 35 tons and heavy mining applications. The choice depends on the machine’s operating weight and load requirements.
Q3: How do I select the right slewing bearing for my excavator model?
A: Key factors include the excavator’s operating weight, working radius, load spectrum, and interface dimensions. Professional manufacturers perform load calculations to recommend the optimal bearing type, gear configuration, material grade, and heat treatment specifications based on your specific requirements.
Q4: What affects the service life of an excavator slewing bearing?
A: Service life is influenced by material quality, heat treatment (hardness and depth of the hardened layer), manufacturing precision, proper lubrication, effective sealing, and correct installation. Regular maintenance, including timely grease replenishment and bolt torque checks, also plays a critical role.
Q5: Can I get a custom-designed slewing bearing for my excavator?
A: Yes. Manufacturers like LDB specialize in fully customized solutions. We can tailor the bearing’s dimensions, load rating, gear configuration, sealing system, and even integrate advanced features such as condition monitoring sensors to meet your exact equipment specifications and operating conditions.
