How to Choose High-Quality Slewing Bearings for Your Laser Pipe Cutting Machine？

In the world of laser pipe cutting, precision is everything. Every cut must be exact, every angle perfect, and every movement smooth. At the heart of this precision lies a component that many operators take for granted: the slewing bearing. This critical part enables the rotational movement that allows laser cutters to process pipes from every angle, making it essential to the quality of your final product.

Choosing the right slewing bearing for your laser pipe cutting machine is not just a purchasing decision—it is an investment in your equipment’s performance, longevity, and reliability. This comprehensive guide will walk you through everything you need to know about selecting high-quality slewing bearings for your specific application.

What is a Slewing Bearing?

A slewing bearing, also known as a slewing ring or turntable bearing, is a rotational rolling-element bearing that typically supports heavy but slow-turning or slowly-oscillating loads. Unlike standard bearings that primarily handle radial loads, slewing bearings are engineered to simultaneously accommodate axial loads, radial loads, and moment loads—the complex combination of forces that occurs when heavy equipment rotates.

Think of a slewing bearing as a heavy-duty “lazy Susan” mechanism, but engineered to industrial standards. It consists of several key components:

Inner and outer rings with integrated mounting holes
Rolling elements (balls or rollers) arranged in raceways
Cage or spacer to maintain proper spacing between rolling elements
Sealing devices to protect against contamination
Optional gear teeth on the inner or outer ring for direct drive integration

What makes slewing bearings unique is their ability to handle multi-directional forces while maintaining precise rotation. They are the component that allows the upper structure of an excavator to swing, a crane to rotate, or a wind turbine to face the wind.

What is a Slewing Bearing for Laser Pipe Cutting Machine?

A slewing bearing for a laser pipe cutting machine is a specialized rotational component that serves as the “rotating waist” of the cutting system. While it shares the basic design principles of other slewing bearings, its application in laser cutting creates unique requirements.

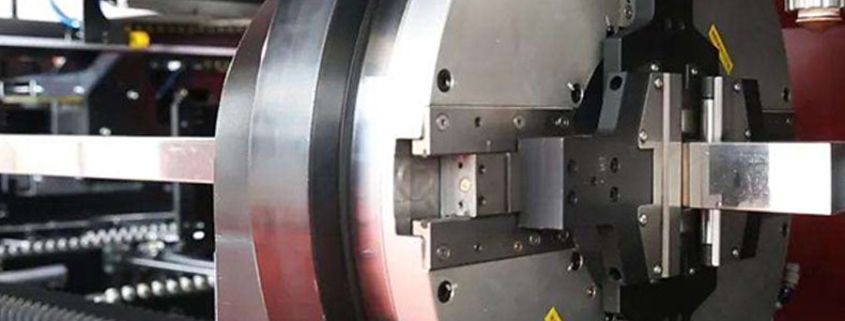

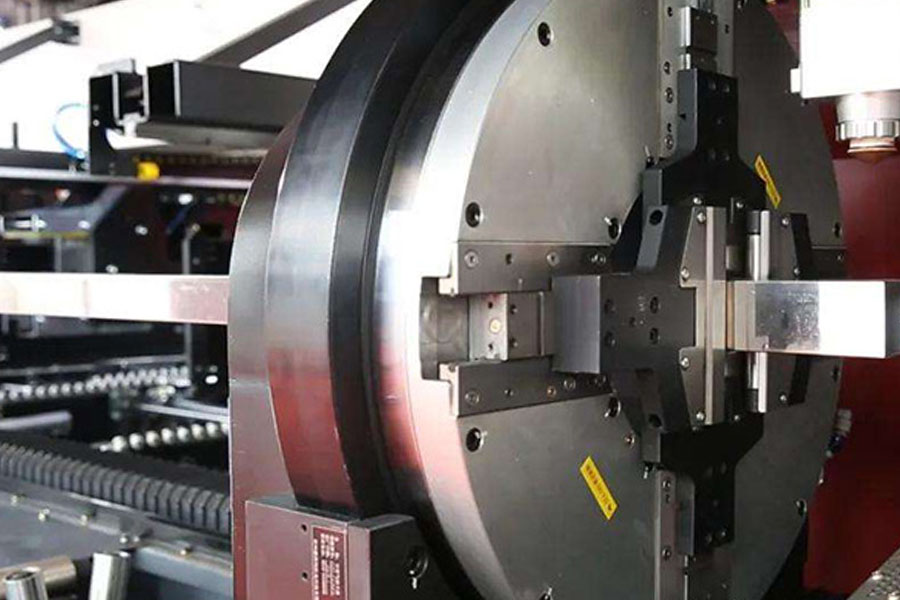

In a typical laser pipe cutting machine configuration, the slewing bearing is mounted on an installation plate that features a pipe through-hole. The bearing consists of a fixed inner ring and a rotating outer ring with gear teeth. The pipe being cut passes through the center of the bearing, while the laser cutting head or a rotating clamping system attaches to the rotating outer ring.

This configuration serves several critical functions:

Precise Pipe Rotation: The bearing enables controlled 360-degree rotation of the pipe, allowing the laser to make cuts at any angle without repositioning the material.

Stable Support: It provides rigid support for heavy pipe sections, preventing sagging or vibration during the cutting process.

Drive Integration: The gear teeth on the outer ring (or sometimes the inner ring) engage with a drive pinion connected to a servo motor, enabling precise computer-controlled positioning.

Through-Bore Design: The large central opening allows pipes of varying diameters to pass through, with the bearing size selected based on the maximum pipe diameter the machine can process.

Unlike slewing bearings used in excavators or cranes—which prioritize raw load capacity above all else—laser pipe cutting bearings must balance load capacity with exceptional rotational accuracy and smoothness. Even minor imperfections in rotation can translate directly into cut quality defects.

How Does a Slewing Bearing Work in a Laser Pipe Cutting Machine?

Understanding the working principle of a slewing bearing in a laser pipe cutting machine helps explain why selection is so critical. The operation follows a precise sequence:

The Drive System

A servo motor mounted to the machine frame connects to a small drive pinion gear. This pinion meshes with the gear teeth cut into the outer ring of the slewing bearing. When the motor rotates, it drives the pinion, which in turn rotates the bearing’s outer ring.

The Rotating Platform

The outer ring of the bearing connects to either the pipe clamping system or the laser cutting head assembly, depending on the machine design. In a common configuration, the pipe is held by chucks or clamps that are mounted on the rotating bearing. As the bearing rotates, the pipe rotates with it, presenting its entire circumference to the stationary laser head.

The Fixed Reference

The inner ring of the bearing remains bolted to the machine frame, providing a stable reference point. This separation of rotating and stationary elements allows for clean integration of utilities—cables for sensors, coolant lines, or compressed air can pass through the center of the bearing without twisting.

Load Management

During operation, the bearing simultaneously manages multiple forces:

Axial loads from the weight of the pipe and clamping system
Radial loads from any misalignment or drive forces
Moment loads (tilting forces) as long pipe sections extend from the chuck

The bearing’s internal geometry—the arrangement of balls or rollers and the curvature of the raceways—distributes these forces evenly, maintaining smooth rotation even under heavy or uneven loading.

Precision Positioning

Modern laser pipe cutting machines operate under CNC control, with positioning accuracy measured in hundredths of a millimeter. The slewing bearing must respond instantly to drive commands, with zero backlash or hesitation. This requires precise gear tooth geometry, proper preload adjustment, and minimal internal clearance.

Key Features of a High-Quality Slewing Bearing for Laser Pipe Cutting Applications

Not all slewing bearings are created equal. For laser pipe cutting applications, several specific features distinguish high-quality components from standard industrial bearings.

Material Quality and Heat Treatment

High-quality slewing bearings begin with premium materials. The rings should be forged from high-carbon chromium steel or alloy steel (such as 42CrMo or 50Mn), materials known for their exceptional strength-to-weight ratio and fatigue resistance.

Equally important is proper heat treatment. The raceways should be induction-hardened to achieve a surface hardness of 55-62 HRC, with sufficient case depth to withstand repeated rolling contact. This hardening extends to the gear teeth, which must resist wear from continuous meshing with the drive pinion.

Precision-Grade Rolling Elements

The balls or rollers within the bearing determine its load capacity and rotational smoothness. High-quality bearings use rolling elements manufactured to Grade G3-G10 tolerances (where lower numbers indicate higher precision). These elements should be made from the same high-grade materials as the rings and heat-treated to matching hardness levels.

Raceway Geometry

The shape and finish of the raceways dramatically affect bearing performance. Precision-ground raceways with optimized curvature ensure proper load distribution and minimal friction. For laser cutting applications, raceway roundness and surface finish should meet the highest achievable standards.

Effective Sealing Systems

Laser pipe cutting generates fine metal dust and particulates that can destroy a bearing if they penetrate the raceways. High-quality bearings feature advanced sealing systems—often multiple lips or labyrinth designs—that prevent contamination while retaining lubrication. For particularly harsh environments, flinger seals that rotate with the bearing can provide additional protection.

Gear Quality

If the bearing incorporates an integrated gear, the gear teeth must be cut to precision standards. The tooth profile—typically 20° pressure angle involute—should be consistent around the entire circumference. Induction hardening of the tooth flanks prevents premature wear while maintaining core toughness. A full root radius with root hardening reduces stress concentration points.

Mounting Surface Preparation

The bearing’s mounting surfaces must be machined flat and parallel, with precise control over flatness. It is recommended that the installation plane flatness be controlled within specific ranges to prevent bearing distortion after bolt tightening. Any deviation can cause uneven load distribution and premature failure.

Clearance and Preload Control

For precision applications like laser cutting, internal clearance must be carefully controlled. Some applications benefit from slight preload (negative clearance) to increase stiffness and eliminate play. High-quality manufacturers can supply bearings with custom clearance settings matched to your specific application requirements.

Advantages of Using a High-Precision Slewing Bearing in Laser Pipe Cutting Machine

Investing in a high-quality, precision slewing bearing delivers tangible benefits that affect every aspect of your cutting operations.

Superior Cut Quality

The most immediate advantage is improved cut quality. A precision bearing rotates smoothly and consistently, without the minute hesitations or irregularities that can leave marks on cut edges. For applications requiring tight tolerances or cosmetic finishes, this consistency is essential.

Reduced Scrap Rates

When the bearing maintains precise positioning, first-pass success rates increase. Fewer parts need rework or scrapping due to positioning errors, saving material costs and production time.

Longer Equipment Life

Quality bearings distribute loads evenly across their internal components, reducing localized stress and wear. With proper maintenance, a premium bearing can outlast multiple standard bearings, reducing the frequency of costly replacements.

Lower Operating Costs

While precision bearings carry a higher initial price, they typically reduce overall operating costs through:

Less frequent replacement
Reduced maintenance downtime
Lower power consumption due to reduced friction
Fewer rejected parts

Improved Process Reliability

A reliable bearing performs consistently day after day. This predictability allows you to run production with confidence, schedule maintenance proactively, and avoid unexpected breakdowns that disrupt customer deliveries.

Higher Rotational Speeds

Precision bearings with optimized internal geometry and balanced components can operate at higher rotational speeds without overheating or vibrating. This capability enables faster cutting cycles and higher throughput.

Better Backlash Control

For machines with integrated gearing, precision bearings maintain consistent gear mesh and backlash over time. This stability ensures that positioning accuracy does not degrade as the machine ages, extending the period between recalibrations.

How to Choose the Right Slewing Bearing for Your Laser Pipe Cutting Machine

Selecting the optimal slewing bearing requires careful consideration of multiple factors. Follow this step-by-step guide to make an informed decision.

Step 1: Define Your Application Requirements

Begin by thoroughly documenting what your application demands. Consider:

Load requirements: Calculate all forces acting on the bearing—axial loads from pipe weight and clamping, radial loads from drive forces, and moment loads from overhanging pipe sections. Include dynamic loads during acceleration and deceleration, as well as any extreme loads that might occur during unusual operating conditions.

Speed requirements: Determine the maximum rotational speed required for your cutting cycles. Most laser pipe cutting operates at relatively low speeds (1-10 RPM), but acceleration rates may be high.

Accuracy requirements: Define the rotational precision needed to achieve your cut quality targets. This includes allowable runout, positioning repeatability, and backlash.

Environmental factors: Consider the operating environment—temperature range, humidity, dust levels, and any corrosive elements present.

Pipe size range: The bearing’s inner diameter must accommodate your largest pipe, with adequate clearance.

Step 2: Calculate and Apply Service Factors

Once you have determined maximum loads, multiply them by appropriate service factors to account for real-world operating conditions. Service factors typically range from 1.0 to 1.5 or higher, depending on:

Frequency of use at maximum loads
Potential for impact or shock loads
Duty cycle characteristics
Safety requirements

For laser pipe cutting applications, consider factors for:

Continuous operation vs. intermittent use
Acceleration forces during rapid positioning
Vibration from cutting processes
Potential for operator error or overload

Step 3: Select Bearing Type

Based on your load calculations and accuracy requirements, choose the appropriate bearing configuration:

Bearing Type	Load Capacity	Precision	Best Application
Single Row Ball	Moderate	Good	Light to medium-duty cutting, smaller pipes
Double Row Ball	High	Very Good	General-purpose cutting, medium to large pipes
Cross Roller	Very High	Excellent	High-precision cutting, heavy pipes
Four-Point Contact Ball	High	Very Good	Multidirectional loads, versatile applications

Single row ball bearings offer a good balance of cost and performance for lighter applications. They provide smooth rotation with minimal friction but have lower load capacity than roller types.

Double row ball bearings distribute loads across two raceways, increasing capacity and rigidity. They are well-suited for general-purpose pipe cutting where loads are moderate but consistent.

Cross roller bearings use cylindrical rollers arranged in alternating directions, providing exceptional rigidity and accuracy. For high-precision cutting applications where minimal deflection is critical, these are often the best choice.

Four-point contact ball bearings can handle loads from multiple directions efficiently, making them versatile for applications where load directions vary.

Step 4: Determine Gear Requirements

If your application requires an integrated gear, specify:

Gear location: Inner or outer ring? The choice affects drive system layout and machine design.

Gear teeth: Specify module (or pitch), number of teeth, pressure angle (typically 20°), and quality grade. Consider whether teeth should be induction-hardened for wear resistance.

Backlash requirements: Define acceptable backlash range based on your positioning accuracy needs. Some applications require minimal backlash for precision; others can accommodate standard clearances.

Step 5: Consider Sealing and Lubrication

For laser pipe cutting environments, sealing is critical. Evaluate:

Seal type: Single lip, multiple lip, or labyrinth seals? Flinger seals offer enhanced protection in dirty environments.

Lubrication method: Manual grease fittings, central lubrication systems, or lifetime-lubricated sealed bearings? Consider accessibility for maintenance.

Lubricant specifications: Grease type, viscosity, operating temperature range, and food-grade requirements if applicable.

Step 6: Verify Mounting Interface

Ensure the bearing’s mounting hole pattern, pilot diameters, and overall dimensions match your machine design. Consider:

Bolt circle diameter and hole size
Pilot diameter tolerance
Mounting surface flatness requirements
Access for bolt tightening

Step 7: Consult with Manufacturers

Before finalizing your selection, consult with experienced bearing manufacturers. Provide them with your complete application data and allow them to verify your calculations. Manufacturers can often suggest optimizations or alternatives that better suit your specific needs.

LDB: Premium Manufacturer of Customized Slewing Bearings

When your laser pipe cutting machine demands precision that standard components cannot deliver, LDB Slewing Bearing provides the engineered solution. We specialize in the design, development, manufacture, and sales of precision slewing bearings and slewing drives for applications where accuracy and reliability are non-negotiable.

Unlike conventional bearing suppliers, LDB offers fully tailored slewing bearing solutions that integrate advanced monitoring, lubrication, and sealing systems. Whether you need four-point contact ball bearings, cross roller bearings, or double row ball bearings—with or without integrated gearing—our engineering team works closely with you to develop components that deliver higher reliability and extended service life in your specific operating environment. Every bearing meets or exceeds ISO standards, with comprehensive quality inspection before shipment and a 12-month warranty for complete peace of mind.

Our expertise extends beyond manufacturing to encompass a wide range of specialized services that help customers optimize performance while reducing costs. From technical installation consulting to ongoing performance monitoring, LDB supports your operations throughout the entire bearing lifecycle. With a global presence that enables rapid delivery worldwide, we combine Chinese manufacturing excellence with international service capability—ensuring that wherever your laser pipe cutting machines operate, LDB precision bearings keep them running at peak performance.

FAQ About Laser Pipe Cutting Machine Slewing Bearings

Q1: How often should I lubricate the slewing bearing on my laser pipe cutter?

A: Lubrication frequency depends on operating conditions, duty cycle, and environmental factors. As a general guideline, bearings in continuous operation should be lubricated every 100 operating hours or weekly, whichever comes first. Harsh environments with metal dust may require more frequent lubrication. Always follow the manufacturer’s recommendations and use the specified grease type.

Q2: What are the warning signs of slewing bearing failure?

A: Common indicators include:

Unusual noises during rotation (grinding, clicking, or rough sounds)
Increased vibration or rough operation
Visible play or movement between rotating and stationary parts
Increased power consumption or drive motor strain
Metal particles in drained grease
Irregular or jerky rotation

If you notice any of these signs, inspect the bearing promptly to prevent catastrophic failure.

Q3: Can I replace just the gear if it wears out?

A: In most slewing bearings, the gear is an integral part of the ring and cannot be replaced separately. When gear teeth wear beyond acceptable limits, the entire bearing typically requires replacement. This makes proper initial selection and maintenance even more critical. Some manufacturers offer bearings with replaceable gear rings, but this is not standard.

Q4: What is the typical lifespan of a slewing bearing in laser pipe cutting?

A: With proper selection, installation, and maintenance, a high-quality slewing bearing can last 5-10 years or more in laser pipe cutting applications. Actual lifespan depends heavily on duty cycle, loads, maintenance practices, and operating environment. Many manufacturers provide calculated L10 life (the life that 90% of bearings will achieve) based on your specific load data.

Q5: How important is mounting surface flatness?

A: Mounting surface flatness is critical. Even minor deviations can distort the bearing raceways, leading to uneven load distribution, increased friction, accelerated wear, and premature failure. It is recommended to check mounting surface flatness with a feeler gauge during installation and correct any gaps exceeding manufacturer specifications.

Q6: Can I use a standard excavator slewing bearing in a laser pipe cutter?

A: While technically possible, it is not recommended. Excavator bearings are designed primarily for raw load capacity and durability in dirty environments, with less emphasis on rotational precision. Laser cutting requires the smooth, accurate rotation that precision-graded bearings provide. Using an excavator bearing would likely result in poor cut quality and positioning accuracy.

Q7: What bolt tightening procedure should I follow?

A: Always follow the manufacturer’s specifications for bolt grade, torque values, and tightening sequence. Typically, bolts should be tightened in a star-shaped cross pattern to ensure even compression. The pre-tightening force should reach approximately 70% of the bolt material’s yield limit. Use quenched and tempered flat washers—never spring washers.

Q8: How do I store a spare slewing bearing?

A: Store bearings in a clean, dry environment with stable temperature. Keep them in their original packaging until ready for installation. If storage exceeds six months, consider rotating the bearing periodically to prevent false brinelling (surface damage from vibration at standstill). Maintain rotation every 3-4 months.
