What is a Slewing Bearing and How Does It Work?

In the world of heavy machinery and large-scale industrial engineering, few components are as vital—yet frequently overlooked—as the slewing bearing. Often referred to as a turntable bearing or slew ring, this specialized mechanical component is engineered to support heavy axial loads, radial loads, and overturning moments simultaneously. Whether a massive tower crane is lifting tons of steel on a construction site or an excavator cab is rotating continuously under harsh impact conditions, the slewing bearing serves as the foundational joint that makes smooth, 360-degree rotation possible.

Understanding what a slewing bearing is and how it operates is essential for mechanical engineers, equipment designers, and procurement professionals alike. By mastering the core mechanics of these components, industries can optimize equipment performance, reduce operational friction, and extend the lifespan of heavy-duty machinery. This article will break down the fundamental structure, working principles, key advantages, and application scope of slewing bearings, providing a comprehensive guide for modern engineering applications.

Core Structure of a Slewing Bearing

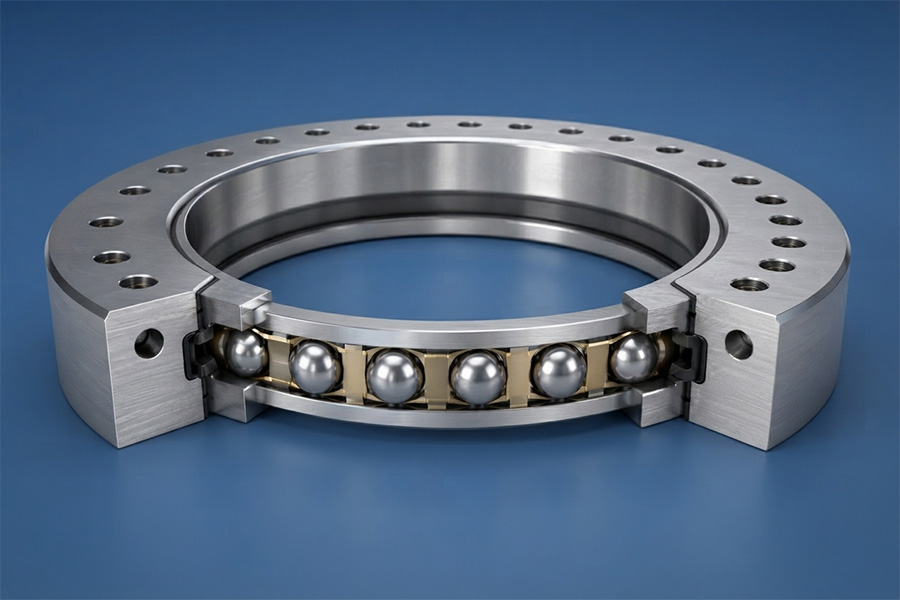

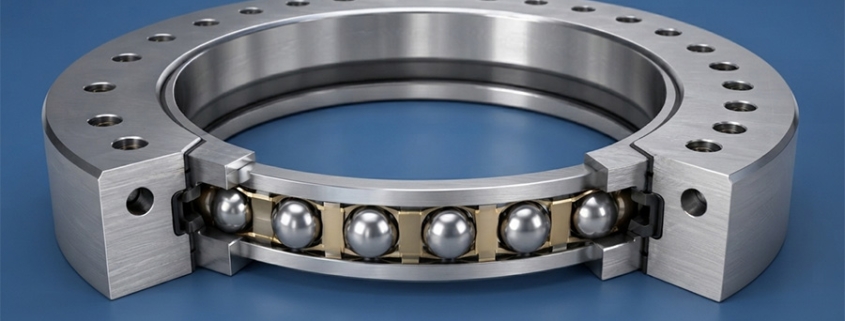

Unlike traditional rolling-element bearings designed primarily for high-speed rotational shafts, slewing bearings are characterized by their large diameters—typically ranging from compact units to massive assemblies measuring several meters across—and specialized internal configurations. A standard slewing bearing is composed of several key structural elements:

1. Inner and Outer Rings: These form the primary body of the bearing. Typically manufactured from high-grade alloy steels (such as 42CrMo), one or both rings feature integrated raceways and mounting holes for seamless bolting onto structural frames. Rings can be designed with internal gear teeth, external gear teeth, or completely un-geared (non-geared) depending on the power transmission requirements.
2. Rolling Elements: The rolling elements bear the brunt of the load. Depending on the design requirements, they can consist of single-row or multi-row steel balls, cylindrical rollers, or crossed rollers. For instance, four-point contact ball bearings utilize optimized gothic-arch raceways to handle complex multi-directional loads efficiently.
3. Cages and Spacers: To prevent friction and wear between adjacent rolling elements, cages or nylon spacers are incorporated to maintain uniform spacing and smooth motion throughout the rotation cycle.
4. Sealing Devices: Operating environments for heavy machinery are rarely pristine. High-performance rubber or synthetic seals are fitted on both sides of the bearing to retain essential lubricating grease while blocking moisture, dust, and abrasive debris from breaching the internal raceways.

How Slewing Bearings Work？

The fundamental working principle of a slewing bearing revolves around load distribution and relative rotation between two structural components—typically a stationary base and a rotating upper structure.

When external forces act upon a machine (such as the combined weight, wind pressure, and lifting load of a crane), these forces are transferred through the mounting structure directly into the rings of the slewing bearing. The rolling elements circulate along precision-machined raceways within the inner and outer rings, distributing the massive loads evenly across a wide surface area. This distribution prevents localized stress concentrations that would otherwise deform or destroy standard bearings.

In geared configurations, the integrated gear teeth mesh with a drive pinion connected to a hydraulic or electric motor. As the motor turns the pinion, the gear teeth on the slewing ring transmit high rotational torque, causing the entire upper structure to turn smoothly and precisely. This ability to combine load-bearing capabilities with integrated power transmission is what sets slewing bearings apart from conventional pivot systems.

Key Advantages Over Traditional Bearings

Engineering complex machinery requires components that maximize efficiency while minimizing physical footprint and maintenance overhead. Slewing bearings offer several distinct advantages over traditional multi-bearing arrangements:

• Space-Saving Design: A single slewing bearing can replace an assembly of multiple radial and thrust bearings, drastically reducing the required vertical height and overall envelope of the equipment design.
• Multi-Directional Load Capacity: Traditional bearings often struggle when subjected to simultaneous axial, radial, and moment loads. Slewing bearings are engineered natively to absorb all three forces at once without structural failure.
• Simplified Installation and Maintenance: With pre-drilled mounting holes on both rings, installation is streamlined. Furthermore, integrated grease nipples allow for straightforward periodic lubrication without total disassembly.
• High Durability in Harsh Environments: Manufactured from resilient materials and protected by heavy-duty seals, slewing bearings maintain structural integrity even when exposed to mud, dust, moisture, and extreme temperature fluctuations.

Conclusion

Slewing bearings are the unsung heroes of modern industrial mechanization. By seamlessly combining the capacity to support immense multi-directional loads with fluid 360-degree rotational capability, they empower heavy equipment across construction, mining, renewable energy, and automation sectors to operate safely and efficiently. Understanding their structure and operational dynamics ensures that engineers can select the right components for long-term reliability.
