Four-Point Contact Ball Slewing Bearings: Design Principles and Selection Guide

The single-row four-point contact ball slewing bearing is a highly versatile rotational component engineered to simultaneously handle axial, radial, and overturning moment loads within a compact footprint, making it widely trusted in construction machinery, cranes, and solar tracking systems. As one of the core product lines of Luoyang Longda Bearing Co., Ltd. (LDB Bearing), these four-point contact ball slewing bearings are crafted to meet diverse and demanding operational requirements.

Understanding the Structure of a Four-Point Contact Ball Slewing Bearing

A four-point contact ball slewing ring is a specialized precision mechanical assembly designed to connect a rotating superstructure to a stationary base while transmitting complex loads between them. Its internal architecture is purposefully optimized for spatial efficiency and multi-load transmission.

• Internal Architecture: The assembly consists fundamentally of an inner ring, an outer ring, a single row of precision-machined steel balls, a cage or independent spacers to separate the rolling elements, and integrated sealing devices on both sides to prevent dust ingress and lubricant leakage. Depending on the driving mechanism of the host machine, either the inner or outer ring can be manufactured with integrated gear teeth (external or internal gearing) or supplied in a gearless (ungeared) execution.

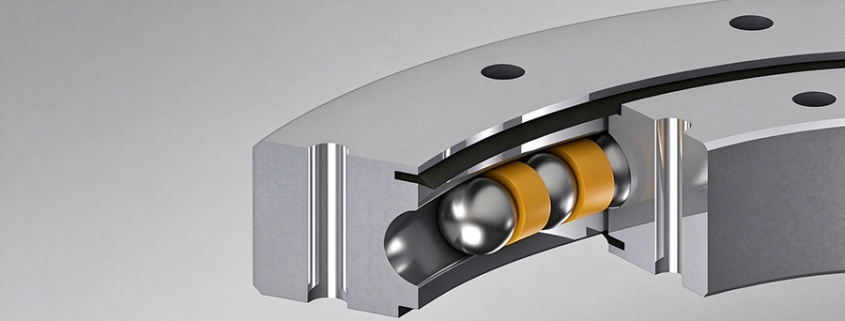

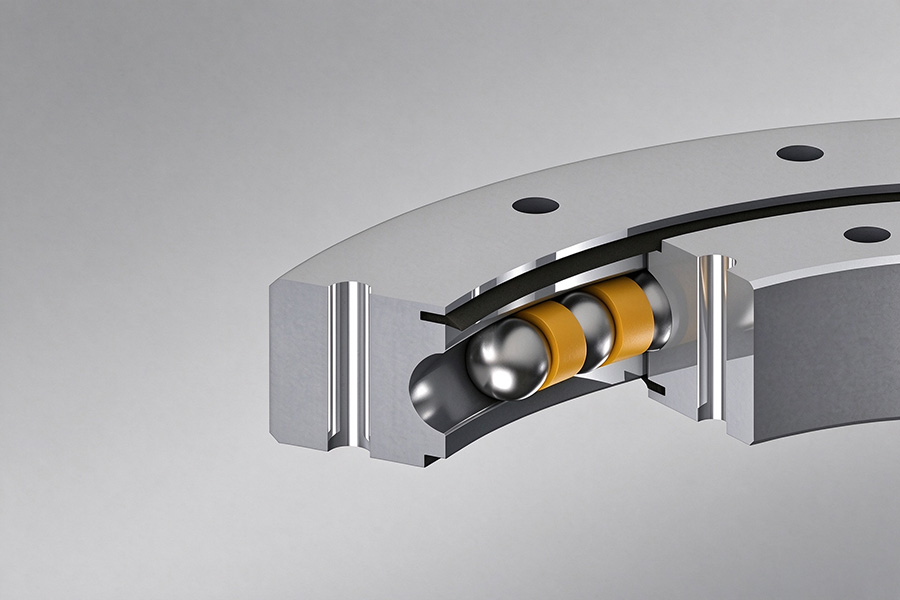

• The Gothic Arch Raceway Design: The defining geometric feature of this bearing type is its raceway cross-section, which resembles a pointed Gothic arch rather than a standard circular groove. This specialized profile is engineered so that each individual steel ball makes two distinct contact points with the raceway surface when subjected to purely radial or light axial loads. When combined loads and overturning moments act on the bearing, the contact points shift, resulting in a total of four potential contact points per ball across the inner and outer rings. This ingenious geometry allows a single row of rolling elements to achieve the multi-load capacity that would otherwise require a complex multi-row bearing arrangement.
• Compact Footprint: Because the Gothic-arch raceway maximizes load-handling capability within a single row of balls, the overall cross-sectional height and radial thickness of the bearing remain remarkably thin relative to its diameter. This thin-section, space-saving profile integrates mounting bolt holes directly into the rings, significantly reducing the required installation space and overall weight of the host equipment.
• Standard Technical Specifications & Range:
  • Outer Diameter: 300mm to 10,000mm
  • Ball Diameter: 30mm to 75mm
  • Rated Load: 129 kN to 3,410 kN
  • Gear Configuration: Ungeared (no gear), internal gear, or external gear
  • Delivery Time: 10 to 30 days

Core Design Principles and Multi-Load Capability of These Slewing Bearings

The operational efficacy of a four-point contact ball slewing ring rests on precise mechanical design principles governing load transmission, contact angles, and internal geometry.

• Simultaneous Multi-Directional Loading: In standard engineering bearings, separate components are typically required to handle thrust versus radial loads. In contrast, the contact angle of a four-point contact design (typically engineered around $45^\circ$) enables a single row of steel balls to accommodate axial forces acting in both upward and downward directions, radial forces, and severe overturning moments simultaneously. The steel balls roll along the Gothic-arch raceways with minimal sliding friction, ensuring smooth rotation even under heavy compound stress states.
• Load Distribution Mechanics: When heavy eccentric loads or overturning moments are applied to a rotating superstructure, the loads are not distributed evenly across all rolling elements. Instead, maximum compressive stresses concentrate across a specific arc of the load zone. Understanding how rolling elements share these peak loads is essential for preventing localized over-stressing. The individual steel balls transmit forces diagonally across the raceway contact points, ensuring that both thrust and lateral vectors are safely channeled into the supporting structure.
• Internal Clearance and Preload: Managing internal play (clearance) or applying a controlled preload is vital for achieving optimal rotational precision. Proper internal clearance accommodates thermal expansion during continuous operation, while slight preloading eliminates axial and radial play, minimizing elastic deflection and tilt under heavy moment loads. Engineers must carefully balance clearance requirements with operating temperatures and speed parameters.

Advantages and Limitations in Comparison to Roller Designs

While multi-row roller slewing bearings dominate ultra-heavy industrial sectors, four-point contact ball configurations remain the preferred choice for a vast array of mid-range mechanical applications due to distinct performance trade-offs.

• Key Advantages:
  • High Versatility and Cost-Effectiveness: Their ability to manage compound loads within a single, simple row makes them exceptionally economical to manufacture and maintain.
  • Smooth Rotation and Low Starting Torque: Ball bearings inherently feature lower rolling friction and starting resistance compared to cylindrical or tapered rollers, resulting in smoother, more responsive rotational control and lower energy consumption for drive motors.
  • Space and Weight Efficiency: The compact, lightweight profile allows equipment designers to minimize structural bulk without compromising load capacity.
• Operational Limitations:
  • Contact Stress Dynamics: Because steel balls make point contact with the raceways rather than the line contact found in roller bearings, the stress per unit area is higher under extreme loads.
  • Shock Load Sensitivity: While they handle moderate duty cycles excellently, continuous heavy shock loads or massive dynamic impacts can cause localized elastic deformation or surface fatigue (brinelling) more readily than heavy-duty roller configurations.

A Practical Selection Guide for Engineering Slewing Bearings

Proper sizing and selection of a slewing ring require a rigorous, step-by-step engineering evaluation of operating forces, geometric constraints, and safety margins to guarantee structural integrity and long service life.

• Evaluating Operating Load Factors:
  • Axial Load ($F_a$): Calculating the total vertical force acting upward or downward, which includes the dead weight of the rotating superstructure, counterweights, and maximum working payloads.
  • Radial Load ($F_r$): Determining lateral side forces generated by wind pressure, operating incline angles, centrifugal forces, or external sideways impacts.
  • Overturning Moment ($M$): Evaluating the critical leverage force created when eccentric loads act at a horizontal distance from the bearing’s geometric center, tending to tilt the assembly.
• Applying Safety Factors: Engineers must apply rigorous static safety factors ($s_s$) based on the severity of the application. This ensures that peak operational loads—such as emergency braking, sudden wind gusts, or maximum lifting moments—do not exceed the elastic limit of the bearing material, thereby preventing permanent plastic indentation (brinelling) on the Gothic-arch raceways.
• Interpreting Manufacturer Selection Curves: Calculated equivalent load parameters are cross-referenced with technical acceptance curves provided by the manufacturer. These curves correlate bearing diameter, rolling element size, and ring cross-section with allowable fatigue life and static load limits, verifying that the chosen model satisfies all structural criteria.

Primary Industrial Applications Across Sectors

Due to their balanced combination of multi-load capacity, smooth rotation, and economic efficiency, four-point contact ball slewing bearings are widely utilized across multiple industries.

• Construction & Material Handling: Small-to-medium hydraulic excavators, truck-mounted cranes, and aerial work platforms (manlifts) rely on these bearings to support rotating cabins and booms, ensuring reliable positioning under variable working angles.
• Renewable Energy: Solar tracking systems (such as horizontal single-axis and dual-axis solar trackers) utilize slewing rings to enable precise, continuous, and slow-speed rotational tracking of photovoltaic panels to maximize energy capture throughout the day.
• General Automation & Industrial Machinery: Industrial rotary tables, automated packaging machines, rotary welding positioners, and medical treatment equipment depend on the smooth, precise, and backlash-controlled rotation provided by these versatile bearings.

LDB Bearing: Your Reliable Source for Custom Slewing Bearings

Luoyang Longda Bearing Co., Ltd. (LDB Bearing), established in 1999 in Luoyang—China’s renowned bearing production hub—specializes in high-performance custom rotational solutions.

• Manufacturing Expertise & Quality Assurance: Operating under strict ISO9001:2015 quality management systems and certified by German TÜV in 2019, LDB implements rigorous process control across every manufacturing stage—from raw material inspection (utilizing premium alloy steels like 50Mn and 42CrMo4) to precision raceway quenching, gear hardening, and final product testing.
• Customization Capabilities: LDB manufactures both standard and custom-engineered slewing bearings ranging from 150mm to 4000mm in outer diameter. Whether your project requires non-standard mounting hole patterns, specialized gear tooth profiles, or tailored corrosion-resistant coatings, our technical team delivers exact dimensional compatibility. Contact our engineering department at Tony@ldb-bearing.com today for professional selection assistance and a tailored bearing solution.

Conclusion

Four-point contact ball slewing bearings offer an optimal balance of structural simplicity, multi-load capacity, and cost-efficiency for a broad spectrum of industrial machinery. Understanding their Gothic-arch raceway mechanics, evaluating equivalent loads accurately, and ensuring strict installation mounting flatness are essential steps toward achieving maximum operational reliability and extended service life.
