Three-Row Roller Slewing Bearings in Heavy Machinery: Advantages and Load Calculation

The extreme demands placed on heavy-duty industrial equipment require reliable rotational components capable of withstanding massive loads without sacrificing operational precision. Among various configurations, the three-row cylindrical roller design stands out as the ultimate engineering solution for ultra-heavy machinery. As a specialized manufacturer with decades of expertise in large-scale rotational components, Luoyang Longda Bearing Co., Ltd. (LDB Bearing) recognizes that standard ball or single-row roller configurations frequently fall short when confronting extreme tipping moments and severe shock loads. This article explores the unique structural features, key performance advantages, fundamental load calculation principles, and primary industrial applications of three-row roller systems. You can also explore more technical insights in our Bearing Knowledge archive.

What Makes a Three-Row Roller Slewing Bearing Unique?

Unlike standard ball or single-row roller configurations, a Three-Row Roller Slewing Bearing layout features three independent raceways and three separate sets of cylindrical rollers arranged perpendicular to one another. This multi-raceway architecture represents a pinnacle of precision mechanical design.

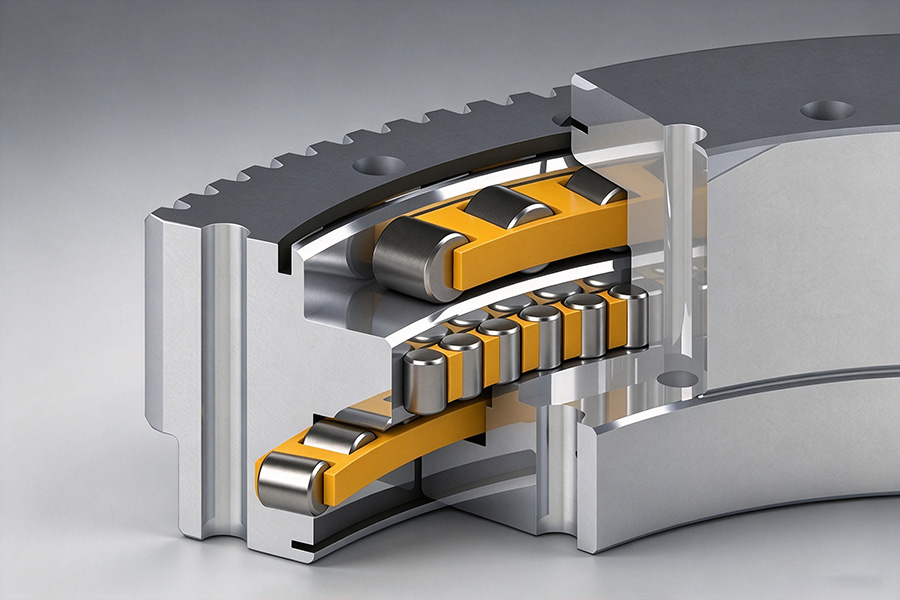

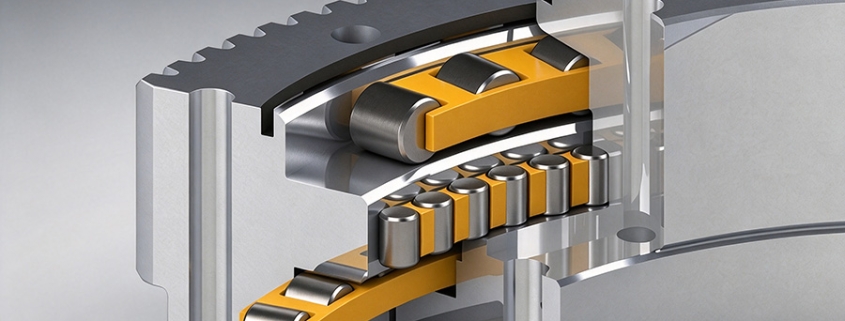

• Internal Structural Layout: The design entirely isolates loading paths. It contains an upper raceway, a lower raceway, and a dedicated radial raceway. Each of these three independent raceways houses its own specialized row of cylindrical rollers accompanied by precision-machined cages or spacers to prevent roller skewing and friction.
• Load Separation Mechanism: In standard bearings, a single set of rolling elements often must absorb axial, radial, and moment loads simultaneously, creating complex stress states. In a three-row configuration, the upper and lower rows of rollers handle axial loads acting in opposite directions, as well as massive overturning moments. Meanwhile, the third horizontal row is dedicated exclusively to absorbing pure radial forces. This complete division of labor eliminates interference between different load vectors.
• Comparison with Ball Bearings: Single-row or double-row ball bearings rely strictly on point contact between the balls and the raceway grooves. Under extreme stress, point contact results in high localized compressive stress, which can lead to elastic deformation or surface fatigue (brinelling). In contrast, cylindrical rollers provide line contact, drastically increasing load-carrying capacity, reducing contact stress per unit area, and offering superior resistance to heavy shock loads and continuous cyclic fatigue.

Key Performance Benefits of Three-Row Roller Slewing Bearings

Engineers specify three-row roller configurations when operating parameters far exceed the technical limits of standard ball or single-row roller slewing rings. The design offers distinct mechanical advantages in demanding operational environments.

• Exceptional Load-Carrying Capacity: Because line contact distributes applied forces evenly across a broader surface area, these bearings can support significantly higher combined axial, radial, and moment loads than any other slewing bearing type of equivalent dimensions. This makes them indispensable when equipment scale and lifting capacities scale up.
• High Structural Rigidity and Low Deformation: Under massive tipping moments—such as those experienced by a heavy crane lifting a load at maximum boom radius—standard bearings can experience elastic tilting and clearance opening. Three-row roller designs maintain minimal elastic deflection and high axial/radial stiffness, ensuring smooth, highly stable rotation for large superstructures.
• Extended Service Life in Harsh Environments: The clean separation of load paths prevents multi-directional stress concentration inside the raceways. Uniform stress distribution significantly reduces localized micro-cracking, raceway spalling, and wear fatigue, ensuring long-term reliability even under continuous, heavy-duty operational cycles.

Basic Principles of Load Calculation for a Three-Row Roller Slewing Bearing

Selecting and sizing a heavy-duty slewing ring requires a rigorous evaluation of working forces, geometric constraints, and safety margins to guarantee structural integrity.

• Identifying Operating Load Factors:
  • Axial Load (FaF_aFa​): The total vertical force acting upward or downward, combining the dead weight of the rotating superstructure, counterweights, and the maximum payload being handled.
  • Radial Load (FrF_rFr​): Side forces generated by wind pressure, operating incline angles, centrifugal forces, or external sideways impacts acting on the machinery.
  • Overturning Moment (MMM): The critical leverage force created when eccentric loads act at a horizontal distance from the bearing’s geometric center, tending to tilt the superstructure.
• Equivalent Load and Safety Factors: Engineers calculate equivalent loads for each of the three roller rows and apply a rigorous static safety factor (sss_sss​). This ensures that peak operational loads—such as emergency stops or sudden wind gusts—do not exceed the elastic limit of the material, thereby preventing permanent plastic deformation or brinelling on the raceways and rollers.
• The Role of Manufacturer Acceptance Curves: Calculated parameters are cross-referenced with manufacturer technical selection curves. These curves correlate bearing diameter, roller size, and raceway thickness with allowable fatigue life and static load limits, verifying that the selected design meets all operational criteria safely.

Typical Heavy Machinery Applications

Three-row roller configurations are indispensable in heavy industries where operational failure is catastrophic and equipment scales are massive.

• Large Cranes: Tower cranes, heavy-duty crawler cranes, and floating marine cranes require absolute stability while lifting extreme loads at extended boom radii. The high rigidity of three-row roller designs prevents boom sway and ensures precise load positioning.
• Mining & Earthmoving Equipment: Bucket-wheel excavators, stacker-reclaimers, and heavy industrial machinery face severe shock loads, abrasive dust, and continuous 24/7 operation. Three-row bearings absorb these immense impact forces without premature wear.
• Heavy Industrial Turntables & Port Machinery: Container handlers, heavy-duty welding positioners, and large-scale revolving platforms rely on these bearings to support heavy, eccentric loads while maintaining smooth, controlled rotation.

Engineering Best Practices: Installation, Preload, and Maintenance

Maximizing the service life of a heavy-duty bearing goes beyond proper initial selection; correct installation, structural alignment, and ongoing maintenance are vital.

• Foundation Flatness Requirements: Because slewing rings are flexible thin-section structures relative to their massive overall diameter, an uneven mounting foundation will cause severe distortion, localized stress concentrations, and premature binding. Strict flatness tolerances must be maintained on both the upper and lower mating steel structures.
• Lubrication Management: Due to the heavy contact pressures involved in three-row rolling elements, selecting a grease with the correct base oil viscosity, high-pressure (EP) additives, and suitable thickeners is essential. Regular relubrication purges contaminants, prevents metal-to-metal contact, and maintains an unbroken lubricating oil film across all three raceways.

LDB Bearing: Your Trusted Partner for Custom Three-Row Roller Slewing Bearings

Luoyang Longda Bearing Co., Ltd. (LDB Bearing), established in 1999 in Luoyang—China’s renowned bearing production hub—specializes in high-performance custom slewing solutions.

• Quality Assurance & Certifications: Operating under strict ISO9001:2015 quality management systems and certified by German TÜV in 2019, LDB implements rigorous process control from raw material inspection (such as premium 50Mn and 42CrMo4 alloy steels) to final product testing.
• Global Reach & Customization: LDB manufactures standard and custom-engineered slewing bearings ranging from 150mm to 4000mm in diameter. Proven manufacturing reliability and technical expertise have enabled the brand to export high-quality products to 73 countries and regions across Asia, the Americas, and Oceania. Contact our engineering team at Tony@ldb-bearing.com today to discuss your custom load requirements and secure a tailor-made solution.

Conclusion

Three-row roller slewing bearings serve as the critical backbone of heavy industry, providing unmatched rigidity, superior load distribution, and operational stability for large-scale machinery. Proper load calculation, strict mounting foundation flatness, and correct lubrication management are the essential keys to unlocking their full operational potential and ensuring long-term equipment reliability.
