Three-Row Roller Slewing Bearings: Design and Static Load Selection

What Is a Three-Row Roller Slewing Bearing?

A three-row roller slewing bearing is a large-diameter rolling-element bearing that uses three independent rows of cylindrical rollers to support loads. Unlike single-row ball bearings or crossed roller designs, the three-row roller configuration dedicates separate roller rows to different load directions. The upper and lower rows of rollers handle axial loads and tilting moments, while the middle row handles radial loads. This separation of load paths allows each roller row to be optimized for its specific load type, resulting in the highest load capacity and rigidity among all slewing bearing designs.

Three-row roller slewing bearings are typically specified for the most demanding applications: large harbor cranes, tunnel boring machine (TBM) main bearings, heavy excavators, and large wind turbine pitch and yaw systems. While they represent the highest cost among slewing bearing types, they deliver unmatched performance in applications where failure is not an option. Understanding their design principles and static load-carrying capacity is essential for engineers, procurement professionals, and maintenance teams working with heavy machinery.

Structural Configuration of Three-Row Roller Slewing Bearings

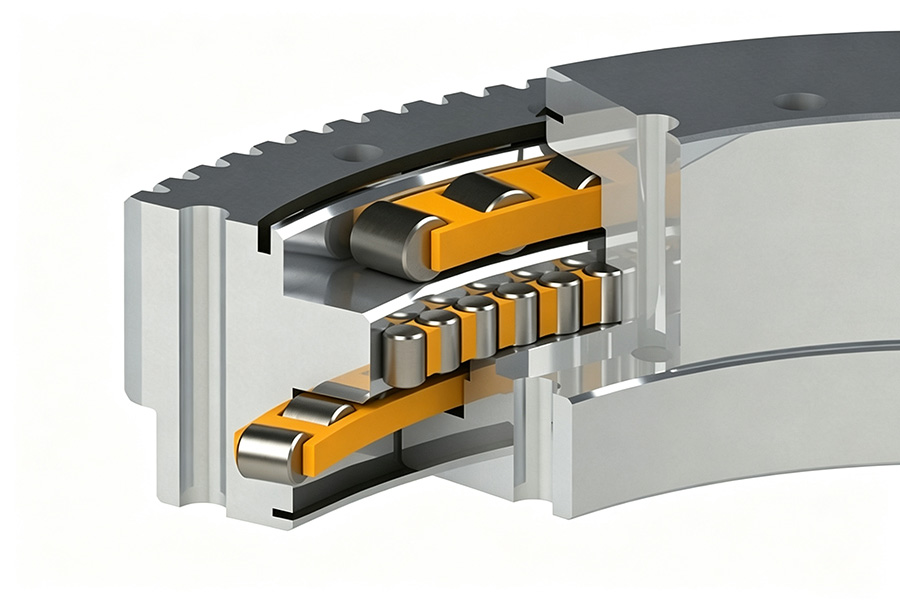

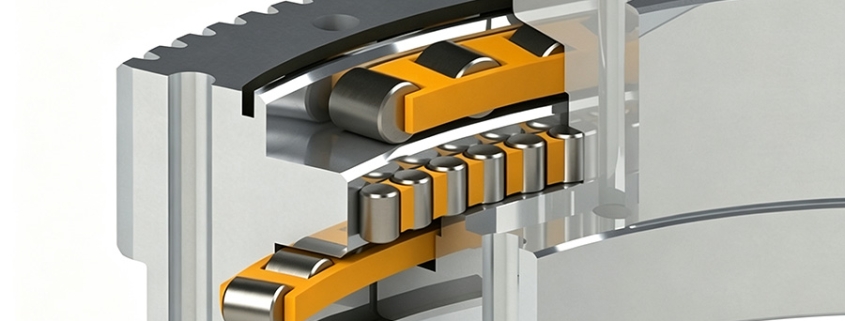

The structural configuration of a three-row roller slewing bearing is defined by its three independent roller rows. Each row serves a distinct load-bearing function. The upper axial roller row is positioned near the top of the bearing cross-section. This row consists of cylindrical rollers oriented horizontally, with their axes parallel to the bearing’s radial direction. The rollers in this row handle axial loads in one direction (typically downward) and also contribute to tilting moment resistance.

The lower axial roller row is located near the bottom of the cross-section, with rollers oriented in the opposite direction to handle axial loads in the opposite direction (typically upward). Together, the upper and lower axial rows provide bidirectional axial load capacity and tilting moment resistance. The radial roller row sits between the upper and lower axial rows. These rollers are oriented vertically, with their axes parallel to the bearing’s axial direction, and handle radial loads perpendicular to the bearing axis. This row is independent of the axial rows.

Separating axial and radial load paths offers significant advantages. Load distribution is more uniform because there is no load interaction between directions. Each roller row can be optimized independently for its specific load type, with appropriate roller diameter, length, and material specifications. The contact area for each load type is maximized, increasing static and dynamic capacity.

However, this configuration also presents challenges. Manufacturing precision requirements are higher because three raceways must be machined within tight tolerances. Assembly is more complex due to multiple roller rows and the need to maintain proper roller spacing and preload. The overall cross-section height is larger than single-row designs, requiring more space in the equipment design. Despite these challenges, the load capacity and rigidity advantages make three-row roller bearings the preferred choice for the heaviest applications.

Load Types and Static Capacity of Three-Row Roller Slewing Bearings

Three-row roller slewing bearings must support three types of loads simultaneously in real-world applications. The first is axial load (Fa)—vertical forces acting parallel to the bearing axis. These loads come from the weight of the rotating structure, the payload, and any vertical acceleration forces. In a crane, the axial load includes the weight of the cab, boom, and lifted load. In a wind turbine, it includes the weight of the nacelle and rotor assembly.

The second is radial load (Fr)—horizontal forces acting perpendicular to the bearing axis. These loads come from wind pressure, side forces during operation, and any horizontal acceleration. In an excavator, radial loads occur during digging when the bucket encounters resistance from the ground. In a crane, wind loads on the boom structure create radial forces on the yaw bearing.

The third is tilting moment (M)—the overturning force created when loads act at a distance from the bearing center. This is often the dominant load type in slewing bearing applications. In a crane, the tilting moment is created by the lifted load at radius. In an excavator, the digging force at the bucket creates a tilting moment on the swing bearing. The tilting moment is calculated as load × distance from bearing center.

Static load-carrying capacity is defined as the maximum load a bearing can withstand without permanent plastic deformation of the raceway. For three-row roller slewing bearings, the static capacity is determined by the contact stress between the cylindrical rollers and the raceways. When the load exceeds the static capacity, indentations form on the raceway surface. These indentations create stress concentrations that accelerate wear and lead to premature failure. The static capacity is calculated based on the roller diameter, roller length, number of rollers, raceway hardness, and contact geometry.

The static capacity calculation follows the principles outlined in ISO 76, which defines the static load rating based on a maximum Hertz contact stress. For roller bearings, the static capacity is generally higher than for ball bearings of the same size due to the line contact geometry. This higher static capacity makes three-row roller bearings particularly suitable for applications with heavy loads or frequent shock loading.

The Acceptance Curve for Three-Row Roller Slewing Bearing Selection

The acceptance curve is a powerful visual tool for selecting three-row roller slewing bearings. This concept defines a two-dimensional curve in the (Fa, M) plane—with axial load on one axis and tilting moment on the other—that represents the ISO-defined static failure point for a given bearing. The acceptance curve provides a quick method to determine whether a specific load combination is within the bearing’s safe operating range.

If the calculated load point (Fa, M) falls below the acceptance curve, the bearing is safe for static loading. If the point falls above the curve, the bearing is at risk of plastic deformation, and a larger bearing or different configuration is required. The shape of the acceptance curve is determined by the bearing’s geometry, roller configuration, and material properties. It is typically generated by calculating the static capacity for a range of load combinations and plotting the results.

The acceptance curve method was originally developed by Aguirrebeitia et al. for four-point contact ball bearings and has been extended to three-row roller slewing bearings in recent research. This extension required accounting for the different behavior of roller rows under combined loading and the fact that axial rows may have different roller sizes when axial loads are predominantly unidirectional.

For design engineers, the acceptance curve offers several practical benefits. It enables rapid comparison of multiple bearing sizes without time-consuming detailed calculations. It also provides a clear visual indication of safety margins under static loads. Additionally, the method supports communication with suppliers by providing a standardized way to specify load requirements.

In practice, three-row roller slewing bearings often have different roller diameters in the upper and lower axial rows. This is because axial loads are often unidirectional—predominantly downward in most applications. When loads are primarily one direction, optimizing the loaded row for maximum capacity while reducing the size of the unloaded row can improve cost-effectiveness without sacrificing performance. The acceptance curve method can accommodate this asymmetry, providing accurate static capacity predictions for both symmetrical and asymmetrical configurations.

Factors Affecting Three-Row Roller Slewing Bearing Capacity

Several factors influence the static load-carrying capacity of three-row roller slewing bearings. Understanding these factors is essential for proper design and selection. The first factor is roller size and count. The static capacity is directly proportional to the roller diameter and length because larger rollers provide greater contact area. The number of rollers also affects capacity, as more rollers distribute the load over a larger total contact area. However, increasing roller count requires smaller roller spacing, which must be balanced against cage strength and assembly constraints.

The second factor is roller profile geometry. The shape of the roller-raceway contact area significantly affects stress distribution. Standard cylindrical rollers create rectangular contact areas with stress concentrations at the edges—a phenomenon known as edge loading. Advanced roller profiles—such as logarithmic curves—distribute stress more evenly across the roller length, reducing peak stress and increasing static capacity. These profiles also improve fatigue life by reducing the risk of edge-initiated spalling.

The third factor is raceway hardness and hardened layer depth. The raceway surface should achieve 55–62 HRC through induction hardening. The hardened layer depth should be 3–6mm to prevent indentation under high static loads. Shallower hardening reduces static capacity because the soft material beneath the hardened layer deforms under load, causing the hardened surface to sink and create indentations. Deeper hardening provides greater resistance to plastic deformation but increases manufacturing cost and complexity.

The fourth factor is bearing internal clearance. The clearance between the rolling elements and raceways affects how the bearing distributes loads. With positive clearance, the bearing has free play before load is applied, leading to uneven load distribution under load. With negative clearance (preload), the bearing has no free play and distributes loads more evenly, increasing static stiffness and load capacity. However, excessive preload increases friction and heat generation. The optimal clearance depends on the application’s load characteristics and operating conditions.

The fifth factor is structural deformation of the bearing rings and mounting structure. The static capacity calculations assume perfectly rigid, flat mounting surfaces. In reality, mounting structures deform under load, changing the internal load distribution within the bearing. Inadequate mounting structure stiffness reduces the effective static capacity because some rollers become overloaded while others carry less load than predicted. Designers must consider the mounting structure’s stiffness in the bearing selection process.

FEA and Computational Design of Three-Row Roller Slewing Bearings

Modern design of three-row roller slewing bearings increasingly relies on finite element analysis (FEA) and other computational methods. These tools enable more accurate prediction of static capacity and stress distribution than traditional analytical methods alone. FEA allows engineers to model the bearing as a complete system, including the rings, rollers, and mounting structure. The analysis can account for material properties, contact mechanics, and geometric nonlinearities that are difficult to capture with simplified analytical models.

A typical FEA approach involves building a three-dimensional model of the bearing and applying the expected loads. The contact between rollers and raceways is modeled using contact elements that simulate the pressure distribution across the contact area. The results show the stress distribution in the raceways and identify areas of high stress that could lead to plastic deformation. FEA also allows engineers to evaluate design modifications before building physical prototypes. For example, changes to the roller profile or bearing clearance can be modeled and the effect on stress distribution evaluated without costly and time-consuming physical testing. The 2025 study by Guerineau et al. presented a computational model for a three-row slewing bearing that combined theoretical formulations, FEA simulation, and experimental testing to characterize the nonlinear behavior of such bearings under static loads. This comprehensive approach enables designers to predict static performance with a high degree of confidence.

The combination of analytical calculations, FEA, and experimental testing provides the most reliable approach to static capacity prediction. Analytical calculations provide initial sizing guidance, FEA refines the design by accounting for structural deformation and complex contact mechanics, and experimental testing validates the design assumptions and identifies any unexpected failure modes. For critical applications where failure is not an option, this comprehensive approach is essential.

When to Choose a Three-Row Roller Slewing Bearing

Selecting the right slewing bearing type requires careful consideration of the application’s load profile and operating conditions. Three-row roller slewing bearings are the best choice for applications with extreme loads, high tilting moments, significant radial loads, or where failure cannot be tolerated. Three-row roller bearings handle static loads up to 25% higher than double-row ball bearings of similar size, and their line contact also provides 2-3 times better rigidity than ball designs.

Three-row roller bearings are recommended when the bearing raceway diameter is greater than 1800mm, making them standard for the largest harbor cranes and tunnel boring machines. They are also the standard choice for shield tunneling machines (TBM main bearings), where the bearing must support the entire cutterhead while enabling rotation. In port equipment, three-row roller bearings are used in ship-to-shore cranes and large container cranes for extreme load capacity. In wind energy, they are increasingly specified for 5MW+ wind turbine yaw and pitch bearings. In mining equipment, they are used in the largest excavators and draglines where shock loads are severe.

While three-row roller bearings have the highest unit cost among slewing bearing types, they often provide the lowest total cost of ownership in large-diameter heavy-load applications. The superior load capacity and rigidity reduce the risk of failure and the associated downtime. The longer service life reduces replacement frequency and maintenance costs. The improved stability under load enhances equipment productivity and safety.
