Double-Row Ball Slewing Bearings: Design, Load Distribution, and Applications

The double-row ball slewing bearing is a specialized rotational component engineered to provide exceptional moment rigidity and stability by utilizing two independent rows of rolling elements to distribute heavy multi-directional loads, making it widely trusted in tower cranes, harbor machinery, and large industrial turntables. As one of the core product lines of Luoyang Longda Bearing Co., Ltd. (LDB Bearing), these double-row ball slewing bearings are crafted to meet diverse and demanding operational requirements.

Understanding the Structure and Dual-Raceway Design

A double-row ball slewing ring is an advanced precision mechanical assembly designed to connect a rotating superstructure to a stationary base while safely transmitting complex compound loads. Its internal architecture is purposefully engineered to manage high-demand operating environments where single-row configurations face stability limitations.

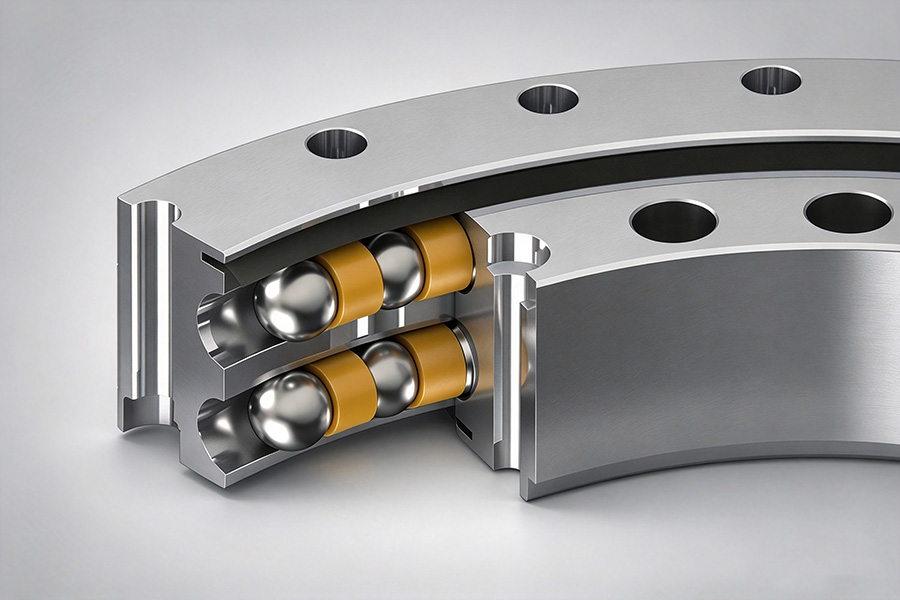

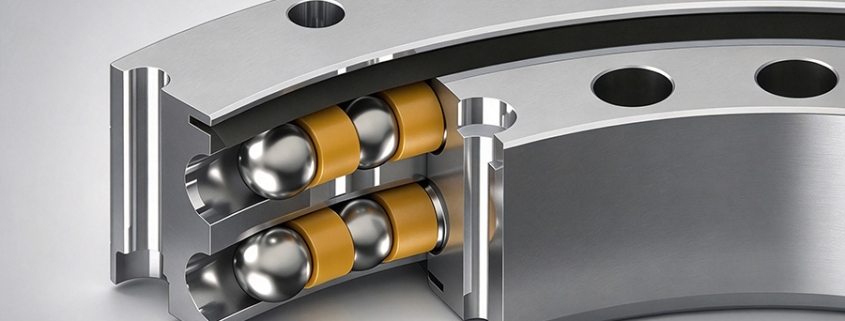

• Internal Architecture: The assembly consists fundamentally of a robust inner ring, a corresponding outer ring, and two completely independent rows of precision-machined steel balls. Each row is accompanied by individual cages or precision spacers to prevent rolling element friction, complemented by integrated sealing systems on both sides to exclude contaminants and retain lubrication. Depending on the drive mechanism of the host equipment, rings can be supplied with integrated gear teeth (internal or external gearing) or in a gearless execution.
• Independent Raceway Configuration: Unlike single-row configurations that rely on shared raceways, a double-row design features two distinct sets of raceway grooves engineered into the rings. This spatial separation allows the upper and lower rows of balls to operate independently, optimizing the transmission path for multi-directional forces.
• Standard Technical Specifications & Materials:
  • Range of External Diameter: 300 mm to 10,000 mm
  • Ring Material: 42CrMo / 50Mn / C45
  • Ball/Roller Material: GCr15
  • Cage Material: Steel 20 or ZL102 cast aluminum alloy
  • Spacer Material: Nylon 6 / Nylon 66
  • Quenching Hardness of Raceway: HRC 55–62
  • Tooth Type: Ungeared (no gear), internal gear, external gear
  • Lead Time: 30 days

Load Distribution Mechanics in Double-Row Configurations

The operational superiority of a double-row ball slewing system stems from precise mechanical design principles governing load sharing and moment resistance.

• Independent Load Paths: The two separate rows of rolling elements divide incoming forces logically. Typically, the upper and lower rows coordinate to handle axial loads acting in opposing directions while simultaneously sharing heavy overturning moments. This division prevents concentrated stress overload across a single contact zone.
• Enhanced Moment Rigidity: When eccentric loads or heavy tilting moments act on a rotating superstructure, double-row configurations exhibit significantly lower elastic deflection and tilting angles compared to single-row ball bearings. The physical distance between the two rows of balls creates a wider mechanical baseline, enhancing structural rigidity.
• Internal Clearance and Preload Management: Controlling internal play during assembly is critical for optimizing rotational stiffness. Proper internal clearance accommodates thermal expansion during continuous duty cycles, while precise preloading eliminates axial and radial play to ensure smooth, backlash-free positioning under variable loads.

Performance Comparison: Single-Row vs. Double-Row Ball Slewing Bearings

Selecting the correct structural configuration requires balancing load requirements, physical space constraints, and operational dynamics.

• Load Capacity and Stability: Double-row ball designs offer substantially higher resistance to severe overturning moments than standard single-row ball types, bridging the performance gap between light-duty ball rings and ultra-heavy multi-row roller assemblies.
• Rotational Friction and Efficiency: Despite housing two rows of balls, the rolling contact mechanics maintain relatively low starting torque and smooth turning characteristics compared to heavy cylindrical roller systems, reducing energy demands on drive motors.
• Application Trade-offs: Engineers specify double-row ball configurations when equipment scale and tipping moment demands exceed single-row capabilities, but where the cost, weight, and spatial footprint of a three-row roller bearing are unnecessary.

Technical Selection Criteria and Engineering Sizing

Proper sizing and evaluation of a double-row slewing ring require a rigorous, step-by-step review of working forces and safety margins.

• Evaluating Operating Load Factors:
  • Axial Load ($F_a$): Calculating the total vertical force acting upward or downward, combining the dead weight of the superstructure, counterweights, and maximum working payloads.
  • Radial Load ($F_r$): Determining lateral side forces generated by wind pressure, operating incline angles, or centrifugal forces.
  • Overturning Moment ($M$): Evaluating the critical leverage force created when eccentric loads act at a horizontal distance from the bearing’s geometric center.
• Static and Dynamic Safety Factors: Engineers must apply appropriate static safety factors ($s_s$) to ensure peak operational loads—such as emergency stops or maximum lifting radii—do not exceed the elastic limit of the material, preventing permanent plastic indentation (brinelling) on the raceways.
• Manufacturer Acceptance Curves: Calculated load vectors are cross-referenced with technical selection charts to verify fatigue life limits and structural compliance.

Primary Industrial Applications Across Heavy Sectors

Double-row ball slewing bearings are widely utilized in heavy industries where operational reliability and structural stability under tipping moments are paramount.

• Cranes and Lifting Equipment: Tower cranes, mobile truck cranes, and heavy deck cranes rely on these bearings to maintain precise load positioning and structural stability under extended boom radii and variable wind loads.
• Port and Marine Machinery: Container handling equipment, shipboard slewing platforms, and harbor cranes benefit from the enhanced moment rigidity required in demanding marine environments.
• Industrial Turning Mechanisms: Large-scale industrial welding positioners, heavy turntables, and revolving architectural platforms depend on smooth, controlled, and stable multi-load rotation.

LDB Bearing: Your Trusted Partner for Custom Slewing Bearings

Luoyang Longda Bearing Co., Ltd. (LDB Bearing), established in 1999 in Luoyang—China’s renowned bearing production hub—specializes in high-performance custom rotational solutions.

• Manufacturing Heritage & Quality Assurance: Operating under strict ISO9001:2015 quality management systems and certified by German TÜV in 2019, LDB implements rigorous process control from raw material inspection (utilizing premium alloy steels like 50Mn, 42CrMo, and C45) to precision raceway induction hardening (HRC 55–62) and final load testing.
• Customization & Global Reach: In addition to double-row solutions, LDB also manufactures custom-engineered four-point contact ball slewing bearings and heavy-duty three-row roller slewing bearings ranging from 300 mm to 10,000 mm in outer diameter. Proven manufacturing reliability and technical expertise have enabled the brand to export high-quality products to 73 countries worldwide. Contact our engineering team at Tony@ldb-bearing.com today to discuss your custom load requirements and secure a tailor-made solution.

Conclusion

Double-row ball slewing bearings provide an exceptional balance of high moment rigidity, dual-path load sharing, and rotational efficiency for demanding industrial machinery. Proper load calculation, strict mounting foundation alignment, and correct maintenance are essential to achieving long-term operational reliability.

FAQs

• Q1: How do double-row ball slewing bearings differ from single-row four-point contact bearings?
  • A: While single-row four-point bearings handle multi-loads within a single groove, double-row bearings utilize two completely independent raceways and ball sets, providing enhanced stability and higher moment load capacity for demanding applications.
• Q2: Can the two rows of balls handle axial loads in opposite directions?
  • A: Yes, the upper and lower independent raceways are engineered to absorb axial forces acting in opposing directions while jointly resisting massive overturning moments.
• Q3: What industries benefit most from double-row ball configurations?
  • A: They are predominantly utilized in heavy-duty lifting equipment like tower cranes, harbor container handlers, and large-scale industrial turntables where structural stability under tipping moments is critical.
• Q4: Why is mounting foundation flatness essential for double-row bearings?
  • A: Because slewing rings are flexible thin-section assemblies relative to their diameter, an uneven mounting structure causes localized stress concentrations across the dual raceways, leading to binding and premature wear.
• Q5: Does LDB Bearing manufacture custom dimensions for replacement machinery?
  • A: Yes, LDB Bearing specializes in customized manufacturing, matching non-standard outer diameters, gear specifications, and bolt hole patterns to fit existing legacy equipment or new designs perfectly.
