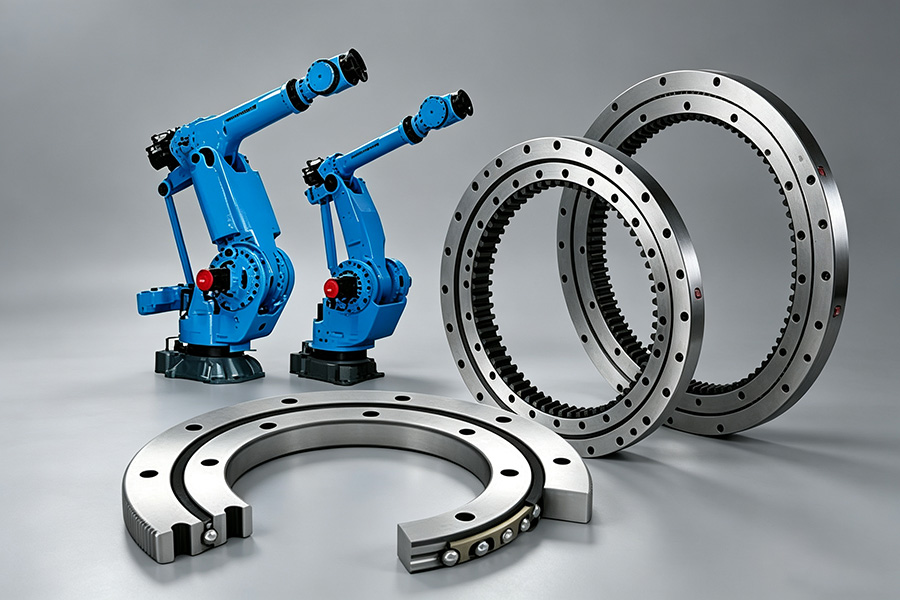

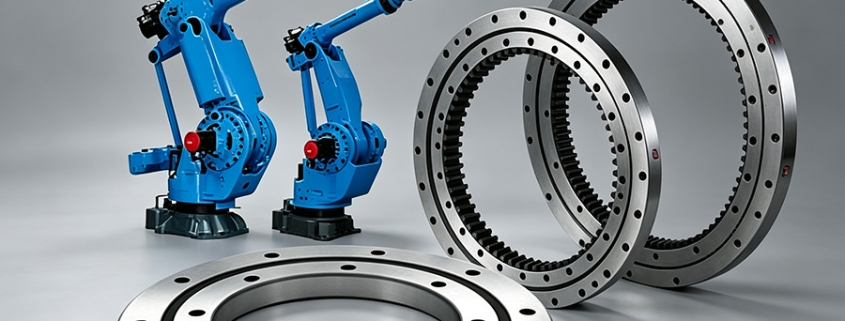

Slewing Bearings for Industrial Robots: Precision and Rigidity Requirements
What Is a Slewing Bearing?
A slewing bearing—also known as a slewing ring or turntable bearing—is a large-diameter rolling-element bearing designed to support heavy loads while enabling rotational movement between two structures. Unlike standard bearings that handle primarily radial or axial loads, slewing bearings are engineered to simultaneously manage axial loads, radial loads, and tilting moments.
In industrial robotics, slewing bearings serve as the critical rotational joint in robot bases, shoulders, elbows, and wrists. These bearings must deliver exceptional precision, high rigidity, and reliable performance under continuous, often oscillating motion while supporting the robot arm and its payload.
Core components: A slewing bearing consists of the inner ring and outer ring, rolling elements (steel balls or cylindrical rollers), a cage or spacer to maintain spacing, seals to protect the raceway from contaminants, and mounting holes for secure installation. Many robotic slewing bearings include integral gear teeth—internal or external—to engage with drive pinions for powered rotation.
Why Robotics Demands Specialized Slewing Bearings
Industrial robots operate under conditions that place unique demands on slewing bearings. Unlike construction equipment that rotates continuously, robot joints often execute small-angle oscillations with high frequency, sudden acceleration and deceleration, and positioning accuracy measured in fractions of a degree.
Precision requirements: Robotic applications typically require positioning repeatability of ±0.05mm or better. This translates to bearing runout below 0.05mm and angular positioning accuracy measured in fractions of a degree. Crossed roller bearings are often preferred for their ability to meet these stringent requirements .
Rigidity needs: A moving robot arm must place an object in an exact spot repeatedly. The bearing must resist deflection under load to maintain position accuracy. Crossed roller bearings provide the stiffness needed for short-stroke, high-acceleration moves .
Compact design: Space is always constrained in robot joints. Slewing bearings combine multiple load-bearing functions into one component, reducing joint length and diameter. Some crossed roller designs are available as small as 5.5mm high and 5mm wide .
Key Types of Slewing Bearings for Robotic Applications
Crossed Roller Bearings
Crossed roller bearings feature cylindrical rollers arranged at 90-degree angles to each other, with rollers alternating direction. This design enables a single-row bearing to handle axial loads from both directions, radial loads, and tilting moments simultaneously .
Advantages for robotics: Crossed roller bearings provide line contact between rollers and raceways, distributing loads over a larger area than balls. This results in higher rigidity—approximately 2-3 times that of comparable four-point contact bearings. The design achieves very good running accuracy and resistance to tipping moments .
Typical applications: Robot bases, shoulder joints, wrist joints, and precision positioning tables where stiffness is paramount.
Four-Point Contact Ball Bearings
Four-point contact ball bearings use a single row of balls with Gothic arch raceways, creating four contact points per ball. This design provides compact, cost-effective performance for moderate loads.
Advantages for robotics: Lower friction than crossed roller bearings due to point contact, enabling smoother motion and lower motor torque requirements. Single bearing replaces what would require two angular contact bearings, saving axial space. Ball bearings are less expensive than crossed roller bearings while performing smoother motion in a smaller, lighter package .
Typical applications: Lighter-duty robot joints, collaborative robots, and applications where cost and compactness are prioritized over maximum rigidity.
Precision and Rigidity Comparison
| Factor | Crossed Roller Bearings | Four-Point Contact Ball Bearings |
|---|---|---|
| Load Capacity | Excellent (line contact) | Good (point contact) |
| Rigidity | Very high (2-3x higher) | Moderate |
| Friction | Higher | Lower |
| Precision | Excellent | High |
| Space Efficiency | Excellent | Excellent |
| Cost | Higher | Lower |
| Speed Capability | Limited | Higher |
Selection guidance: Crossed roller bearings excel in applications requiring maximum stiffness and positioning accuracy under heavy loads. Four-point contact ball bearings are preferred for higher-speed operations, continuous-duty applications, and where energy efficiency is critical.
How Load Capacity Affects Robot Performance
Robotic slewing bearings must handle three types of loads simultaneously: axial load (vertical force from arm weight and payload), radial load (horizontal side forces), and tilting moment (overturning forces from loads at a distance).
The tilting moment is particularly critical in robot applications. When a robot arm extends with a payload, the overturning force creates significant moment loads on the bearing. Crossed roller bearings, with their line contact, provide superior resistance to these tipping moments .
Load rating considerations: Bearings in heavy-duty six-axis robots can experience combined loads requiring static safety factors of 1.5–2.0 for normal operation. Under shock loads from tool changes or emergency stops, higher safety factors may be required.
Gear Configuration in Robotic Slewing Bearings
Internal vs. external gearing: For compact robot joint designs with space constraints, internal gearing is often preferred as it protects gear teeth from contamination and reduces overall diameter . External gearing offers easier pinion access for inspection and maintenance.
Backlash requirements: Robotic applications require minimal backlash to maintain positioning accuracy. Gear teeth should be surface-hardened to 50–60 HRC to resist wear and maintain precision over extended operating cycles.
Material and Heat Treatment for Robotic Slewing Bearings
Raceway hardness: For both bearing types, raceway surfaces should achieve 55–62 HRC through induction hardening. This provides wear resistance while maintaining core toughness to absorb impact loads.
Hardened layer depth: Industry standards specify 3mm–6mm depth for optimal performance. Proper hardening prevents raceway indentation and spalling under cyclic loading.
Gear tooth hardening: If integral gearing is specified, teeth must be induction-hardened to 50–60 HRC with hardening extending from tooth root to tip for full durability.
Sealing and Lubrication for Robotic Environments
Contamination protection: Factory environments expose robot joints to dust, coolant mist, and debris. Seals must protect the raceway while maintaining smooth rotation. Multi-lip or labyrinth seals offer superior protection.
Lubrication demands: Crossed roller bearings run warmer than ball bearings due to higher contact area. This accelerates lubrication degradation, making lubricant selection critical . For cleanroom applications, specialized lubricants that minimize particle generation are required.
Emerging Trends in Robotic Slewing Bearings
Lubrication-free designs: Some manufacturers offer bearings with polymer sliding elements that operate without grease, eliminating lubrication requirements in cleanroom and medical applications.
Smart bearings: Integration of sensors for position feedback and condition monitoring enables predictive maintenance and real-time performance optimization.
Higher precision grades: As robotics advances toward micro-motion control and sub-millimeter positioning, bearing precision grades continue to tighten. P4 and P2 grades are increasingly common in high-end robotic applications.
How LDB Bearing Supports Robotic Applications
LDB Bearing supplies precision slewing bearings for industrial robots, including four-point contact ball bearings and crossed roller bearings. Products use verified 42CrMo forged alloy steel with induction-hardened raceways achieving 55–62 HRC and gear teeth hardened to 50–60 HRC.
LDB’s robotic bearing capabilities:
- Crossed roller bearings: For maximum rigidity and precision in robot bases, shoulders, and wrists
- Four-point contact ball bearings: For compact, cost-effective solutions in lighter-duty applications
- Precision grades: Meeting P5, P4, and P2 standards with documented runout measurements
- Gear options: Internal, external, or gearless configurations
- Application engineering: Support for load calculations, finite element analysis, and custom design
- Quality certification: ISO 9001-certified manufacturing with documented inspection reports
Serving 73 countries with over 500,000 units in service, LDB delivers the precision and reliability that robotic applications demand. Whether you need the exceptional rigidity of crossed roller bearings or the compact efficiency of four-point contact designs, LDB provides the technical expertise and quality assurance that robot manufacturers require for reliable, long-term operation.
Contact LDB Bearing today to discuss your robotic slewing bearing requirements.
FAQs
1. Which bearing type is better for robotic joints?
Crossed roller bearings offer superior rigidity and precision, ideal for heavy-duty robots. Four-point contact ball bearings provide lower friction and cost, suitable for lighter applications. The choice depends on your specific load, precision, and speed requirements.
2. Why are crossed roller bearings more rigid than four-point contact bearings?
Crossed roller bearings feature line contact between cylindrical rollers and raceways, distributing loads over a larger area. Four-point contact ball bearings use point contact. The larger contact area of line contact reduces elastic deflection under load, resulting in higher rigidity .
3. What precision grade is typically required for robotic slewing bearings?
Most robotic applications require P5 or better. Precision-critical applications like semiconductor handling and surgical robots may require P4 or P2 grades.
4. How do I select a slewing bearing for a robot application?
Evaluate your application’s load profile (axial, radial, moment), speed requirements, positioning accuracy needs, and environmental conditions. Match these to bearing type, size, precision grade, and sealing requirements. Consult the manufacturer’s engineering team for application-specific guidance.
5. Can four-point contact ball bearings handle moment loads?
Yes, four-point contact ball bearings can handle tilting moments. However, crossed roller bearings provide significantly higher moment capacity and rigidity, making them preferred for applications with heavy overturning forces.
