Seals and Lubrication for Longer Slewing Bearing Life
What Is a Slewing Bearing?
A slewing bearing is a large rotating component that supports heavy loads while enabling rotation between two structures. These bearings handle axial loads, radial loads, and tilting moments simultaneously. They operate in harsh environments—construction sites, mines, offshore platforms, and wind farms—where dust, water, and temperature extremes are constant threats.
Seals and lubrication work together to protect the slewing bearing from these threats. Seals keep contaminants out. Lubrication keeps moving surfaces apart. When either fails, the bearing fails prematurely. Understanding how these two systems work together helps operators extend bearing life and reduce maintenance costs.
Why Seals Are Critical for Slewing Bearing Protection
Seals are the slewing bearing’s first line of defense. They prevent contaminants from entering the raceway. They also keep lubricant inside the bearing where it belongs.
Contaminants destroy slewing bearings
Dirt, dust, water, and debris are the enemies of slewing bearings. When contaminants enter the raceway, they mix with grease to form an abrasive paste. This paste grinds away the rolling elements and raceways. The result is accelerated wear, increased friction, and premature failure.
In marine environments, saltwater ingress triggers electrochemical corrosion that degrades raceways even when the bearing is not rotating. In dusty mining applications, abrasive particles quickly destroy unsealed or poorly sealed slewing bearings.
Common seal types for slewing bearings
- Heavy-duty rubber seals: Standard protection for most applications. These seals provide a basic barrier against dust and light moisture.
- Labyrinth seals: Superior protection in extremely dusty or wet conditions. These seals use a complex path that contaminants cannot easily traverse.
- Multi-lip seals: Enhanced protection with two or more sealing lips. Each lip provides an additional barrier against contamination.
- Fluororubber seals: For high-temperature or chemically aggressive environments. These seals resist degradation from heat and chemicals that destroy standard rubber.
Seal inspection and replacement
Regular seal inspection is essential. Check for cracks, tears, hardening, or gaps between the seal and the ring. Ensure seals seat tightly with no deformation or misalignment. Replace damaged seals immediately.
Lubrication: The Second Line of Defense for Slewing Bearings
Lubrication separates the rolling elements from the raceways. It prevents metal-to-metal contact. Without lubrication, the slewing bearing would fail within hours under heavy load.
How lubrication protects slewing bearings
Proper lubrication forms a thin film between rolling elements and raceways. This film reduces friction, prevents wear, and carries heat away from contact areas. It also protects against corrosion and flushes out contaminants.
Grease types for slewing bearings
- Lithium-based EP grease: Standard for most applications. Provides good extreme pressure protection and water resistance.
- Polyurea grease: Superior water resistance. Good for marine and outdoor applications.
- Calcium-sulfonate grease: Excellent extreme pressure properties. Good for heavy-load applications.
- Synthetic grease: For high-temperature or low-temperature applications. Maintains viscosity over a wide temperature range.
Lubrication intervals for slewing bearings
Lubrication frequency depends on operating conditions:
- Normal use: Every 100-200 operating hours
- Heavy-duty/continuous operation: Every 50-100 hours
- Harsh environments (dusty, wet, shock loads): Shorten intervals
- Long-term storage: Re-grease every 6 months

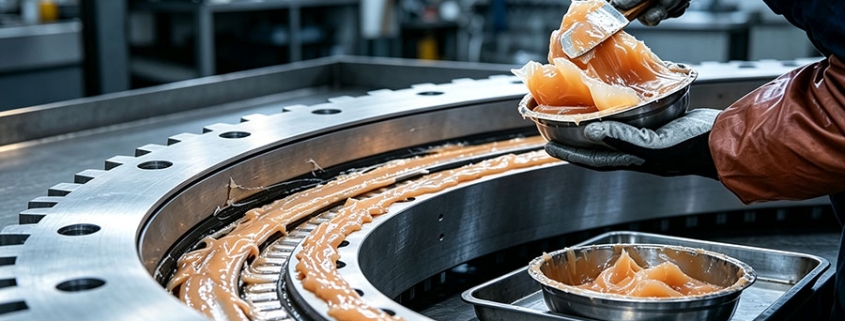

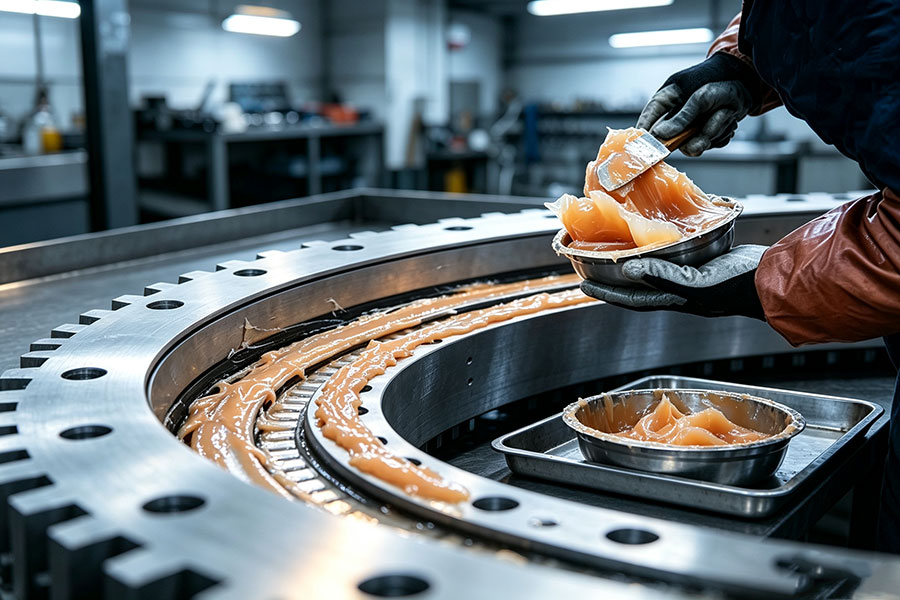

Lubrication technique
Proper technique ensures effective lubrication of the slewing bearing:
- Clean grease nipples before injecting to avoid introducing dirt
- Slowly rotate the bearing while greasing to ensure even distribution
- Apply until fresh grease exits the seals to purge old grease and contaminants
- Wipe excess grease to prevent dirt from sticking to overflow
How Seals and Lubrication Work Together in Slewing Bearings
Seals and lubrication are not independent systems. They work together to protect the slewing bearing. When seals fail, contaminants enter and destroy the lubricant. When lubrication fails, seals wear faster and contaminants enter more easily.
The seal-lubrication cycle
- Seals keep contaminants out of the slewing bearing
- Lubricant forms a protective film between rolling elements and raceways
- Fresh lubricant pushes out old grease and contaminants
- Seals retain the fresh lubricant
- Repeat
When the cycle breaks
Seal damage allows contaminants to enter the slewing bearing. These contaminants mix with the grease. The grease becomes an abrasive paste. The paste grinds away the raceway. The bearing fails.
Lubricant degradation also breaks the cycle. When grease breaks down, it no longer protects the bearing. Friction increases. Heat builds up. Seals harden and crack. Contaminants enter. The bearing fails.
Warning signs of seal or lubrication failure
- Grease leakage around the seal
- Contaminated grease (discolored, gritty, or watery)
- Unusual noise during rotation
- Increased rotational resistance
- Overheating of the slewing bearing
- Visible seal damage (cracks, tears, or gaps)
Common Seal and Lubrication Mistakes
Mistake 1: Using the wrong grease
Different slewing bearing applications require different greases. A grease that works well in a dry, temperate environment may fail in a hot, wet environment. Always match the grease to the operating conditions.
Mistake 2: Mixing different greases
Different greases have different thickeners and additives. Mixing them can cause chemical reactions that break down the lubricant. Never mix grease types without thoroughly purging the old grease first.
Mistake 3: Ignoring seals during inspection
Many maintenance programs focus on lubrication and ignore seals. Damaged seals allow contaminants to enter the slewing bearing. These contaminants destroy the grease and the bearing. Inspect seals every time you lubricate.
Mistake 4: Overgreasing
Too much grease can be as bad as too little. Overgreasing creates pressure that can damage seals and cause overheating. Follow the manufacturer’s recommendations for grease quantity.
Mistake 5: Using standard seals in harsh environments
Standard rubber seals are not sufficient for harsh environments. High temperatures, chemicals, and UV exposure degrade rubber quickly. In harsh conditions, specify seals designed for those conditions.
Application-Specific Considerations for Slewing Bearings
Construction and mining equipment
These applications involve heavy loads, shock loads, and abrasive dust. The slewing bearing must be sealed against dust infiltration. Use heavy-duty rubber seals or labyrinth seals. Lubricate frequently—every 50-100 operating hours. Use EP grease with good water resistance.
Marine and offshore applications
Saltwater is the main threat. The slewing bearing must be protected against corrosion and water ingress. Use fluororubber seals or multi-lip seals for superior water resistance. Choose grease with excellent corrosion protection and water resistance. Rinse the bearing area with fresh water regularly to remove salt buildup.
Wind turbines
Pitch and yaw bearings are located high above ground. Access for maintenance is difficult. The slewing bearing must provide long service life with minimal maintenance. Use high-quality seals that resist UV and ozone. Choose synthetic grease that maintains viscosity over a wide temperature range. Consider automatic lubrication systems for consistent lubrication.
Solar trackers
Solar tracker slewing bearings operate outdoors in varying conditions. They face UV radiation, temperature swings, and dust. Some applications use lubrication-free designs with polymer sliding elements. For grease-lubricated designs, use sealed bearings with long-life grease.
Maintenance Best Practices for Slewing Bearings
Establish a maintenance schedule
Create a written schedule for lubrication and inspection. Follow the schedule consistently. Document all maintenance activities for future reference.
Use the right tools
Use a calibrated grease gun to apply the correct amount of grease. Use a torque wrench to check bolt torque. Use inspection tools to check seals and bearings.
Train operators and maintenance staff
Operators should know the warning signs of slewing bearing problems. Maintenance staff should know proper lubrication and inspection techniques. Training prevents mistakes that damage bearings.
Keep records
Record lubrication dates, grease types, inspection results, and any issues found. These records help identify patterns and improve maintenance planning.
How LDB Bearing Supports Seal and Lubrication Requirements
LDB Bearing designs and manufactures slewing bearings with robust sealing and lubrication systems. Products use verified 42CrMo forged alloy steel with induction-hardened raceways achieving 55–62 HRC and gear teeth hardened to 50–60 HRC.
LDB’s seal and lubrication capabilities:
- Seal options: Heavy-duty rubber, labyrinth, multi-lip, and fluororubber seals matched to operating environments
- Lubrication design: Accessible grease fittings and well-designed grease channels for even distribution
- Customization: Special seals and lubricants for harsh environments, including marine and high-temperature applications
- Quality assurance: ISO 9001-certified manufacturing with documented inspection reports
- Engineering support: Application engineering for seal and lubrication specification
Serving 73 countries with over 500,000 units in service, LDB delivers the reliability that heavy machinery applications demand. Understanding how seals and lubrication work together to protect slewing bearings enables better selection, installation, and maintenance practices. LDB offers the technical expertise and quality assurance that equipment manufacturers and operators need for reliable, long-term operation.
Contact LDB Bearing today to discuss your slewing bearing seal and lubrication requirements.
FAQs
1. Why are seals important for slewing bearings?
Seals keep contaminants out and lubricant in. Without effective seals, dirt and moisture enter the raceway, creating abrasive paste that destroys the bearing.
2. What type of grease is best for slewing bearings?
Lithium-based EP grease is standard. For marine or wet environments, use polyurea or calcium-sulfonate grease. For high-temperature applications, use synthetic grease. Always match the grease to the operating conditions.
3. How often should I lubricate a slewing bearing?
Lubrication intervals depend on operating conditions. Normal use: every 100-200 hours. Harsh environments: every 50-100 hours. Follow the manufacturer’s recommendations for your specific application.
4. What happens if I mix different grease types?
Mixing different grease types can cause chemical reactions that break down the lubricant. This can lead to increased wear, overheating, and premature failure. Always thoroughly purge old grease before switching types.
5. How do I know if a seal is damaged?
Inspect seals regularly for cracks, tears, hardening, or gaps. If you see grease leakage, discolored grease, or contaminants around the seal, the seal may be damaged and needs replacement.
