What Are the Applications of Slewing Bearings in Wind Turbines?
Wind turbines are growing larger and more powerful, yet their reliable operation depends heavily on one critical component: the slewing bearing. These large-diameter bearings enable the precise rotational movements—yaw and pitch adjustments—that allow turbines to capture maximum energy while withstanding extreme wind forces and harsh environmental conditions.
This article explores the essential applications of slewing bearings in wind turbines, examining their types, functions, and the significant benefits they bring to wind energy generation. Understanding these components is crucial for ensuring reliable and efficient wind power production.
What Is a Slewing Bearing?
A slewing bearing—also known as a slewing ring or turntable bearing—is a large-diameter rotational rolling-element bearing engineered to simultaneously support three types of loads:
- Axial loads (forces acting parallel to the axis of rotation, primarily from the weight of the turbine components)
- Radial loads (forces acting perpendicular to the axis, such as wind pressure on the blades)
- Tilting moment loads (overturning forces created by uneven wind loading across the rotor)
Unlike conventional bearings designed for a single load direction, slewing bearings integrate inner and outer rings with rolling elements (balls or rollers) between them. They feature mounting holes for direct attachment to structural frames and often include integrated gear teeth for direct drive engagement.
Common configurations include single-row four-point contact ball bearings, double-row ball bearings, cross-roller bearings, and three-row roller bearings. The choice depends on specific load requirements, rotational speed, and environmental conditions. In wind turbines, where loads vary constantly and reliability is paramount, these bearings must deliver exceptional performance under demanding conditions.
Why Are Slewing Bearings Critical in Wind Turbines?
Wind turbines operate in some of the most challenging environments on Earth. Offshore turbines face saltwater corrosion, while onshore turbines contend with dust, temperature extremes, and unpredictable wind forces. Slewing bearings are critical for several compelling reasons:
Continuous Load Management
Wind turbine loads are never static. Wind speeds fluctuate, blade positions change, and the entire nacelle must rotate to track wind direction. Slewing bearings manage these dynamic loads continuously, absorbing axial, radial, and moment forces that would overwhelm standard bearing designs.
Precision Positioning
For a wind turbine to capture maximum energy, its blades must maintain optimal angles relative to the wind. The yaw system must orient the nacelle with an accuracy of approximately 1-2 degrees, while the pitch system adjusts blade angles within milliseconds. Slewing bearings provide the smooth, low-friction rotation required for such precise positioning.
Structural Integrity
A modern wind turbine nacelle can weigh over 400 tons, with rotor blades spanning 100+ meters. The main shaft bearing and yaw bearing must support this massive weight while enabling rotational movement. Slewing bearings with high load capacity and rigidity ensure structural integrity throughout the turbine’s operational life.
Reliability and Longevity
Wind turbines are designed to operate for 20+ years with minimal maintenance, particularly for offshore installations where access is difficult and costly. High-quality slewing bearings manufactured with hardened raceways, advanced seals, and corrosion-resistant materials can achieve this demanding service life.
Safety and Failure Prevention
Bearing failure in a wind turbine can have catastrophic consequences, including blade strikes, tower collapse, and environmental damage from lubricant leaks. The critical role of slewing bearings in maintaining safe, stable turbine operation makes them essential safety components.
Main Types of Slewing Bearings Used in Wind Turbines
Wind turbine applications utilize several slewing bearing configurations, each selected for specific load characteristics and operational requirements.
Single-Row Four-Point Contact Ball Slewing Bearings
This configuration uses a single set of balls with four contact points in the raceways, enabling the bearing to handle axial loads, radial loads, and tilting moments simultaneously. Single-row four-point contact ball bearings are compact, cost-effective, and commonly used in yaw systems and pitch systems where space is limited.
Double-Row Ball Slewing Bearings
Featuring two independent rows of balls, this design separates axial load handling from radial and moment load handling. Double-row ball bearings offer higher load capacity than single-row designs and are often specified for larger wind turbines with increased load demands.
Cross-Roller Slewing Bearings
Cross-roller bearings use cylindrical rollers arranged alternately perpendicular to each other between the inner and outer rings. This design provides exceptional rigidity and high precision, making them suitable for pitch systems requiring precise blade angle control.
Three-Row Roller Slewing Bearings
This highest-capacity configuration features three separate rows of rollers: one dedicated to axial loads, one for radial loads, and one for moment loads. Three-Row Roller Slewing Bearings are used in the largest wind turbines and main shaft applications where load demands are extreme. Their robust design ensures superior load distribution and extended service life under the most demanding operating conditions. For applications requiring maximum load capacity and reliability, Three-Row Roller Slewing Bearings represent the premium choice in wind turbine engineering.

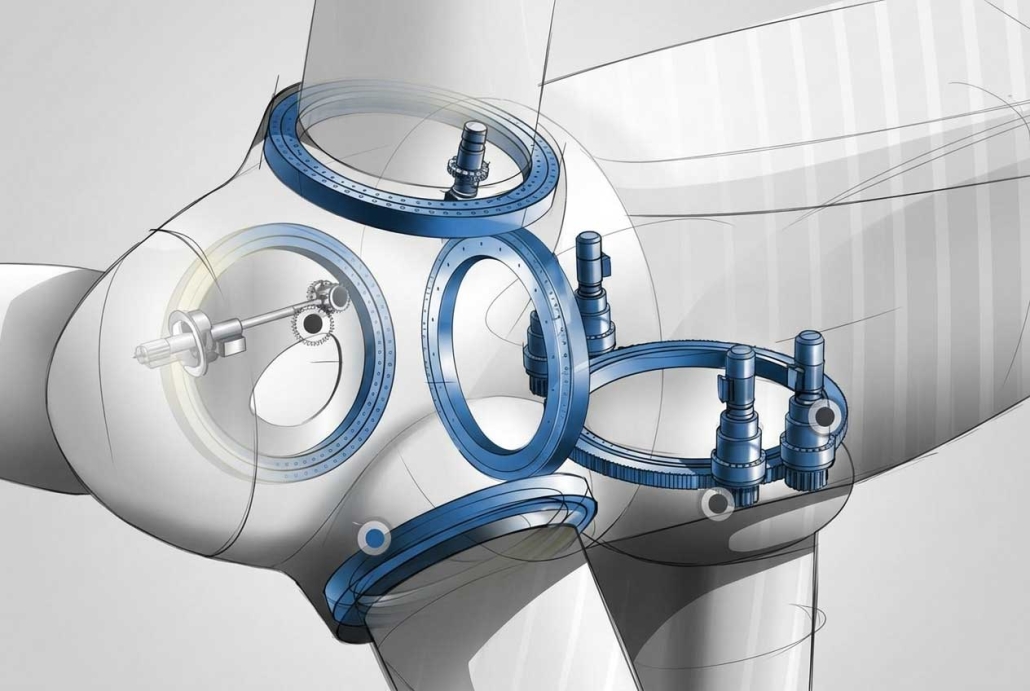

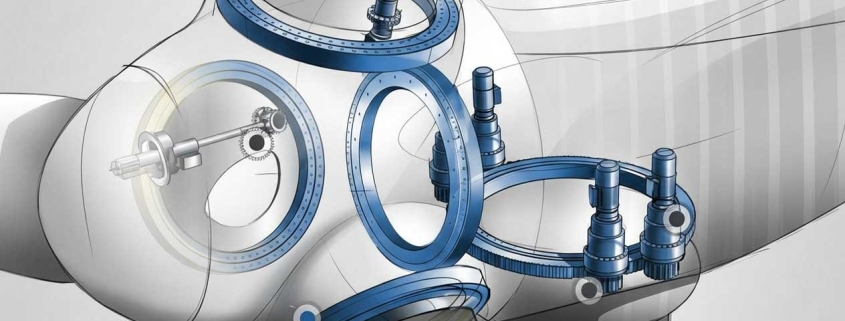

Core Applications of Slewing Bearings in Wind Turbines
Slewing bearings serve multiple essential functions within a wind turbine. Below are the primary applications where these components enable reliable, efficient operation.
Slewing Bearings in Wind Turbine Yaw Systems
The yaw system is responsible for rotating the nacelle (the housing containing the generator, gearbox, and other components) to face the wind direction. Yaw slewing bearings are among the largest and most heavily loaded bearings in a wind turbine.
Function:
Yaw slewing bearings support the entire weight of the nacelle and rotor (often exceeding 400 tons) while enabling smooth 360-degree rotation. They must withstand continuous wind loads, torque from the rotor, and the dynamic forces of yawing operations. The bearing’s large diameter—ranging from 1.5 to over 3 meters—accommodates the substantial structural interface between the nacelle and the tower.
Design Features:
- Large ring diameter to support heavy nacelle loads
- Internal or external gear teeth for drive engagement
- Corrosion-resistant coatings for protection against environmental exposure
- Robust sealing to prevent water ingress in offshore installations
Slewing Bearings in Wind Turbine Pitch Control Systems
The pitch system adjusts the angle of each rotor blade to optimize energy capture and control rotor speed. Each blade requires a pitch slewing bearing that enables precise angular adjustment.
Function:
Pitch slewing bearings connect each blade to the rotor hub, allowing individual blade rotation of approximately -5 to +90 degrees. These bearings must handle high dynamic loads from blade weight, centrifugal forces, aerodynamic pressures, and oscillating moments as blades rotate in turbulent wind conditions.
Design Features:
- High precision for accurate blade positioning
- Cross-roller configurations for exceptional rigidity and precision
- High-quality seals to protect against water intrusion at the blade root
- Compact design to fit within the limited space of the rotor hub
Slewing Bearings in Main Shaft and Other Rotating Assemblies
In some large wind turbines, the rotor assembly may require additional slewing bearings to manage heavy loads and ensure smooth rotation.
Function:
These bearings support the primary shaft that transfers rotational mechanical power from the blades to the generator. They manage radial loads from the rotor weight and axial forces from wind pressure on the blades. In direct-drive (gearless) turbines, main shaft slewing bearings must handle significantly higher loads without the assistance of a gearbox.
Design Features:
- Very large diameters suitable for heavy loads and slow speeds
- Hardened raceways (HRC 55–62) for wear resistance
- Advanced lubrication systems for extended service intervals
- Robust sealing to prevent contamination of lubricants by debris or moisture
Key Benefits of Slewing Bearings in Wind Energy Applications
The use of high-quality slewing bearings delivers substantial operational, economic, and safety benefits across the wind energy sector.
Reliability in Harsh Environments
Wind turbines face relentless environmental challenges: corrosive saltwater (offshore), temperature extremes, moisture, and airborne particles. Slewing bearings engineered with hardened raceways, corrosion-resistant materials, and advanced sealing systems provide the reliability needed for 20+ year operations.
Reduced Maintenance Costs
Wind turbine maintenance is expensive, particularly offshore where specialized vessels and skilled technicians are required. High-quality slewing bearings with proper lubrication and sealing significantly extend maintenance intervals, reducing operational costs and downtime.
Improved Energy Capture
The precision rotation enabled by slewing bearings directly impacts energy capture. Yaw slewing bearings allow accurate alignment with wind direction, while pitch slewing bearings enable optimal blade angles for maximum aerodynamic efficiency. These precision benefits translate into increased annual energy production.
Extended Turbine Lifespan
Slewing bearings are integral to the structural integrity of wind turbines. By managing loads effectively and preventing excessive wear, they help extend the overall lifespan of the turbine, maximizing return on investment for wind farm operators.
Enhanced Safety
The critical load-bearing role of slewing bearings contributes to safe turbine operation. Reliable bearings reduce the risk of catastrophic failures that could cause tower collapse, blade damage, or equipment loss.
Ongoing Cost Optimization
Over a wind turbine’s 20-year service life, the initial cost of slewing bearings and their ongoing maintenance represents a small fraction of total lifetime expenses. Investing in premium bearings pays for itself through reduced maintenance, increased uptime, and enhanced energy production.
Conclusion
Slewing bearings are indispensable components in modern wind turbines, enabling the precise rotational movements that drive energy production while withstanding the punishing conditions of wind farm environments. From yaw systems that orient turbines into the wind to pitch systems that optimize blade performance and main shaft assemblies that transfer power, slewing bearings support every critical rotating function.
The careful selection of bearing type—whether single-row four-point contact, double-row ball, cross-roller, or three-row roller—directly influences turbine performance, reliability, and maintenance requirements. As wind turbines continue to grow in size and capacity, the demands placed on slewing bearings will only increase, making high-quality manufacturing and proactive maintenance more important than ever.
Wind farm operators, turbine manufacturers, and maintenance providers who prioritize slewing bearing quality and care can expect reduced downtime, lower operational costs, and enhanced energy output—benefits that compound across the turbine’s operational lifespan.
Why Choose LDB as Your Wind Turbine Slewing Bearing Manufacturer?
LDB (Luoyang Longda Bearing Co., Ltd.) has been a trusted manufacturer of precision slewing bearings since 1999, with extensive experience serving the wind energy industry.
Why LDB Stands Out:
- Specialized Expertise: LDB has established a reputation for producing high-quality slewing bearings with deep engineering knowledge of wind turbine applications.
- Comprehensive Product Range: LDB manufactures all major slewing bearing types used in wind turbines: single-row four-point contact ball bearings, double-row ball bearings, cross-roller bearings, and three-row roller bearings. Diameters range from 150mm to 4000mm.
- Advanced Manufacturing: LDB’s production facility is equipped with nearly 30 sets of manufacturing and inspection equipment, enabling precise machining with ≤0.01mm runout and hardened raceways reaching HRC 55–62.
- Quality Assurance: LDB holds ISO9001:2015 certification from German TUV, with strict quality controls implemented throughout the entire production process—from raw material inspection to final product testing.
- Global Reach: 90% of LDB products are exported to 73 countries and regions, with established agents in India, Iran, Turkey, Russia, and other locations.
- Customized Solutions: LDB offers tailored slewing bearing solutions including corrosion-resistant coatings, specialized seal kits, and material selections optimized for onshore or offshore wind turbine applications.
- Comprehensive Support: LDB provides full lifecycle service including engineering consultation, customized design, production progress management, quality documentation, packaging, logistics, and after-sales technical support.
Contact LDB Today
Whether you are designing new wind turbines, replacing existing bearings, or seeking maintenance solutions, LDB’s experienced team is ready to assist. Contact LDB to discuss your project requirements, request a quotation, or receive expert technical guidance for wind turbine slewing bearings.
FAQs About Slewing Bearings in Wind Turbines
What role do slewing bearings play in wind turbines?
Slewing bearings enable the rotational movements essential for wind turbine operation: yaw rotation to orient the turbine into the wind, pitch rotation to adjust blade angles, and main shaft rotation to transfer power from the rotor to the generator.
What types of slewing bearings are used in wind turbines?
The main types include single-row four-point contact ball bearings (yaw and pitch systems), double-row ball bearings (high-load applications), cross-roller bearings (pitch systems requiring precision), and three-row roller bearings (largest turbines and main shaft applications).
Why are slewing bearings critical for wind turbine reliability?
Slewing bearings support massive loads while enabling precise rotational movements. Their durability directly affects turbine reliability and maintenance requirements, especially in offshore environments where repair access is difficult.
How do slewing bearings improve wind turbine efficiency?
Slewing bearings enable precise yaw alignment with wind direction and accurate blade pitch control, maximizing energy capture. Smooth rotation also reduces friction losses, improving overall turbine efficiency.
What maintenance is required for wind turbine slewing bearings?
Regular lubrication with appropriate grease, seal inspection, bolt torque verification, and periodic raceway condition monitoring are essential for extending bearing service life.
Why choose LDB as a wind turbine slewing bearing supplier?
LDB offers ISO9001:2015 certified quality, extensive manufacturing experience since 1999, a full range of bearing types up to 4000mm diameter, customized solutions for onshore and offshore applications, and proven global export capability to 73 countries.
