A Double Row Ball Slewing Bearing is a rotational rolling-element bearing with two rows of steel balls that contact the raceways at varying angles. Compared to single-row designs, double row slewing bearings offer higher axial and radial load capacity and are especially suited for applications requiring robust and stable support under heavy-duty operations.
This bearing type is widely used in construction equipment, port machinery, and wind power systems where high load demands, space efficiency, and long service life are essential.
Structural Advantages
Enhanced Load Distribution Two rows of balls provide more contact points, distributing loads more evenly across the raceways and improving bearing rigidity and rotational accuracy.
Increased Axial and Radial Load Capacity Double row ball designs can handle higher axial and tilting moment loads than four-point contact bearings, making them ideal for large cranes, rotary drills, and offshore platforms.
Vibration and Shock Resistance The enhanced structure improves resistance to external shock and vibrations, ensuring operational safety in harsh environments.
Gear Customization LDB provides these bearings with internal gear, external gear, or gearless designs to fit specific application needs.
Common Applications
Truck Cranes and Tower Cranes: Supporting large, rotating superstructures under dynamic loading conditions.
Harbor and Container Machinery: Handling high-speed, high-frequency operations.
Large Excavators and Rotary Drilling Rigs: Providing stable rotation for precision digging and drilling.
Wind Power Equipment: Used in yaw and pitch systems to support nacelle rotation.
LDB’s Double Row Ball Slewing Bearing Highlights
LDB Bearing manufactures its double row ball slewing bearings with high-grade materials like 42CrMo for rings and GCr15 for balls. All raceways are precision-ground, and surface hardening ensures durability under extreme loads.
Technical Parameters:
Outer Diameter Range: 500 mm to 6000 mm
Ball Row Configurations: Equal diameter or stepped ball rows for customized force management
Sealing: Labyrinth and contact seals for dust and water ingress protection
Lubrication: Factory-lubricated with optional automatic greasing systems
LDB also supports customer-specific bolt hole layouts, custom sealing systems, and integrated gear teeth hardening.
Pricing, Supplier, and Manufacturer Information
LDB Bearing is a leading manufacturer and supplier of high-load slewing rings, including double row ball slewing bearings, with over 20 years of experience. Located in Luoyang, China, LDB supplies to more than 50 countries across construction, energy, and port logistics industries.
Price Factors Include:
Outer diameter and thickness
Gear type and material selection
Surface coating and sealing configuration
Custom options and volume
Typical price ranges from USD 800 to USD 5000 depending on the specification. Clients can request quotations and CAD drawings directly via LDB’s website.
Why Choose LDB?
In-house manufacturing and heat treatment
Fast production cycles and global shipping
ISO 9001-certified QA system
Responsive pre- and post-sales engineering support
Whether you’re integrating slewing bearings into a crane, drill rig, or wind turbine, LDB’s double row ball slewing bearings provide the performance and reliability required for continuous operation.
Conclusion
Double Row Ball Slewing Bearings represent a perfect combination of strength, flexibility, and durability. With LDB’s engineering expertise and proven quality, your machinery can reach new heights of stability and load capacity. Choose LDB for world-class slewing solutions built to last.
A double row ball slewing bearing is a large-diameter rotational bearing that contains two rows of steel balls arranged in staggered or parallel configurations. These bearings are designed to simultaneously support axial, radial, and moment loads with enhanced stability and durability, making them ideal for large industrial machinery and heavy-equipment applications.
Unlike single-row slewing rings, the double-row design increases load-bearing capacity, improves torque resistance, and ensures smoother rotational behavior under dynamic and static forces.
Why Choose a Double Row Ball Slewing Bearing?
Increased Load Capacity
With two raceways and more rolling elements, double-row designs can handle up to twice the load of standard single-row bearings, especially in crane booms, excavators, and drilling rigs.
Improved Rotational Stability
The additional row of balls provides better resistance to tilting moments and ensures more even distribution of forces along the raceway, minimizing deflection.
Versatile Gear Configurations
These bearings are available with:
External gear teeth
Internal gear teeth
Non-geared (for separate drive systems)
Gear modules can be tailored to match the application’s torque and speed requirements.
Lower Maintenance Costs
Longer service life and reduced stress per ball lead to fewer replacements and less downtime.
Common Application Scenarios
Industry
Application
Construction
Excavators, mobile cranes, piling rigs
Marine Engineering
Deck cranes, offshore hoisting systems
Wind Energy
Yaw drives in onshore wind turbines
Tunneling Equipment
TBMs, rotating platforms
Forestry & Logging
Heavy-duty loaders, cutters
LDB Double Row Slewing Bearing Lineup
As a globally recognized manufacturer and supplier, LDB offers a full spectrum of double row slewing bearings from 800 mm to 4500 mm in diameter, including:
Parallel ball row configuration for symmetric loads
Different diameter row design for unbalanced loads or compact envelopes
Induction-hardened raceways and gear teeth
Integrated seals for dusty or corrosive environments
Custom bolt hole patterns and flange connections
Key Specs:
Axial load rating: Up to 6000 kN
Moment load: Up to 1000 kNm
Rotation speed: ≤ 1 rpm (typical for heavy-duty use)
Gear module: M5 – M20 (custom available)
Typical Price Range & Procurement Tips
Factors that affect price:
Gear configuration (external/internal/none)
Precision and hardness requirements
Quantity of units and project timeline
Certifications required (e.g., CCS, DNV, CE)
Typical Price Range: USD $1,200 – $12,000 per unit Request a quote and 2D/3D CAD files at www.ldb-bearing.com.
Engineering and Support Services from LDB
LDB offers:
Bearing simulation and lifetime calculation reports
OEM interface consultation for cranes and excavators
Fast prototyping and batch delivery for heavy industry clients
Custom lubrication systems and sealing designs
All products undergo full dimensional inspection, gear mesh analysis, and torque verification before shipment.
Why LDB Is a Trusted Partner
20+ years in slewing bearing manufacturing
Exported to over 50 countries across 5 continents
In-house forging, heat treatment, CNC machining
Proven performance in construction, energy, and defense sectors
On-time delivery and technical training available globally
Installation & Maintenance Advice
Mount on a flat, rigid surface to avoid raceway deformation
Use calibrated torque wrenches for bolt tightening
Apply thread locking compound to prevent loosening
Re-grease periodically based on load and rotation frequency
Conclusion
Double row ball slewing bearings provide the extra strength and rotational consistency needed in demanding environments. Whether you’re lifting, rotating, or supporting multi-ton structures, their robust construction and dual-row advantage make them a smart investment.
LDB’s engineering-driven manufacturing and application expertise help clients reduce lifecycle costs and boost machinery performance. Choose LDB for safe, strong, and stable solutions.
A Customized Spur Gear Drive refers to a rotary actuator engineered to meet unique project requirements beyond standard specifications. Unlike generic gear units, these drives are tailored in terms of gear ratio, housing dimensions, material composition, motor interface, and control system integration to match the specific mechanical, environmental, and operational needs of a customer’s application.
For high-precision automation, specialty energy systems, or unconventional motion control challenges, customization ensures maximum performance and reliability.
Customization Options and Technical Benefits
Gear Ratio and Tooth Profile Design Custom gear ratios enable fine-tuned torque and speed control, while special tooth profiles reduce noise and enhance durability.
Housing Configuration and Materials Select from cast aluminum, hardened steel, or marine-grade alloys depending on the installation environment and weight limits.
Backlash and Accuracy Levels Drives can be specified with backlash below 0.05° for applications requiring precise stopping, such as surveillance or metrology equipment.
Motor and Encoder Integration Interfaces for servo, stepper, planetary, or hydraulic motors. Optional feedback loops with encoder or resolver compatibility.
Environmental Sealing and Coatings IP65/IP67 rated options with anti-rust coatings or anodizing to suit desert, arctic, offshore, or clean-room use.
Mounting Interfaces and Footprints Custom flanges, bolt patterns, and through-holes for seamless fit into client machine frames or architectural constraints.
Industries That Benefit from Spur Gear Drive Customization
Medical Equipment Manufacturers: Imaging systems, patient tables, and surgical platforms
Solar and Wind Energy: Terrain-optimized tracker mounts and adjustable collector angles
Entertainment and Staging: Theatrical effects, rotating stages, and projection mounts
Defense and Aerospace: Lightweight but strong motion units for radar, sensors, or launch alignment
Warehouse Automation: Compact turntables, shuttles, and AGVs with custom payload limits
LDB’s Spur Gear Drive Customization Expertise
As a globally recognized manufacturer and innovative supplier, LDB delivers customized spur gear solutions from concept to commissioning. Our engineering process includes:
Full 3D CAD modeling and motion simulation
In-house CNC gear shaping and housing fabrication
Backlash tuning and dynamic balance testing
Custom motor flange and adapter kits
Sizes range from 80 mm to 1,000 mm in diameter, with torque capacities from 100 Nm to 120,000 Nm.
Price Overview: Factors That Impact Cost
Pricing Influencers:
Gear precision and surface treatment
Material selection and custom sealing
Mounting/motor complexity
Production quantity and delivery timelines
Typical Price Range: USD $300 – $15,000 depending on project scope and customization depth.
Clients may request RFQs via www.ldb-bearing.com, with free design feasibility consultations included.
Why Choose LDB for Customized Spur Gear Drives?
Decades of gear system engineering across industries
Agile production with short lead times and small MOQ
Verified success in automation, transport, and renewable energy sectors
Strong support team for prototyping, testing, and after-sales
LDB’s custom spur gear drives are currently in service in UAV platforms, solar thermal plants, and entertainment venues from North America to the Middle East.
Conclusion
For motion control systems that can’t settle for standard, LDB’s Customized Spur Gear Drives deliver precision-engineered flexibility. With proven manufacturing expertise and global support, LDB is your go-to supplier and trusted manufacturer for advanced rotational solutions.

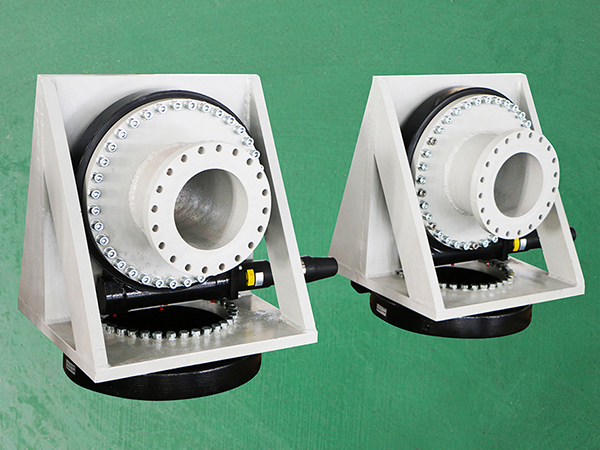

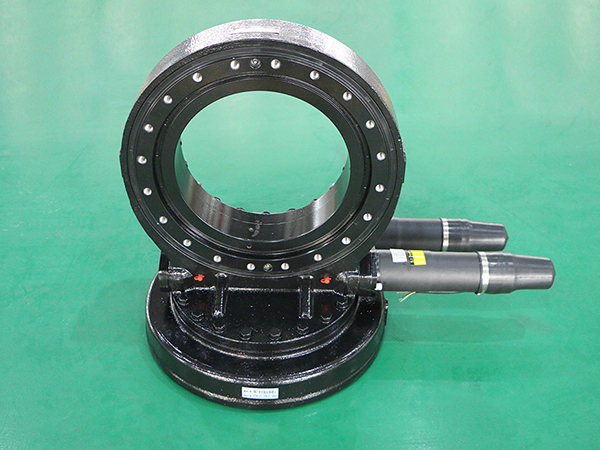

A customized slewing drive is a specially engineered rotational actuator that has been adapted from a standard model to meet specific requirements in terms of size, gear configuration, mounting interface, sealing, load capacity, or environmental resistance.
While standard slew drives from manufacturers like LDB cover a wide range of applications—from solar tracking to heavy equipment—many real-world projects involve non-standard dimensions, higher-than-average torque demands, or space constraints that require bespoke solutions.
If you’re designing equipment for aerospace, military defense, tunnel boring, marine cranes, or advanced automation, customized slewing drives ensure performance, fit, and reliability without compromise.
Why Consider a Custom Slew Drive Instead of a Standard Model?
Limitation in Standard Model
Solution Through Customization
Mounting holes don’t match frame
Custom bolt pattern or adapter plate
Torque is insufficient
Increased worm gear size or dual input
Too large or too heavy
Lightweight housing or compact gear profile
Need continuous rotation
Slip ring or special gear design integration
Harsh environment (marine, desert)
Special seals, coatings, materials
Unusual speed ratio
Modified gear ratio or spur gear configuration
LDB’s Custom Slew Drive Capabilities
As a certified manufacturer and global supplier, LDB offers full-cycle customization services including:
Design-to-spec engineering
Material selection (e.g., stainless steel, 42CrMo, or composite)
Custom gear machining (worm and ring gears)
Non-standard torque and speed configurations
Motor interface compatibility (hydraulic, AC, DC, planetary gearheads)
Sealing, paint, and corrosion resistance upgrades
LDB supports slewing drive customization in spur gear, worm gear, and dual-worm gear systems.
Typical Industries That Require Customized Slew Drives
Custom drives are priced based on design complexity, volume, and required modifications.
Customization Level
Price Range (USD)
Notes
Minor (mounting, flange)
+10%–15% over standard
E.g., different bolt pattern
Medium (gear ratio, material)
+20%–30%
E.g., stainless steel worm
Full Custom Drive
$1000 – $5000+
Based on 3D CAD spec and testing
For accurate pricing, LDB provides a full pre-sale evaluation, drawing service, and torque/load simulation at no charge.
Supplier Insights: LDB’s Custom Engineering Process
Requirement Collection Torque, speed, installation space, motor type, application use case
Preliminary Drawing Proposal 2D layout and 3D CAD for validation
Engineering Review & Quotation Performance and material selection + final offer
Production & Testing CNC machining, heat treatment, torque test, and QC
Packaging & Global Delivery
All LDB customized drives are traceable by serial number and comply with ISO, CE, and SGS standards.
Why Choose LDB for Slew Drive Customization?
20+ years of industry experience
Full in-house engineering and testing team
Fast sample turnaround: 2–4 weeks
Strong after-sales support and warranty
Trusted by OEMs in over 60 countries
Whether you need 50 units for a robotics fleet or one precision actuator for a new machine prototype, LDB is your trusted partner.
Conclusion
When a standard slew drive doesn’t fit your application’s torque, dimension, or environmental needs, customization is the key to performance and efficiency. LDB’s proven ability to deliver tailor-made solutions ensures your equipment operates flawlessly—whether in the desert sun, ocean spray, or factory floor.
Contact LDB today to begin your custom slew drive consultation and bring your idea to rotation.
Customized Slewing Drives: When Standard Models Don’t Fit Your Application
What Are Customized Slewing Drives?
A customized slewing drive is a specially engineered rotational actuator that has been adapted from a standard model to meet specific requirements in terms of size, gear configuration, mounting interface, sealing, load capacity, or environmental resistance.
While standard slew drives from manufacturers like LDB cover a wide range of applications—from solar tracking to heavy equipment—many real-world projects involve non-standard dimensions, higher-than-average torque demands, or space constraints that require bespoke solutions.
If you’re designing equipment for aerospace, military defense, tunnel boring, marine cranes, or advanced automation, customized slewing drives ensure performance, fit, and reliability without compromise.
Why Consider a Custom Slew Drive Instead of a Standard Model?
Limitation in Standard Model
Solution Through Customization
Mounting holes don’t match frame
Custom bolt pattern or adapter plate
Torque is insufficient
Increased worm gear size or dual input
Too large or too heavy
Lightweight housing or compact gear profile
Need continuous rotation
Slip ring or special gear design integration
Harsh environment (marine, desert)
Special seals, coatings, materials
Unusual speed ratio
Modified gear ratio or spur gear configuration
LDB’s Custom Slew Drive Capabilities
As a certified manufacturer and global supplier, LDB offers full-cycle customization services including:
Design-to-spec engineering
Material selection (e.g., stainless steel, 42CrMo, or composite)
Custom gear machining (worm and ring gears)
Non-standard torque and speed configurations
Motor interface compatibility (hydraulic, AC, DC, planetary gearheads)
Sealing, paint, and corrosion resistance upgrades
LDB supports slewing drive customization in spur gear, worm gear, and dual-worm gear systems.
Typical Industries That Require Customized Slew Drives
Custom drives are priced based on design complexity, volume, and required modifications.
Customization Level
Price Range (USD)
Notes
Minor (mounting, flange)
+10%–15% over standard
E.g., different bolt pattern
Medium (gear ratio, material)
+20%–30%
E.g., stainless steel worm
Full Custom Drive
$1000 – $5000+
Based on 3D CAD spec and testing
For accurate pricing, LDB provides a full pre-sale evaluation, drawing service, and torque/load simulation at no charge.
Supplier Insights: LDB’s Custom Engineering Process
Requirement Collection Torque, speed, installation space, motor type, application use case
Preliminary Drawing Proposal 2D layout and 3D CAD for validation
Engineering Review & Quotation Performance and material selection + final offer
Production & Testing CNC machining, heat treatment, torque test, and QC
Packaging & Global Delivery
All LDB customized drives are traceable by serial number and comply with ISO, CE, and SGS standards.
Why Choose LDB for Slew Drive Customization?
20+ years of industry experience
Full in-house engineering and testing team
Fast sample turnaround: 2–4 weeks
Strong after-sales support and warranty
Trusted by OEMs in over 60 countries
Whether you need 50 units for a robotics fleet or one precision actuator for a new machine prototype, LDB is your trusted partner.
Conclusion
When a standard slew drive doesn’t fit your application’s torque, dimension, or environmental needs, customization is the key to performance and efficiency. LDB’s proven ability to deliver tailor-made solutions ensures your equipment operates flawlessly—whether in the desert sun, ocean spray, or factory floor.
Contact LDB today to begin your custom slew drive consultation and bring your idea to rotation.
https://www.ldb-bearing.com/wp-content/uploads/2025/07/508.jpg600900ldbadminhttps://www.ldb-bearing.com/wp-content/uploads/2021/06/l.pngldbadmin2025-07-21 16:30:422025-07-21 16:30:45Customized Slewing Drives: When Standard Models Don’t Fit Your Application
Slew Drive Customization refers to the process of designing and engineering a slewing drive unit specifically tailored to meet unique mechanical, environmental, or performance requirements. Rather than relying solely on off-the-shelf solutions, customization enables manufacturers and engineers to optimize torque capacity, gear ratios, mounting interfaces, sealing levels, and motor compatibility for specific applications.
From high-speed robotics to extreme-climate solar systems, custom slew drives ensure operational success where standard models fall short.
Key Customization Features
Gear Ratio Adjustments Custom gear ratios can optimize torque-speed balance, enabling efficient energy usage and precise positioning.
Housing and Material Selection Options include stainless steel for corrosion resistance, aluminum alloy for lightweight performance, and coated cast iron for cost efficiency.
Mounting Interfaces and Dimensions Flange holes, through-hole diameters, and footprint geometry can be modified to fit seamlessly into your system architecture.
Motor Integration Options Support for stepper motors, servo systems, hydraulic motors, or proprietary motor mounts. Pre-integrated drives also available.
Seal Type and IP Rating Seal upgrades (e.g., IP67 or higher) allow the slew drive to function in sub-zero, marine, or high-dust environments.
Encoder, Brake, and Sensor Integration Custom solutions can include absolute/relative encoders, electromagnetic brakes, and smart sensors for closed-loop control.
Common Industries That Require Custom Slew Drives
Military & Defense Systems: Radar stations, missile launchers, and targeting equipment
Aerospace and Satellite Tracking: High-speed, low-friction rotation under vacuum or variable gravity
Oil and Gas: Offshore platform rotation, drilling automation, and corrosive atmosphere tolerance
Large-Scale Solar Fields: Customized drives for heliostats or terrain-specific mounting structures
Automated Logistics & Robotics: AGVs, pick-and-place arms, and warehouse shuttles
LDB’s Custom Slew Drive Solutions
As a leading manufacturer and engineering-driven supplier, LDB provides end-to-end customization services tailored to your project’s lifecycle. Our in-house R&D, gear cutting, and CNC machining capabilities allow us to deliver:
Fully customized drives from 3″ to 30″ diameter
Torque output from 500 Nm to over 100,000 Nm
Multi-axis assemblies and modular system integration
Application-specific housing and lubrication systems
Custom packaging, serial tracking, and compliance certification
All units undergo performance simulation and dynamic load testing before delivery.
Price Considerations for Customized Slew Drives
Customization impacts cost based on design complexity, production volume, and material usage. However, the operational ROI often justifies the initial investment.
Typical Price Range: USD $450 to $12,000 per unit, depending on specifications and order quantity.
Request a quote or submit technical drawings at www.ldb-bearing.com for accurate costing.
Why LDB for Slew Drive Customization?
Over 20 years of manufacturing experience in slewing technology
Dedicated application engineers and rapid prototyping
Flexible order quantities and fast tooling turnarounds
Global shipment with CE, ISO, and export documentation
Our custom drives are now operating in utility-scale PV systems in California, telescopic crane booms in Dubai, and autonomous radar vehicles across Eastern Europe.
Conclusion
Custom Slew Drives bridge the gap between unique engineering requirements and real-world performance. LDB’s precision customization services deliver targeted motion control where it matters most. Whether for innovation, scale, or resilience—LDB is the manufacturer and supplier you can trust to build exactly what you need.
A cross roller slewing bearing is a type of precision rotational bearing that features cylindrical rollers arranged alternately in perpendicular (90-degree) orientations between two raceways. This crossed arrangement allows the bearing to simultaneously handle axial, radial, and moment loads while maintaining high rigidity and minimal rotational clearance.
Because of their compact structure and high rotational accuracy, cross roller slewing bearings are widely used in equipment where both precision and load-bearing capacity are critical. This includes medical imaging systems, industrial robots, radar antennas, and machine tools.
Unique Benefits of Cross Roller Slewing Bearings
High Rigidity in a Compact Form
The orthogonal roller arrangement offers significantly higher stiffness compared to ball slewing bearings, even in small spaces. This allows for precise control of rotation under load.
Accurate Positioning
Thanks to their low friction and backlash, cross roller slewing bearings provide smooth, accurate rotation—making them ideal for devices requiring high repeatability.
Combined Load Support
These bearings efficiently manage axial, radial, and tilting moment loads at the same time, reducing the need for multiple bearing sets or complex assemblies.
Space Optimization
The compact design minimizes thickness and simplifies integration in tight enclosures—critical for surgical robots or semiconductor processing machines.
Where Are Cross Roller Slewing Bearings Used?
Industry
Use Case
Medical Equipment
CT and MRI gantry rotation, surgical robots
Robotics
Joint rotation, base turntables
Aerospace
Satellite antenna positioning systems
Optical Systems
Precision lenses and telescope tracking
CNC & Machine Tools
Rotary tables, indexing systems
Military Systems
Radar dishes, missile launcher bases
LDB’s Cross Roller Slewing Bearing Solutions
As a long-standing manufacturer and global supplier, LDB offers cross roller slewing bearings engineered for high-performance applications. Our portfolio includes:
Standard cross roller slewing bearings with outer diameters from 200mm to 1500mm
Geared and non-geared configurations (internal, external, or gearless)
Split-type designs for easy maintenance in compact structures
Preloaded systems for zero-backlash motion
Stainless steel options for cleanroom and medical use
Design Highlights:
Integrated sealing rings
Ultra-smooth raceway grinding
Precision heat-treated rollers
Dual-row or tapered cross roller configurations for added capacity
LDB’s cross roller series is trusted by clients in Japan, Germany, and the US for applications where failure is not an option.
Pricing and Procurement Considerations
Price factors include:
Diameter and load rating
Gear module and accuracy grade
Coating (e.g., phosphate, black oxide, nickel-plated)
Customization of bolt holes or preload
Typical Price Range: USD $500 – $5,000 per unit (High-precision or large-diameter types may vary above this range.)
When selecting a cross roller slewing bearing, consult your manufacturer or supplier for 3D models, load-life calculations, and installation drawings.
Ensure flatness and parallelism of the mounting surface
Do not apply force directly on the bearing face during installation
Use torque-controlled tightening on bolts
Apply uniform preload where applicable
Lubricate thoroughly before first use and follow re-greasing intervals
Why Choose LDB for High-Precision Bearings?
20+ years of bearing production excellence
In-house design and manufacturing for special orders
Strict quality control with full traceability
ISO 9001, CE, and medical device component certifications
Rapid response on RFQs and technical consultations
LDB’s cross roller slewing bearings meet the world’s most demanding requirements—from operating rooms to orbital satellites.
Final Thoughts
When accuracy and reliability are non-negotiable, cross roller slewing bearings are the solution. Their ability to combine precision, strength, and compact form makes them indispensable in today’s high-tech machinery.
LDB brings decades of experience and a global network to support your project from design through delivery. Let us help you build smoother, stronger, smarter motion systems.
A Cross Roller Slewing Bearing is a type of rotational bearing where cylindrical rollers are alternately arranged at 90° to each other between inner and outer rings. Unlike traditional ball bearings, the cross-roller configuration enables ultra-high stiffness, smooth motion, and precise load management in both axial and radial directions—plus tilting moments. This makes them especially suitable for applications that require compact size, minimal backlash, and excellent positioning accuracy.
Cross roller slewing bearings are often used in robotics, precision turntables, radar systems, and aerospace testing equipment.
Structural Advantages
Crossed Roller Design The alternating 90° roller orientation allows the bearing to support loads in every direction—axial, radial, and moment—simultaneously.
High Rigidity and Minimal Deformation Roller line contact ensures load is spread evenly across raceways, minimizing elastic deformation and enhancing operational precision.
Compact Profile with High Load Capacity Despite its slim cross-section, this bearing type achieves exceptional stiffness and load-bearing capability.
Precision Rotation Cross roller bearings maintain minimal runout and backlash, which is critical for automated machinery and motion control systems.
Multiple Mounting Options Available with internal gear, external gear, or gearless configurations, as well as flanged and split-ring designs.
Application Scenarios
Industrial Robots and Welding Arms: For smooth, backlash-free movement in articulated joints.
Machine Tool Rotating Tables: Ensuring high positioning accuracy during complex machining.
Medical Equipment: In surgical robots and imaging systems where vibration-free motion is essential.
Aerospace Test Platforms: For structural and vibration analysis systems with high stability needs.
Radar and Satellite Dishes: Enabling stable tracking in precision positioning applications.
LDB’s Cross Roller Slewing Bearings
As a premium slewing bearing manufacturer, LDB designs and produces high-performance cross roller slewing bearings using ultra-precise machining, induction hardening, and roller preloading processes.
Raceway Material: Forged and hardened 42CrMo or 50Mn
Sealing System: Contact and labyrinth seals for indoor/outdoor use
Lubrication: Pre-filled with grease, with optional oiling ports
LDB also offers preload customization, non-standard geometries, and hybrid ceramic roller solutions for demanding environments.
Pricing, Supplier, and Manufacturer Information
LDB is a globally trusted supplier and manufacturer of cross roller slewing bearings. Our products are backed by ISO 9001 certification, advanced testing, and rapid global logistics.
Pricing Influencers:
Roller diameter and quantity
Bearing size and gear configuration
Precision class and preload settings
Custom coating and corrosion protection options
Typical Price Range: USD $250 to $3500 depending on specifications.
Engineers and procurement teams can request 2D/3D CAD models, pricing, and engineering advice through www.ldb-bearing.com.
Why Choose LDB Cross Roller Bearings?
Extreme stiffness for zero-backlash systems
High-speed rotary performance
Custom load direction optimization
Fast prototyping and small-batch production for R&D
Extensive deployment in precision and robotic industries
LDB’s cross roller bearings are field-proven in medical imaging systems, semiconductor positioning, robotic actuators, and satellite tracking mechanisms.
Conclusion
Cross Roller Slewing Bearings are the go-to choice for engineers who need ultimate accuracy, strength, and compactness. LDB delivers precision-engineered solutions that empower smart machines and critical infrastructure. For those seeking a proven supplier and precision manufacturer, LDB ensures every degree of rotation counts.
https://www.ldb-bearing.com/wp-content/uploads/2025/07/505.jpg600900ldbadminhttps://www.ldb-bearing.com/wp-content/uploads/2021/06/l.pngldbadmin2025-07-21 15:56:162025-07-21 15:56:21Cross Roller Slewing Bearings: High-Precision Rotation with Maximum Rigidity
Introduction: The Importance of Choosing the Right Gear Type
In mechanical engineering and industrial automation, gear selection is foundational to ensuring performance, efficiency, and reliability. Among the most common types of gears used in gear drives and motion systems are spur gears and helical gears. While both serve the purpose of transmitting torque and motion, they differ significantly in design, performance, application suitability, and cost.
This article compares spur and helical gears in detail, including their structural differences, functional advantages and drawbacks, cost considerations, supplier recommendations, and use cases. We also examine why LDB Bearing offers precision-manufactured spur gear drives tailored to diverse industrial needs.
Structural Overview: Spur vs. Helical Gears
Spur Gears
Teeth are straight and parallel to the gear axis
Engage simultaneously across the entire face width
Typically used in low to moderate speed applications
Helical Gears
Teeth are cut at an angle to the axis (helix angle)
Engage gradually, creating smoother torque transfer
Can handle higher speeds and loads
Performance Comparison
Noise and Vibration
Spur Gears: Noisier due to abrupt tooth engagement
Helical Gears: Quieter and smoother due to gradual meshing
Load Capacity
Spur Gears: Suitable for moderate loads
Helical Gears: Higher load-carrying capacity due to broader contact area
From a procurement perspective, spur gears are typically more cost-effective to produce due to:
Simpler manufacturing process
No need for additional axial load compensation
Lower installation and maintenance costs
Helical gears tend to be more expensive because:
More complex machining
Additional thrust bearings required
Higher-grade lubrication and thermal management
When evaluating gear pricing, it’s essential to factor in not only the unit cost but also the long-term cost of operation and maintenance. For many low- to mid-load automation tasks, spur gears offer the best value.
Supplier and Manufacturer Insights
When sourcing gear drives, consider the following:
Supplier certification: ISO, CE, and quality control standards
Manufacturer support: Custom sizing, material options, and testing documentation
Lead time and inventory: Timely availability for maintenance and expansion
Cost transparency: A good supplier will offer tiered pricing and technical support
LDB Bearing is a trusted manufacturer of spur gear drives with a proven track record in providing both standard and custom gear configurations.
LDB Bearing’s Spur Gear Drive Solutions
LDB offers a range of spur gear drives optimized for precision, efficiency, and affordability:
Product Highlights:
SG-I Spur Gear Drive: Compact, lightweight, and perfect for small automation systems
SG-M Spur Gear Drive: Mid-size unit for robotic and control applications
SG-H Spur Gear Drive: Heavy-duty, high-precision system for industrial machinery
Spur Gear Drive Customized: Fully tailored to meet unique torque, size, and mounting needs
Key Advantages:
Precision-machined gears with minimal backlash
Hardened steel for durability
Direct-from-manufacturer pricing
Available globally through certified suppliers
Decision Guide: Spur or Helical Gear?
Parameter
Spur Gear
Helical Gear
Noise Level
Moderate to High
Low
Load Handling
Medium
High
Cost
Lower
Higher
Maintenance
Simpler
More Complex
Efficiency
Higher (98–99%)
Slightly Lower (96–98%)
Preferred Use
Automation, Robotics
Automotive, Heavy Machinery
Choose spur gears if:
You need affordability and simplicity
Your system runs at moderate speeds
Precision and low backlash are priorities
Choose helical gears if:
You require higher load capacity and noise reduction
Your system runs at high speeds
You have the infrastructure to support thrust bearings
Conclusion
Both spur and helical gears have their place in industrial and automation design. Understanding their mechanical properties, cost structures, and compatibility with your specific use case is key to long-term operational success.
LDB Bearing provides dependable spur gear drives backed by expert support, precision manufacturing, and scalable production. Whether you’re equipping a new automation line or replacing an existing system, LDB’s gear drives deliver reliable performance at a competitive price.
https://www.ldb-bearing.com/wp-content/uploads/2025/07/未命名.jpg600900ldbadminhttps://www.ldb-bearing.com/wp-content/uploads/2021/06/l.pngldbadmin2025-07-18 17:31:382025-07-18 17:31:40Comparing Spur and Helical Gears: Which Is Right for Your Application?
What Are Single and Double Row Ball Slewing Bearings?
A slewing bearing is a specialized mechanical component designed to support heavy radial, axial, and moment loads while allowing smooth rotational movement. Slewing bearings are essential in construction equipment, renewable energy systems, and industrial automation.
Dual track design, with symmetric or asymmetric ball diameters
Customizable bolt hole patterns
Ideal for tower cranes, port machinery, and aerial work platforms
Application-Based Decision Making
Application
Recommended Bearing Type
Excavators and Small Cranes
Single Row
Wind Turbine Yaw Bearings
Double Row
Robotics Turntables
Single Row
Port and Ship Cranes
Double Row
Compact Machinery
Single Row
High-load Civil Engineering
Double Row
Load and Performance Comparison
Load Capacity Double row bearings can support 30–50% more load compared to their single row counterparts of similar size, due to increased ball contact and distribution.
Moment Resistance Double row designs offer superior resistance to tilting and torsional stress, ideal for applications involving significant moment loading.
Rotational Speed Single row slewing bearings generally provide higher speed performance due to reduced friction.
LDB’s Slewing Bearing Engineering Advantages
As a global manufacturer and supplier, LDB offers a wide range of both single and double row slewing bearings with:
The price of a slewing bearing depends on diameter, structure, gear type, and load requirements.
Type
Typical Diameter Range
Price Estimate (USD)
Single Row (LDB-FQ Series)
400mm–2000mm
$150 – $800
Double Row (LDB-DB Series)
800mm–3000mm
$500 – $2000+
Bulk orders, OEM customization, and expedited delivery are available from LDB at competitive factory-direct pricing.
Why Choose LDB for Slewing Bearings?
20+ years of industry experience
Global export to 60+ countries
Full engineering and after-sales support
OEM manufacturing for major crane and turbine manufacturers
Fast prototyping and 3–4 week lead times for custom models
As both a manufacturer and supplier, LDB ensures quality, availability, and cost-efficiency.
Conclusion
Whether you need a compact and cost-effective rotary bearing or a high-capacity load-bearing solution, understanding the key differences between single and double row slewing bearings is essential.
LDB helps you make informed decisions with reliable products, tailored engineering, and end-to-end service. Contact us today to get expert guidance and pricing for your next slewing bearing application.
https://www.ldb-bearing.com/wp-content/uploads/2025/07/503.jpg600900ldbadminhttps://www.ldb-bearing.com/wp-content/uploads/2021/06/l.pngldbadmin2025-07-18 17:18:042025-07-18 17:18:07Choosing Between Single Row and Double Row Ball Slewing Bearings: A Practical Guide
What is a Double Row Different Diameter Ball Slewing Bearing?
A Double Row Different Diameter Ball Slewing Bearing is a unique structural design within the slewing ring family. It features two rows of balls of unequal diameter positioned at different radii. This special configuration allows for enhanced load distribution, combining the load advantages of different ball sizes in a compact, high-performance bearing system.
This type of slewing bearing excels in applications that require simultaneous handling of high axial loads, moderate radial loads, and significant tilting moments—especially in machines where installation space is constrained.
Structural Advantages
Dual-Diameter Ball Rows By employing balls of different diameters, the load distribution is optimized for both axial and tilting moment resistance. The larger row handles heavy axial loads, while the smaller row offers increased contact points for balance and rotational precision.
Optimized Raceway Angles Each raceway is engineered with different contact angles to maximize performance under complex force combinations, delivering stability without sacrificing flexibility.
Compact and Lightweight Design Despite its dual-row structure, this bearing remains compact due to its tight axial dimensions, making it ideal for mobile equipment.
Custom Gear Integration Available with internal gear, external gear, or non-gear options, it can be adapted to the torque transmission and installation needs of different industries.
Application Scenarios
Mobile Cranes and Truck-Mounted Equipment: High axial load and dynamic shock absorption in compact designs.
Material Handling Systems: For rotating conveyors or transfer tables requiring reliable and continuous rotation.
Wind Turbine Yaw Systems: Long-lasting performance in controlling the direction of rotor alignment.
Large Rotary Platforms and Turntables: Especially useful in equipment that rotates large payloads over time.
Railway Maintenance Machines: Where vibration resistance and low-profile installation are key.
LDB’s Double Row Different Diameter Ball Slewing Bearings
LDB offers a wide range of these specialty bearings for custom and OEM applications. Manufactured in Luoyang, China, with more than 20 years of industry experience, LDB has perfected the metallurgy, precision, and gear shaping needed for demanding installations.
Technical Specifications:
Outer Diameter Range: 500 mm to 6000 mm
Ball Material: GCr15 high-carbon chromium steel
Raceway Material: Forged 42CrMo or 50Mn steel
Seals: Dual rubber sealing for IP54–IP65 protection
LDB’s products also include induction-hardened gear teeth, precision-ground raceways, and customizable hole patterns to ensure seamless integration into client systems.
Pricing, Supplier, and Manufacturer Insights
As a world-class manufacturer and supplier, LDB delivers tailored solutions across sectors such as construction, mining, energy, and automation.
Price Factors Include:
Bearing diameter and ball diameter ratio
Gear configuration (internal/external/no gear)
Custom hole patterns and surface treatments
Operating temperature and environmental sealing requirements
Typical Price Range: USD $900 to $6000 depending on design complexity, gear type, and application load requirements.
LDB provides instant supplier support through CAD files, load calculations, and global logistics. Clients can request a free consultation and quote through LDB’s official site.
Why Engineers Trust LDB
Full vertical integration: in-house heat treatment, gear cutting, and assembly
Strict QA with dynamic simulation testing
Over 2000 successful projects across 50+ countries
24-hour global support response window
From mobile cranes to energy turbines, LDB’s Double Row Different Diameter Ball Slewing Bearings offer reliable, tailored solutions backed by engineering precision and field-proven durability.
Conclusion
Balancing axial capacity and dynamic precision, the Double Row Different Diameter Ball Slewing Bearing offers a best-of-both-worlds solution. With LDB’s expertise as a trusted global manufacturer and supplier, your equipment gets the stability, flexibility, and performance it needs—without compromise.
https://www.ldb-bearing.com/wp-content/uploads/2025/07/50-2-1.jpg600900ldbadminhttps://www.ldb-bearing.com/wp-content/uploads/2021/06/l.pngldbadmin2025-07-18 16:59:502025-07-18 16:59:53Balancing Power and Flexibility: Exploring Double Row Different Diameter Ball Slewing Bearings
