VE Series Slew Drives: A Vertical Mounting Solution for Space-Constrained Applications

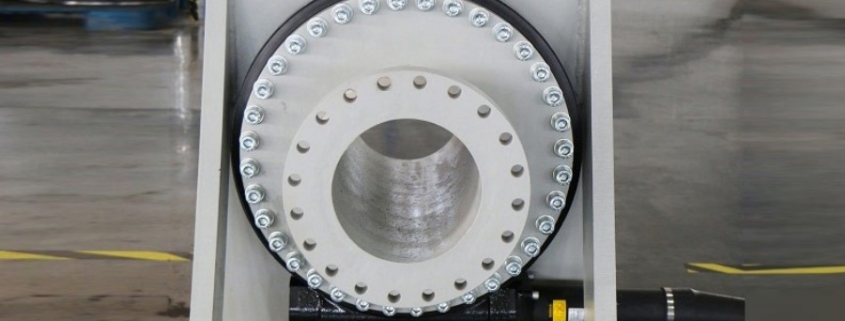

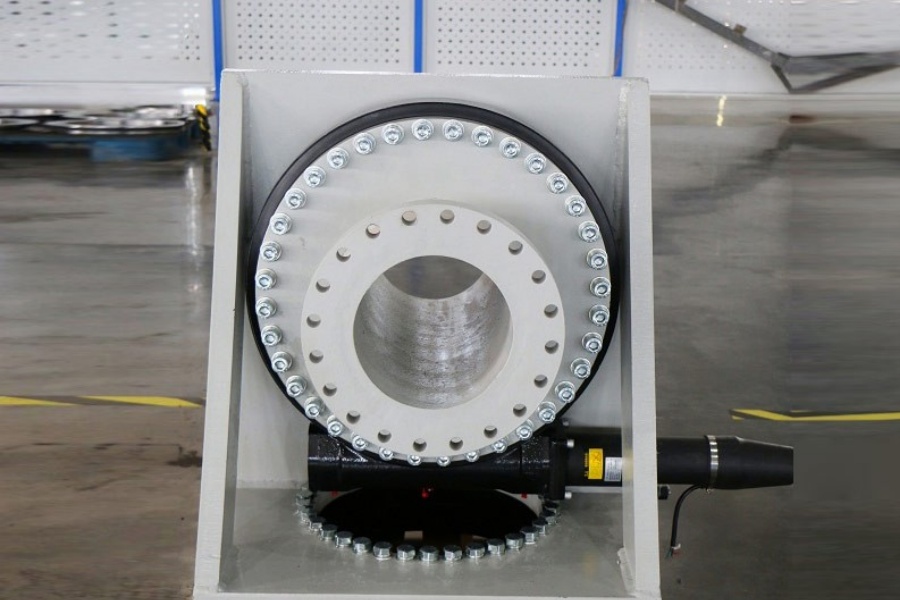

What Is a VE Series Slew Drive?
The VE Series Slew Drive—short for “Vertical Enclosed”—is a fully enclosed worm gear slewing unit engineered specifically for vertical axis mounting. With a compact profile, high torque density, and weather-resistant casing, the VE series is ideal for solar trackers, vertical booms, robotic arms, and directional antennas that require upright rotation without sacrificing reliability.
What sets VE series apart from standard slew drives is its optimized vertical mounting configuration. This means the housing, seals, and internal geometry are reinforced to manage gravity-affected loads and maintain performance over long-term vertical operation.
Key Features of VE Series Slew Drives
Vertical Axis Compatibility
VE drives are purpose-built for installation where the rotational plane is parallel to the ground. This makes them ideal for vertical tilting solar systems, signboard pivots, and telescoping structures.
Fully Sealed Enclosure
With IP65 or higher ingress protection, VE drives feature:
Aluminum or alloy steel housings
Reinforced shaft sealing
Anti-rust coatings and internal grease channels
This ensures reliability in dusty, humid, or corrosive outdoor environments.
Self-Locking Worm Gear System
The worm drive mechanism provides mechanical self-locking, meaning the load can be held in position without external braking—critical for safety and energy efficiency.
Motor Integration Options
VE drives are compatible with:
DC brushed/brushless motors
AC gearmotors
Planetary reducers or servos
They support flexible mounting configurations for OEMs across industries.
Typical Use Cases
| Application | Role of VE Series Drive |
| Vertical Solar Trackers | Tilt adjustment for concentrated PV systems |
| Signage & Billboards | Rotation and wind deflection mechanisms |
| Military Radar Systems | Directional scanning and stabilization |
| Mobile Robot Platforms | Sensor mast rotation, vertical articulation |
| Weather Stations | Anemometer and antenna control |
LDB’s VE Series Slew Drive Portfolio
As a trusted global supplier and manufacturer, LDB provides a comprehensive range of VE drives from VE3 to VE25, with custom engineering available upon request.
Key Specs:
Output Torque: 0.5 kNm to 35 kNm
Reduction Ratio: 30:1 to 100:1
Operating Temperature: -40°C to +70°C
Standard Mount: Vertical face bolt circle
Rotation Angle: 0°–360° (continuous or limited)
All VE models are factory-sealed, greased, and tested under load for guaranteed performance.
Price Range and Configuration Costs
Factors Affecting Price:
Worm gear module and backlash class
Motor mount type and adapter configuration
Housing material (cast aluminum vs. steel)
Corrosion resistance and coating type
Typical Price Range: USD $280 – $2,800 per unit
Bulk pricing and customized features may adjust this range.
LDB offers quick quote turnaround and pre-sale engineering support at www.ldb-bearing.com.
LDB’s Engineering Edge
Finite Element Analysis (FEA) for custom torque ratings
CAD-ready models for quick system integration
Compact packaging for low-profile installations
Long-life sealing system for outdoor and marine conditions
All products come with technical documentation and optional DNV, CE, or solar certification (TUV, UL, etc.) as needed.
Why Choose LDB’s VE Series?
20+ years of slewing system design and manufacturing
Integrated production from forging to final assembly
Global logistics and multilingual support
Performance guarantees with accelerated life testing
LDB VE slew drives are in use across defense, clean energy, telecommunications, and environmental monitoring applications worldwide.
Installation and Maintenance Guidelines
Ensure perpendicularity of mounting surface for best gear alignment
Use torque-limiting bolts and star-pattern fastening
Monitor ambient conditions for re-greasing intervals (3–12 months)
Avoid load shocks during commissioning to protect the worm interface
Conclusion
When vertical space is limited and performance is non-negotiable, VE Series Slew Drives offer the optimal combination of power, protection, and precision. Their design is tailored to meet the demands of upright rotational mechanisms under challenging conditions.
LDB’s VE series reflects our commitment to advanced engineering and application-specific solutions. From desert solar trackers to urban surveillance systems, LDB helps your equipment turn smart, stable, and strong.
Explore VE options or connect with an engineer today at www.ldb-bearing.com.
