What Is a Slewing Bearing for Flying Chairs?
What Is a Slewing Bearing for Flying Chairs?

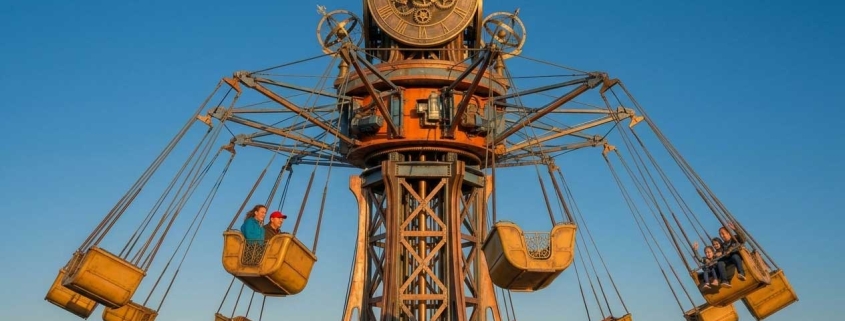

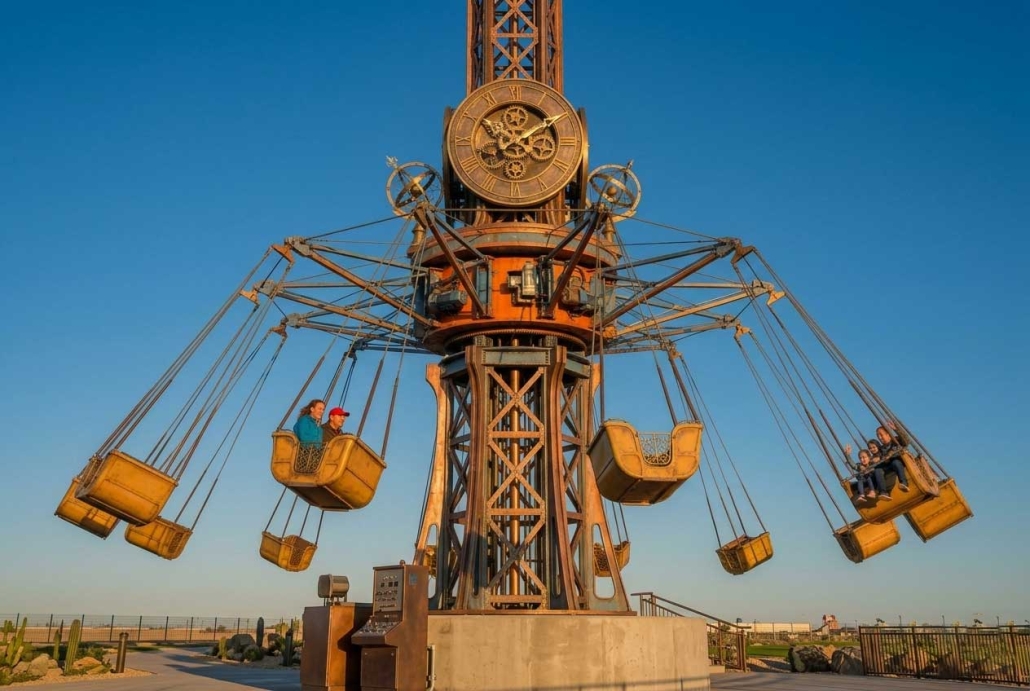

A slewing bearing for flying chairs is a large-diameter rotational component that serves as the critical connection between the stationary support tower and the rotating upper structure of a flying chair amusement ride. Also known as wave swinger or chair-o-planes, these rides feature multiple suspended chairs that rotate around a central axis while swinging outward due to centrifugal force.
The slewing bearing sits at the heart of this ride, supporting the entire rotating top structure weighing several tons while enabling smooth, continuous rotation. Unlike industrial bearings that operate in predictable conditions, a flying chair bearing must handle constantly changing loads as chairs swing in and out, passengers shift weight, and wind forces act on the ride.
Safety is paramount in amusement applications. Flying chair slewing bearings are designed with exceptionally high safety factors – typically 8 to 12 times the maximum expected load – to ensure absolutely reliable operation over decades of service. These bearings range from 1 meter to over 4 meters in diameter depending on the ride size, which can accommodate anywhere from 16 to 64 or more chairs.
Design Features of a Slewing Bearing for Flying Chairs
The design of a slewing bearing for flying chairs prioritizes safety, smooth operation, and long-term reliability in outdoor environments. Below are the key design features:
High Safety Factor – Amusement ride bearings are designed with safety factors of 8:1 to 12:1, meaning the bearing can withstand 8 to 12 times its maximum working load without failure. This far exceeds industrial standards.
Overturning Moment Resistance – Flying chairs create significant overturning moments because the load (passengers) is suspended far from the bearing center. The bearing must resist these moments while rotating continuously.
Fatigue-Resistant Raceways – The bearing undergoes millions of stress cycles during its service life. Specially heat-treated raceways (through-hardened or induction-hardened) resist rolling contact fatigue.
Low Noise Operation – Amusement rides operate near passengers and spectators. Slewing bearings for this application are manufactured with tight tolerances and smooth raceway finishes to minimize operational noise.
Weather-Resistant Sealing – Installed outdoors, these bearings face rain, snow, UV radiation, and temperature swings. Multi-lip seals prevent water ingress while retaining lubricant and preventing grease from dripping onto passengers below.
Smooth Acceleration and Deceleration – The bearing must provide consistent low friction to allow smooth starts and stops, preventing jerking motions that could unbalance the ride or discomfort passengers.
Corrosion Protection – Heavy-duty coatings such as zinc-rich primer, epoxy, or polyester topcoats protect against rust. Stainless steel rings are available for coastal theme parks.
Main Types of a Slewing Bearing for Flying Chairs
Slewing bearings for flying chairs are available in several configurations, each offering different characteristics in terms of load capacity, precision, and cost. The choice depends on ride size, number of chairs, rotational speed, and safety requirements.
four point contact ball slewing bearing is the most common type used in flying chair rides, particularly for smaller to medium-sized installations with 16 to 32 chairs. This design uses a single row of steel balls that contact the raceways at four distinct points, allowing them to handle axial loads, radial loads, and tilting moments simultaneously. The four point contact ball slewing bearing offers an excellent balance of load capacity, smooth rotation, and cost-effectiveness. It is also relatively lightweight compared to roller-type bearings, which simplifies the overall ride structure.
cross roller slewing bearing is preferred for larger flying chair rides or those requiring exceptionally smooth operation. In this design, cylindrical rollers are arranged perpendicularly to one another, with each roller alternating its orientation by 90 degrees. This crossed arrangement provides outstanding rigidity and resistance to overturning moments – a critical advantage for rides where chairs are suspended far from the center. The cross roller slewing bearing also offers lower friction than ball-type bearings, resulting in quieter operation and reduced motor power requirements. The trade-off is higher manufacturing cost, which is justified for premium rides or high-capacity installations.
double row ball slewing bearing represents a middle ground between single-row ball and crossed roller designs. It uses two independent rows of balls, distributing axial and radial loads across separate raceways. This configuration offers higher load capacity than a single-row ball bearing while maintaining good rotational smoothness. Double row ball bearings are sometimes used in flying chair rides that experience particularly high axial loads due to heavy suspended structures.
flanged slewing bearing is a variation that can be combined with any of the above rolling element configurations. It incorporates an integral flange on either the inner or outer ring, simplifying attachment to the ride’s support tower or rotating canopy. Flanged designs reduce the number of separate components and can improve overall structural rigidity.
For most flying chair applications, the four point contact ball slewing bearing is the standard choice due to its favorable combination of performance and cost. Larger rides or those demanding premium smoothness and quiet operation typically upgrade to the cross roller slewing bearing.
How Does a Slewing Bearing Work in Flying Chairs?
The working principle of a slewing bearing in a flying chair ride combines mechanical rotation with precise speed control to create a safe, enjoyable passenger experience.
Step 1: Power Generation – An electric motor (typically 15–75 kW depending on ride size) mounted on the stationary tower provides rotational power. The motor connects to a gearbox that reduces speed and increases torque.
Step 2: Gear Engagement – The gearbox output shaft drives a small pinion gear. This pinion engages with the gear ring machined into the slewing bearing. Most flying chair rides use external gear teeth on the outer ring of the bearing.
Step 3: Rotation of the Top Structure – The outer ring of the slewing bearing is bolted to the rotating canopy or top structure that holds the chairs. The inner ring is fixed to the stationary support tower. As the pinion drives the external gear, the outer ring rotates, turning the entire top assembly.
Step 4: Chair Suspension and Swing – Chairs hang from the rotating structure on chains or rigid arms. As rotation speed increases, centrifugal force pushes the chairs outward and upward. The faster the rotation, the greater the swing angle, which can reach 45 degrees or more on large rides.
Step 5: Dynamic Load Transfer – The slewing bearing must manage continuously varying loads. When chairs swing outward, they create a large overturning moment. As the ride rotates, each chair’s position relative to the bearing center changes constantly. The bearing’s rolling elements redistribute loads across the raceway in real time.
Step 6: Speed Control – A ride controller manages acceleration, operating speed, and deceleration. Smooth ramping prevents sudden load shifts that could stress the bearing or startle passengers. Typical operating speeds range from 3 to 8 rpm, with acceleration and deceleration phases lasting 10–30 seconds each.
Step 7: Braking and Parking – After the ride cycle completes, the motor brakes gradually slow the rotation. Some systems include a separate parking brake that engages when the ride is stationary, preventing unintended movement due to wind or uneven loading.
Key Advantages of a High-Quality Slewing Bearing for Flying Chairs
Investing in a premium slewing bearing for flying chairs delivers measurable benefits that impact safety, passenger experience, and operating costs:
| Advantage | Benefit |
|---|---|
| High safety factor (8-12x) | Absolute passenger safety, regulatory compliance |
| Smooth, low-friction rotation | Comfortable ride experience, reduced motor wear |
| Overturning moment resistance | Stable operation even at maximum swing angle |
| Low noise operation | Pleasant environment for passengers and bystanders |
| Weather-resistant sealing | Prevents grease drips, keeps contaminants out |
| Long service life (20+ years) | Lower total cost of ownership |
| Reliable braking and stopping | Safe loading and unloading of passengers |
Quantifiable Impact: A high-quality slewing bearing with proper maintenance can operate for over 50,000 hours – equivalent to 20–25 years of seasonal theme park operation – while maintaining smooth, quiet performance and meeting all safety standards.
How to Choose the Right Slewing Bearing for Flying Chairs
Selecting the appropriate slewing bearing for a flying chair ride requires careful evaluation of several critical factors:
Load Calculation – Calculate the total live load (passengers × average weight, typically 75–100 kg per person plus safety margin) and dead load (chair weight, canopy structure, drive components). Apply dynamic factors to account for swinging motion and centrifugal forces.
Number of Chairs – A 16-chair ride has very different load characteristics than a 64-chair ride. Larger rides require bearings with higher load ratings and larger diameters.
Overturning Moment – This is often the limiting factor for flying chair bearings. Calculate the moment created by chairs at maximum swing angle multiplied by the distance from bearing center to chair pivot point.
Rotational Speed – Operating speed (typically 3–8 rpm) determines bearing sizing for dynamic load rating. Higher speeds require larger bearings or different raceway geometries.
Outdoor Environment – Specify corrosion protection appropriate for the location: C3 for inland parks, C4 for industrial areas, C5-M for coastal theme parks. Consider UV-resistant seals and topcoats.
Safety Certification – Ensure the bearing supplier can provide documentation for relevant standards such as EN 13814 (amusement rides safety), ASTM F2291, or local regulatory requirements.
Maintenance Access – Consider how easily the bearing can be inspected and lubricated. Rides with enclosed canopies may require extended lubrication intervals or automatic lubrication systems.
Challenges & Maintenance of a Slewing Bearing for Flying Chairs
Despite robust designs, slewing bearings for flying chairs face several challenges that require proper maintenance to ensure safety and longevity.
Common Challenges
Continuous Dynamic Loading – Unlike static applications, flying chair bearings experience constantly varying loads as chairs swing and rotate. This cyclic loading can lead to fatigue over time.
Eccentric Wear – Because chairs are suspended unevenly around the circumference (loading/unloading may happen at one position), the bearing may experience uneven wear patterns.
Water and Moisture Ingress – Outdoor installation exposes the bearing to rain, humidity, and condensation. Water intrusion causes corrosion and lubricant degradation.
UV Degradation – Sunlight damages rubber seals and exposed grease fittings over time, leading to cracking and loss of sealing effectiveness.
Grease Leakage – Grease dripping from the bearing onto passengers or the ride platform is both a maintenance issue and a customer complaint concern.
Bolt Loosening – Vibration from continuous rotation can gradually loosen mounting bolts, leading to misalignment and accelerated wear.
Maintenance Best Practices
Regular Lubrication – Follow manufacturer specifications for grease type (typically lithium-based or synthetic for wide temperature range) and relubrication intervals (usually every 3–6 months for seasonal parks, monthly for year-round operation).
Seal Inspection and Replacement – Check seals every lubrication cycle. Replace cracked, hardened, or damaged seals immediately to prevent contamination ingress and grease leakage.
Bolt Torque Verification – Check all mounting bolts quarterly or per manufacturer recommendations. Use torque wrenches and mark bolts after tightening to verify movement.
Noise and Vibration Monitoring – Train operators to recognize unusual sounds (grinding, clicking, rumbling) during daily pre-operation checks. Investigate any changes immediately.
Annual Professional Inspection – Have the bearing inspected by qualified personnel annually, including raceway condition assessment, backlash measurement, and gear tooth wear evaluation.
Load Documentation – Maintain records of passenger loads, operating hours, and maintenance actions to predict bearing life and schedule replacement before failure.
LDB: A Professional Slewing Bearing Supplier for Your Project
When it comes to amusement rides like flying chairs, safety and reliability are non-negotiable. LDB Slewing Bearing has years of experience in designing and manufacturing precision slewing rings and slewing drives for applications where failure is not an option. From small family rides to large theme park attractions, LDB delivers bearings that meet the highest standards of quality and performance.
What sets LDB apart is our commitment to customization. Every flying chair ride has unique specifications: number of seats, rotational speed,悬挂 height, and local safety regulations. LDB works closely with ride manufacturers to develop fully tailored slewing bearing solutions, including integrated sealing systems to keep out rain and dust, advanced lubrication options for long service intervals, and precision gearing for smooth, quiet operation.
With a global presence and a reputation for excellence, LDB ensures that your slewing bearing arrives on time and performs flawlessly for decades. Our technical support team is always available to assist with installation, maintenance, and troubleshooting. Trust LDB – where safety meets precision in every rotation.
FAQ of Slewing Bearings for Flying Chairs
Q1: What safety factor is required for flying chair slewing bearings?
A: Amusement ride standards typically require safety factors of 8:1 to 12:1 for critical components like slewing bearings. This means the bearing is designed to withstand 8 to 12 times its maximum expected working load without failure. This far exceeds industrial bearing standards and ensures passenger safety.
Q2: How often does a flying chair slewing bearing need lubrication?
A: For seasonal theme parks operating 6–8 months per year, relubrication every 3–6 months is typical. Year-round parks should lubricate monthly. Always use the grease type specified by the bearing manufacturer – typically NLGI grade 2 lithium or synthetic grease with corrosion inhibitors.
Q3: What are the signs that a flying chair slewing bearing needs attention?
A: Warning signs include unusual noises (grinding, clicking, or rumbling) during rotation, visible grease leakage or contamination, increased vibration felt in the ride structure, uneven rotation or jerky starts/stops, and any looseness or play detected during pre-operation inspections.
Q4: Can a flying chair slewing bearing be replaced without dismantling the entire ride?
A: Replacement typically requires lifting the entire rotating canopy or top structure off the bearing, which is a major operation. Some modern ride designs include service access features, but replacement is generally a multi-day job requiring crane support. This is why preventive maintenance and early problem detection are essential.
Q5: How does LDB customize slewing bearings for flying chair applications?
A: LDB works directly with ride manufacturers to determine exact specifications: number of chairs, passenger weight assumptions, rotational speed, diameter requirements, gear tooth profile, seal type (for weather and grease retention), corrosion protection level, and safety factor targets. The result is a fully engineered slewing bearing that bolts directly onto the ride structure and meets all applicable safety certifications
