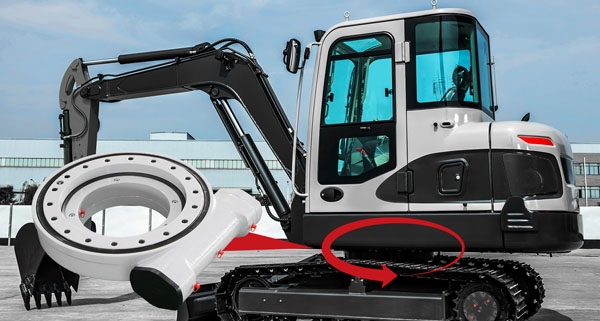

Slew Drive used in Excavators

What are slew drives used for?

What is Slew Drive?

A slew drive is a ready-to-install unit used to control the movement of a structure in a rotational manner. It consists of a motor, a gear, and a slew bearing, which enables it to handle both radial and axial loads, as well as tilting moments. Slew drives are designed to provide precise control over the rotation and positioning of a component and are known for their robustness and reliability.

Types of Slew Drive

Slew drives can be categorized based on several factors, including the type of gears used, the configuration of the drive, and the application. The most common types are:

  1. Worm Gear Slew Drives: These use a worm (a threaded cylinder) and a worm wheel (a gear with teeth that mesh with the worm). This type allows for high torque and reduction ratios, making it suitable for applications requiring slow and powerful rotations.
  2. Spur Gear Slew Drives: These involve spur gears and are typically used for applications requiring higher speed but lower torque compared to worm gear drives.
  3. Helical Gear Slew Drives: Similar to spur gears but with angled teeth, helical gears provide smoother and quieter operation with more load capacity.
  4. Dual Axis Slew Drives: These are designed to support movements around two perpendicular axes simultaneously, ideal for more complex rotations and positioning tasks.

Features of Slew Drive

  • High Load Capacity: Slew drives can handle significant radial, axial, and moment loads, making them suitable for heavy-duty applications.
  • Precision: They provide precise control over movement, crucial for applications like solar tracking and robotics.
  • Compact Design: Integrating the bearing and gear in one unit saves space and simplifies installation.
  • Versatility: They can be customized with different motors (hydraulic, electric, etc.) and sensors for various applications.
  • Robustness: Designed to withstand harsh environments, including outdoor and heavy industrial settings.

What are Slew Drives Used For?

Slew drives are used in a variety of applications, including:

  • Solar Trackers: To adjust panels to follow the sun’s movement, maximizing energy absorption.
  • Wind Turbines: To position the nacelle and blades for optimal wind engagement.
  • Cranes and Manlifts: For precise positioning of the boom and other components.
  • Rotary Tables: In manufacturing and assembly processes.
  • Satellite Dishes: To accurately position dishes for optimal signal reception.

How to Select Slew Drive

Selecting the right slew drive involves several considerations:

  1. Load Requirements: Assess the radial, axial, and moment loads the drive must support.
  2. Speed Requirements: Determine the necessary speed of rotation.
  3. Precision and Backlash: Consider the required precision and acceptable backlash.
  4. Environment: Take into account the environmental conditions (e.g., temperature, exposure to elements).
  5. Power Source: Decide on the type of motor or power source (electric, hydraulic, etc.).
  6. Size and Space Constraints: Ensure the selected slew drive fits within the available space.

Slew Drive Maintenance

Maintaining a slew drive is crucial for ensuring longevity and reliability:

  • Regular Lubrication: Ensure gears and bearings are adequately lubricated according to the manufacturer’s specifications.
  • Inspection and Cleaning: Regularly inspect and clean the slew drive to prevent dirt and debris build-up, which can lead to premature wear.
  • Check for Wear and Tear: Regularly inspect for signs of wear or damage, particularly in the gears and bearings.
  • Follow Manufacturer’s Guidelines: Adhere to the maintenance schedule and guidelines provided by the manufacturer to ensure optimal performance.

Slew drive supplier

LDB Bearing is a professional slew drive manufacturer providing high quality and price competitive slew drive and slew bearings for many applications such as solar tracker, vacuum pump trucks, excavators, manlift and more. Feel free to contact us if you are looking for slew drive for your projects.
