Custom Slew Drives: A Complete Guide to Engineered Rotary Motion Solutions

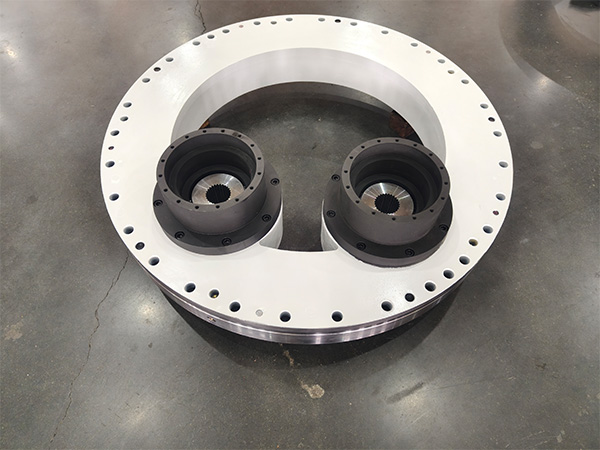

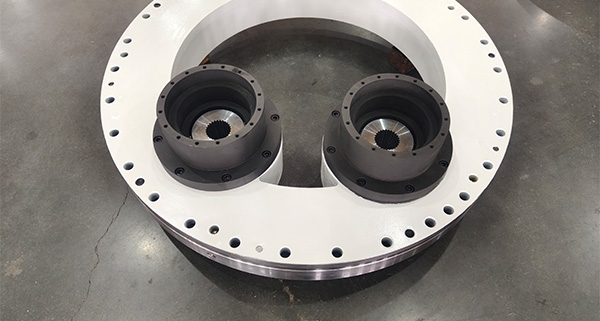

A Custom Slew Drive is a compact, highly integrated mechanical system that provides precise, high-torque rotational movement. It is an all-in-one unit that combines a slewing bearing (a large-diameter rolling-element bearing) with a worm gear mechanism, a sealing system, and often a built-in motor and hydraulic or electric brakes. Unlike off-the-shelf models, a custom slew drive is specifically engineered to meet the unique dimensional, load, and performance requirements of a particular application, offering optimized performance where standard units fall short. At its core, it is the definitive solution for applications demanding robust, reliable, and controlled rotation in a compact envelope.
What Is Slew Drive?
A slew drive is a highly engineered, compact power transmission component specifically designed to provide robust rotational movement. At its core, it is a fully integrated gearbox that masterfully combines a slewing bearing—capable of sustaining significant combined loads—with a worm gear reduction set. This unique configuration is engineered to handle high axial (thrust), radial (side), and tilting moment (overturning) loads while simultaneously delivering high output torque for slow, controlled, and powerful rotation.
At LDB Bearing, we specialize in the engineering and manufacturing of high-performance custom slew drives, providing our clients with the exact motion solution their designs demand.
The Core Components of a Slew Drive
To understand the value of customization, it’s essential to know the fundamental components of a slew drive:
- Slewing Bearing: The foundation of the drive, this bearing handles combined axial, radial, and tilting moment loads, enabling smooth rotation.
- Worm Gear Set: Comprising a precision-ground worm shaft and a worm wheel integrated into the bearing’s outer or inner ring. This set provides a high gear reduction ratio, resulting in high output torque, self-locking capability, and precise positional control.
- Housing Structure: A robust housing encloses the components, provides mounting points, and ensures structural integrity.
- Sealing System: Critical for longevity, seals protect the internal worm gear and bearing raceways from contaminants like dust, water, and debris.
- Input Drive: This is the interface for the power source, which can be an electric motor (flanged or coupled), a hydraulic motor, or a simple input shaft for a manual drive.
Why Choose a Custom Slew Drive Over a Standard Model?
While standard slew drives are suitable for some applications, the majority of advanced machinery requires a tailored approach. Here’s why a custom solution from LDB Bearing is often the superior choice:
- Optimal Space Utilization: We can design the slew drive to fit within your exact spatial constraints, whether you need a ultra-compact diameter, a low-profile height, or specific mounting flange configurations.
- Precise Load and Performance Matching: Your application’s specific load capacities (static and dynamic), required output torque, rotational speed, and backlash requirements are calculated and met precisely, ensuring neither over-engineering nor under-performance.
- Integrated Design Philosophy: A custom drive can be designed as a complete subsystem. We can integrate the motor, brakes, and feedback sensors like encoders directly, simplifying your assembly process and improving reliability.
- Harsh Environment Adaptation: For applications in mining, marine, or extreme temperatures, we specify special materials, coatings (e.g., zinc-nickel, Dacromet), and sealing solutions (e.g., Viton seals, labyrinth seals) that standard drives do not offer.
- Cost-Efficiency in the Long Run: While the initial unit cost may be higher, a custom slew drive eliminates the need for adapters, additional housings, and compromises, reducing total system cost and preventing costly field failures.
Key Engineering Considerations for Custom Slew Drives
The process of creating a custom slew drive is a detailed engineering collaboration. Key parameters we define with our clients include:
- Load Ratings: Determining the maximum axial load, radial load, and tilting moment the drive will experience is the first step.
- Gear Ratio and Output Torque: The worm gear ratio is calculated based on the input speed and the required output torque at the slew ring.
- Backlash Requirements: Precision applications like radar antennas or solar trackers require very low backlash, which influences the gear manufacturing quality and preload adjustments.
- Input Drive Configuration: Selection between hydraulic motor, various types of electric motors (e.g., IEC, NEMA), or a manual input.
- Environmental and Durability Factors: This includes IP (Ingress Protection) rating, corrosion resistance, operational temperature range, and expected service life (L10 bearing life).
The LDB Bearing Custom Slew Drive Design and Manufacturing Process
Our approach at LDB Bearing is methodical and collaborative, ensuring a perfect fit for your application.
- Application Analysis: Our engineering team works with you to understand the full context of your machine’s operation, including duty cycles, shock loads, and environmental challenges.
- Conceptual Design and Proposal: We create a 3D model and a technical proposal outlining the drive’s specifications, dimensions, and performance characteristics for your review.
- Detailed Engineering: Once approved, we proceed with detailed design, including FEA (Finite Element Analysis) for stress validation and gear geometry optimization.
- Precision Manufacturing: We utilize state-of-the-art CNC gear grinding, heat treatment processes (like induction hardening of raceways and gears), and quality-controlled assembly.
- Rigorous Testing: Every custom slew drive undergoes performance testing to verify torque capacity, backlash, seal integrity, and functional operation.
- After-Sales Support: We provide comprehensive documentation, installation guidance, and ongoing technical support.
Applications of Custom Slew Drives Across Industries
LDB Bearing’s custom slew drives are the driving force behind innovation in numerous sectors:
- Solar Trackers: Precisely orienting photovoltaic panels to follow the sun, maximizing energy generation. Customization ensures durability in outdoor environments over 25+ years.
- Wind Turbines: Used for blade pitch control and yaw systems, where reliability is non-negotiable.
- Construction & Mining Machinery: Providing rotation for cranes, excavators, and drills, built to withstand extreme shock loads and particulate contamination.
- Robotics and Automation: Enabling precise rotational movement in heavy-duty robotic arms and automated welding positioners.
- Aerospace and Defense: In satellite communication systems, radar antennas, and missile launchers, where precision, reliability, and compactness are critical.
- Material Handling: Powering the rotation of stackers, reclaimers, and industrial manipulators.
How to Select the Right Partner for Your Custom Slew Drive
Choosing a manufacturer for a custom slew drive is a critical decision. Look for a partner with:
- Proven Engineering Expertise: A team capable of performing complex load and life calculations.
- Vertical Manufacturing Capability: Control over the entire process from forging to final assembly ensures quality and cost control.
- A Robust Quality Management System: Certifications like ISO 9001 are a baseline.
- A Portfolio of Successful Projects: Evidence of experience in your industry or with similar challenges.
- Responsive Customer Service: A partner who communicates clearly and consistently throughout the project.
Conclusion: Powering Your Innovation with Precision Engineering
A custom slew drive is more than just a component; it is a critical motion subsystem that defines the performance, reliability, and efficiency of your machinery. By opting for a custom solution from LDB Bearing, you are not just purchasing a product—you are leveraging deep engineering expertise to create a perfect, optimized drive for your unique application.
Contact our engineering team today to discuss your project requirements and discover how our custom slew drives can provide the robust, reliable, and precise rotational solution your design deserves.
