High-Capacity Slewing Bearings for Single Buoy Mooring (SBM)
What Are High-Capacity Slewing Bearings for Single Buoy Mooring?
High-capacity slewing bearings are large-diameter rolling-element bearings designed to support extreme radial loads, axial loads, and overturning moments while enabling controlled rotational motion. In Single Buoy Mooring (SBM) systems, these bearings serve as the critical interface between the stationary mooring structure and the rotating turret or buoy body.

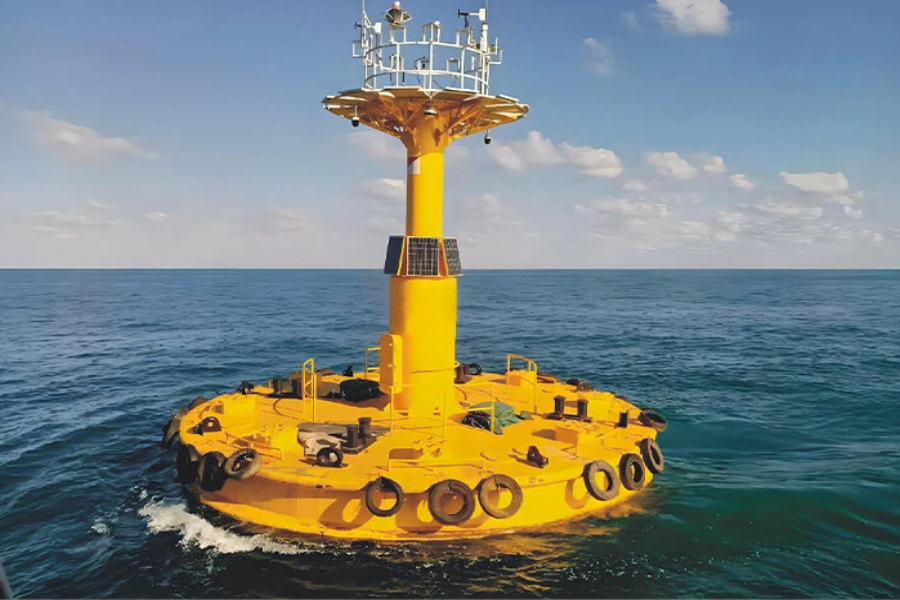

An SBM system is an offshore floating terminal that allows tankers to moor and transfer cargo (typically crude oil or liquefied natural gas) without docking at a fixed port. The vessel connects to a buoy or a turret that rotates around a fixed point, allowing the ship to weathervane—freely rotate around the mooring point to align with prevailing wind, waves, and currents. The slewing bearing at the heart of this system must accommodate the full weight of the mooring hawser, the pulling forces from the moored vessel, and the dynamic loads imposed by waves and wind, all while maintaining smooth, low-friction rotation for decades.
Unlike industrial slewing bearings used in cranes or excavators, SBM-grade high-capacity slewing bearings emphasize extreme fatigue life, corrosion resistance in seawater environments, and reliability under continuous, unattended operation. A bearing failure in an SBM system can lead to catastrophic oil spills, millions of dollars in lost revenue, and weeks of costly offshore repair work.
LDB manufactures precision slewing bearings and slew drives for offshore applications, offering custom-engineered solutions that meet the unique demands of Single Buoy Mooring systems.
Why Do Single Buoy Mooring Systems Require High-Capacity Slewing Bearings?
Single Buoy Mooring systems operate under conditions that demand significantly higher load capacity and reliability than most industrial applications. Several factors explain this requirement:
Extreme Mooring Loads – A fully loaded VLCC (Very Large Crude Carrier) can displace over 300,000 deadweight tons. The mooring forces transmitted through the hawser to the SBM buoy can exceed several hundred tons of line pull. The slewing bearing must withstand these extreme loads while maintaining rotational freedom.
Continuous Weathervaning – The moored vessel rotates around the SBM system continuously as wind, waves, and currents shift. A tanker may complete dozens of full rotations per day during a typical 24-hour mooring period. Over a 20-year design life, the slewing bearing must accommodate millions of rotation cycles without developing play, increased friction, or fatigue damage.
Unattended Offshore Operation – SBM systems are typically located miles from shore and operate without continuous human presence. Unlike industrial bearings that receive regular inspections and maintenance, SBM slewing bearings must perform reliably with minimal intervention. Offshore maintenance is expensive, dangerous, and often requires specialized vessels.
Combined Load Conditions – The slewing bearing in an SBM system simultaneously experiences axial loads (vertical weight of the buoy and mooring hawser), radial loads (horizontal vessel pull), and overturning moments (uneven loading caused by vessel motion in waves). These combined loads create complex stress patterns that demand robust bearing design.
Harsh Marine Environment – Continuous exposure to saltwater, salt spray, and marine atmosphere creates extreme corrosion conditions. Standard carbon steel bearings would fail within months due to pitting, galvanic corrosion, and stress corrosion cracking. SBM slewing bearings require advanced materials and coatings to survive decades of offshore service.
Key Features of High-Capacity Slewing Bearings for Single Buoy Mooring
Several key features distinguish high-capacity slewing bearings suitable for SBM applications:
Ultra-High Load Capacity – SBM slewing bearings are designed with larger rolling elements, more contact points, and optimized raceway geometry to handle extreme loads. Three-row roller configurations are common, with separate raceways for axial loads, radial loads, and overturning moments.
Exceptional Fatigue Life – Bearing steel must withstand millions of load cycles without developing subsurface fatigue or spalling. Premium bearing steels with controlled inclusion content (such as vacuum degassed or electroslag remelted materials) provide extended L10 fatigue life.
Corrosion Protection Systems – Multiple layers of protection include stainless steel raceways (AISI 440C or 17-4PH), zinc-rich primers, epoxy coatings, and sacrificial anodes. For the most demanding environments, LDB offers duplex stainless steel or super-austenitic grades.
Advanced Sealing – Multi-lip labyrinth seals combined with heavy-duty contact seals prevent seawater ingress while retaining lubricant. SBM slewing bearings often feature redundant sealing systems with pressure compensation to equalize internal and external pressure.
High-Precision Manufacturing – Large-diameter SBM slewing bearings (often exceeding 3–5 meters) require precision machining to maintain raceway geometry within micrometers. LDB employs CNC machining centers and induction hardening to achieve P5 tolerance class on even the largest bearings.
Integrated Gear Options – Many SBM systems require integral gearing for driven rotation during maintenance or emergency operations. LDB offers precision cut internal or external gears with AGMA Q10 quality or better.
Types of Slewing Bearings Used in Single Buoy Mooring Systems
Different SBM configurations require different slewing bearing types:
Three-Row Roller Slewing Bearings – These bearings feature three separate raceways: one for axial loads, one for radial loads, and one for overturning moments. They provide the highest load capacity and longest fatigue life, making them the standard choice for large SBM systems serving VLCCs.
Double-Row Ball Slewing Bearings – Two parallel raceways with balls provide good load capacity with lower friction than roller designs. These are suitable for medium-sized SBM systems or those with lower load requirements.
Cross-Roller Slewing Bearings – Cylindrical rollers arranged at 90-degree angles provide exceptional moment rigidity and rotational accuracy. These are used in smaller SBM buoys or in turret bearings for Floating Production Storage and Offloading (FPSO) vessels.
Four-Point Contact Ball Slewing Bearings – A single raceway with balls contacting at four points provides moderate load capacity with very smooth rotation. These are typically used in smaller buoys or in auxiliary rotating components within the SBM system.
How to Select the Right Slewing Bearing for Single Buoy Mooring
Selecting the correct high-capacity slewing bearing for an SBM system requires systematic evaluation of several parameters:
Load Analysis – Calculate maximum axial load (Fa), radial load (Fr), and overturning moment (M) under worst-case conditions. Consider the moored vessel size (deadweight tonnage), expected environmental conditions (significant wave height, wind speed, current velocity), and safety factors required by offshore standards (typically 3–5× calculated maximum load).
Fatigue Life Requirements – Specify required L10 fatigue life (the life at which 90% of bearings survive). SBM applications typically require L10 life of 20–30 years of continuous operation. Provide LDB with expected load spectra for accurate life calculation.
Environmental Conditions – Identify water depth, expected salinity, temperature range, and presence of hydrogen sulfide or other corrosive agents. For sour service applications, specify special materials resistant to sulfide stress cracking.
Rotational Speed and Duty Cycle – SBM systems rotate slowly (typically 0.01–0.1 RPM) but continuously. Calculate expected rotations per day and total rotations over design life. Speed affects lubricant selection and seal design.
Mounting Interface – Bolt circle diameter, bolt size and grade, mounting flange flatness, and access for installation all influence bearing selection. LDB can manufacture custom bolt patterns to match existing SBM designs.
Certification Requirements – Specify required offshore certifications (DNV, ABS, API, Lloyds Register) during inquiry. LDB provides documentation supporting classification society approval.
LDB provides engineering support throughout the selection process, including load calculation, material recommendation, and part number cross-reference for existing equipment upon customer request.
Offshore Standards and Certification for SBM Slewing Bearings
Slewing bearings for Single Buoy Mooring systems must comply with rigorous offshore industry standards:
API 17B (Recommended Practice for Flexible Pipe) – This standard covers components used in floating production systems, including SBM bearings.
DNVGL-OS-E301 (Position Mooring) – Det Norske Veritas standard for position mooring systems, specifying design requirements for mooring components including slewing bearings.
ABS Guide for Single Point Mooring Systems – American Bureau of Shipping guidance for design, manufacture, and certification of SBM components.
ISO 19901-7 (Stationkeeping systems for floating offshore structures) – International standard covering mooring system design requirements.
Material Certification – Offshore standards require full material traceability, mechanical property testing (tensile, impact, hardness), and non-destructive examination (ultrasonic or magnetic particle inspection) of critical components.
Documentation Requirements – Manufacturers must provide material certificates (EN 10204 Type 3.1 or 3.2), dimensional inspection reports, heat treatment records, and hardness test results. LDB maintains complete quality records for every bearing produced for offshore applications.
Maintenance and Life Extension of Slewing Bearings in SBM Systems
Proper maintenance extends the service life of high-capacity SBM slewing bearings:
Lubrication Management – For accessible SBM bearings, regrease annually using high-quality marine grease with extreme pressure additives and corrosion inhibitors. For sealed-for-life bearings, specify expected service life during design. Remote lubrication systems with automatic greasing may be specified for deepwater or inaccessible installations.
Seal Inspection – During scheduled maintenance (typically every 2–5 years), inspect seals for damage, hardening, or gaps. Damaged seals allow seawater ingress, leading to raceway corrosion and premature failure. Replace seals using OEM-spec marine-grade materials.
Bolt Torque Verification – During maintenance interventions, check mounting bolt torque using calibrated tools. Loose bolts allow micromotion between bearing and mounting structure, causing fretting corrosion and bolt fatigue.
Rotational Torque Monitoring – Monitor rotational torque during maintenance. Increasing torque indicates lubricant degradation, seal drag, or raceway damage. Compare measurements to baseline values recorded during commissioning.
Corrosion Monitoring – Inspect coating integrity on exposed surfaces. Touch up damaged areas with appropriate marine coatings before corrosion propagates. For bearings with sacrificial anodes, inspect anode consumption and replace as required.
Failure Mode Identification – Common failure modes in SBM applications include raceway spalling (fatigue), lubricant emulsification (seawater ingress), seal hardening (chemical/UV attack), fretting corrosion (micromotion), and galvanic corrosion (dissimilar metals). Early detection enables planned replacement before unsafe conditions develop.
LDB: Precision Slewing Bearings and Drives for SBM Applications
LDB, registered trademark, is an enterprise specializing in the design, development, manufacture, and sales of precision slewing bearings (slewing rings) and precision slewing drives.
For Single Buoy Mooring applications, LDB offers high-capacity slewing bearings specifically engineered to withstand extreme loads, corrosion, and continuous offshore operation. Our products combine load capacity, fatigue life, and reliability to meet the demanding requirements of SBM operators, engineering firms, and offshore classification societies.
Whether a customer requires a main turret slewing bearing for a large SBM system serving VLCCs, a buoy rotation bearing for offshore terminals, or a precision slewing drive for auxiliary positioning, LDB delivers engineered solutions with consistent quality, corrosion resistance, and long service life.
Contact LDB today for technical support, part number cross-reference, or a quotation for high-capacity slewing bearings and slewing drives for Single Buoy Mooring and other offshore applications.
