Slewing Bearings for Floating Wind: Tough, Robust, Durable

What Are Floating Wind Slewing Bearings?

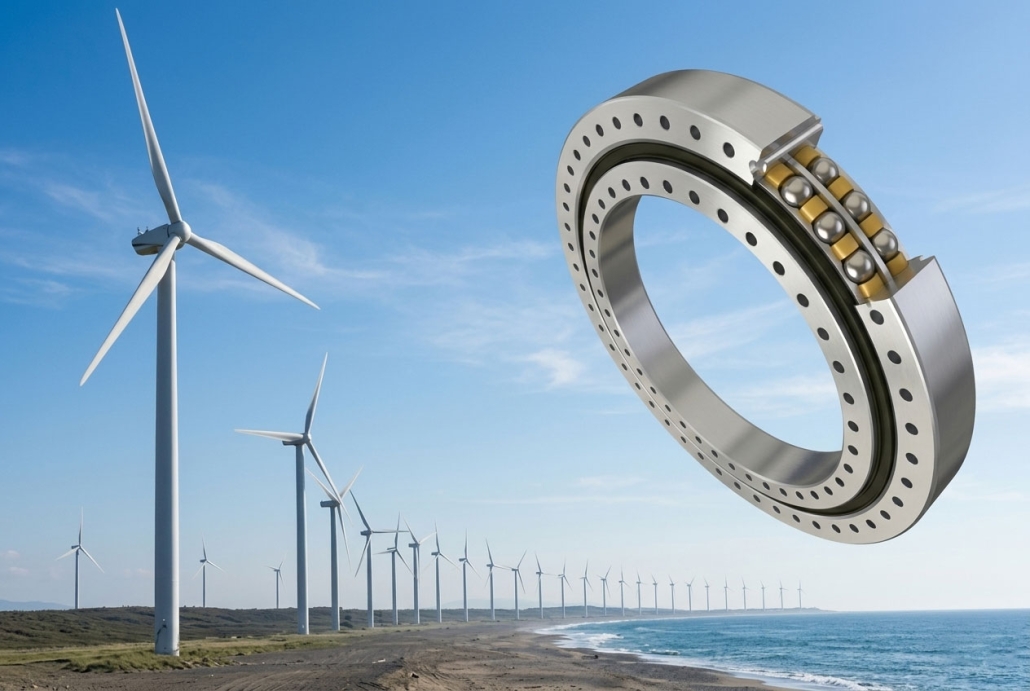

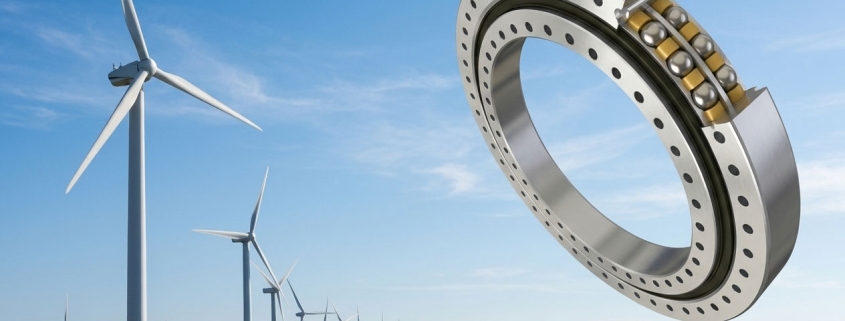

Floating wind slewing bearings are large-diameter rolling element bearings specifically designed for the harsh, dynamic environment of floating offshore wind turbines. Unlike their counterparts in onshore or fixed-bottom offshore turbines, these bearings must accommodate not only rotational movement (yaw and pitch) but also the constant, multi-directional motions of a floating platform—including heave, sway, surge, roll, pitch, and yaw of the floating structure itself.

In a typical floating wind turbine, slewing bearings are used in two critical locations:

Yaw Bearing: Located between the tower top and the nacelle, allowing the rotor to face into the wind direction.
Pitch Bearings: Located at the blade root (one per blade), allowing each blade to rotate about its longitudinal axis to control rotor speed and power output.

What makes floating wind bearings different is the operating environment. The floating platform moves continuously with waves, currents, and wind. This motion introduces additional oscillatory loads, angular misalignments, and fatigue cycles that are not present in land-based or fixed-bottom turbines. A floating wind slewing bearing must remain functional for 20–25 years with minimal maintenance, all while exposed to saltwater, marine growth, temperature extremes, and storms.

Why Floating Wind Turbines Require Specialized Slewing Bearings?

Conventional slewing bearings—even those used in heavy construction or mining—are not designed for the unique challenges of floating wind. Below are the key reasons why specialized bearings are essential:

Continuous Dynamic Motion

Fixed-bottom turbines experience relatively stable foundation conditions. Floating turbines, however, undergo constant six-degree-of-freedom motion. The slewing bearings must accommodate both the intended rotational movements (yaw and pitch) and unintended relative movements caused by platform tilting and twisting. This requires larger internal clearances and more robust rolling element retention systems.

Extreme Fatigue Loading

Offshore wind turbines experience millions of load cycles over their design life. Floating platforms add low-frequency oscillations (waves) and high-frequency vibrations (turbine operation). The slewing bearing’s raceways and rolling elements must be engineered for extreme fatigue resistance, often requiring specialized steel grades and heat treatment processes that exceed ISO standards for standard bearings.

Corrosion in Saltwater Environment

The marine atmosphere is highly corrosive. Salt spray, condensation, and direct seawater splash can rapidly degrade unprotected steel. Floating wind slewing bearings require advanced corrosion protection systems, including:

Stainless steel raceways (e.g., 440C, 17-4PH)
Heavy-duty epoxy or zinc-nickel coatings
Sealed lubrication systems that prevent moisture ingress

Maintenance Access Limitations

Floating wind turbines are located tens or hundreds of kilometers from shore. Access by service vessels is weather-dependent and expensive. A bearing failure can cost millions in lost energy production and repair logistics. Therefore, floating wind slewing bearings are designed for extreme reliability and often include condition monitoring systems (sensors for vibration, temperature, and grease condition) to enable predictive maintenance.

Misalignment Tolerance

When a floating platform tilts (heel and trim), the angular alignment between the tower and nacelle, or between the blade and hub, can change. Specialized floating wind slewing bearings incorporate features such as spherical raceways or self-aligning rolling elements to accommodate these misalignments without excessive edge loading.

Key Features of Floating Wind Slewing Bearings

To meet the demands of floating wind, slewing bearings must incorporate the following advanced features:

High Fatigue Strength Materials

The best floating wind bearings use vacuum-degassed, clean alloy steels such as 42CrMo4 or 34CrNiMo6, with raceways induction-hardened to HRC 55–62. These materials offer superior resistance to rolling contact fatigue (RCF), the primary failure mode in wind turbine bearings.

Advanced Corrosion Protection

Raceways: Nitrided surfaces or stainless steel options.
Rings: Multi-layer coating systems (e.g., zinc-nickel + epoxy topcoat) tested to withstand 3,000+ hours of salt spray testing (ASTM B117).
Fasteners: Duplex stainless steel or coated high-strength steel.

Robust Sealing Systems

Floating wind bearings use triple-lip seals or multi-labyrinth designs with grease-filled chambers. Some advanced designs include:

Purgable seals: Allow operators to flush contaminants out by injecting fresh grease.
Integrated seal wear sensors: Alert maintenance teams before seal failure occurs.

Integrated Condition Monitoring

Modern floating wind slewing bearings often come with embedded sensors for:

Vibration analysis (accelerometers)
Raceway temperature
Lubricant condition (moisture and particle sensors)
Bolt load monitoring (strain gauges)

These sensors connect to the turbine’s SCADA system, enabling real-time health assessment and predictive maintenance planning.

Optimized Raceway Geometry

Floating wind bearings use modified raceway profiles—such as logarithmic roller crowning or elliptical ball raceways—to reduce edge stresses under tilting moment and angular misalignment conditions. This geometry optimization can increase bearing life by 200–300% compared to standard profiles.

Types of Slewing Bearings Used in Floating Wind Applications

Different locations within a floating wind turbine require different bearing types. Below are the most common configurations:

Four-Point Contact Ball Slewing Bearings (Single-Row)

This is the most common type for yaw and pitch applications in smaller to mid-size floating turbines (up to 10 MW). A single row of balls contacts the raceways at four points, allowing the bearing to handle axial loads, radial loads, and tilting moments simultaneously. The compact design fits within the limited axial space of a nacelle or blade hub.

Best for: Yaw bearings in 6–10 MW turbines, pitch bearings in 8–12 MW turbines.

Double-Row Ball Slewing Bearings

For larger turbines (12–15 MW and above), double-row ball bearings provide higher load capacity. Two separate rows of balls (one for axial loads, one for radial loads) distribute forces more evenly, reducing stress on individual rolling elements. These bearings offer greater rigidity, which is beneficial for pitch control accuracy.

Best for: Pitch bearings in very large floating turbines (15+ MW).

Crossed Roller Slewing Bearings

Crossed roller bearings use cylindrical rollers arranged perpendicularly to each other. They offer exceptional rigidity and precision, making them ideal for pitch bearings where blade positioning accuracy directly affects power output and fatigue loads on other components.

Best for: High-precision pitch applications, especially in turbines with individual pitch control systems.

Three-Row Roller Slewing Bearings

For the largest floating turbines (20+ MW under development), three-row roller bearings provide the highest load capacity. One row handles axial loads, a second row handles reverse axial loads, and a third row handles radial loads. These bearings are massive and expensive but necessary for ultra-large rotor diameters.

Best for: Yaw bearings in very large floating turbines where tower top loads exceed the capacity of ball bearings.

How Do Floating Wind Slewing Bearings Work?

Understanding the operational sequence of a floating wind slewing bearing helps in appreciating its design complexity.

Yaw Bearing Operation:

Wind Direction Detection: Anemometers on the nacelle measure wind direction. The turbine control system calculates the required yaw angle to align the rotor with the wind.
Drive Engagement: Multiple electric yaw drives (typically 4–8 units spaced around the bearing circumference) engage pinions with the yaw bearing’s gear teeth (external or internal).
Rotation: The pinions rotate, driving the outer ring (connected to the nacelle) relative to the inner ring (connected to the tower top). The four-point contact balls roll within their raceways, supporting the nacelle weight (axial load), rotor thrust (radial load), and tilting moment from the overhung rotor.
Braking: Once aligned, hydraulic or spring-applied yaw brakes clamp the bearing to prevent unwanted rotation during turbine operation.
Continuous Accommodation: Throughout operation, the floating platform moves. The yaw bearing’s internal clearances and raceway geometry allow small angular misalignments without causing edge loading or skidding damage.

Pitch Bearing Operation:

Load Control: The turbine control system calculates the required blade pitch angle to maintain optimal rotor speed and manage structural loads.
Individual or Collective Pitching: Electric or hydraulic pitch drives (one per blade) rotate the blade relative to the hub. Each pitch bearing supports the blade’s centrifugal force, gravity loads, and aerodynamic thrust.
Cyclic Pitching: In floating turbines, pitch bearings may actuate continuously (multiple cycles per minute) to dampen platform motions. This requires exceptional fatigue resistance.
Failsafe Positioning: Pitch bearings and drives are designed to feather blades (turn edge-on to wind) in emergency shutdowns or power loss situations, requiring the bearing to operate even under extreme conditions.

Selection Considerations for Floating Wind Slewing Bearings

Selecting a slewing bearing for a floating wind project is a complex engineering decision. Key factors include:

Design Life and Load Spectrum

Floating wind bearings are typically designed for 20–25 years, but with load spectrums that include:

Ultimate loads (50-year storm events)
Fatigue loads (millions of wave and wind cycles)
Idle loads (parked turbine during storms)

The bearing must be validated using the specific load spectrum of the turbine and floating platform design.

Corrosion Protection Level

Specify salt spray testing requirements. Minimum standards for floating wind should exceed 3,000 hours to ISO 9227 (NSS) without red rust. For extreme environments, 5,000+ hours may be required.

Gear Hardening and Wear Resistance

Yaw and pitch bearings require gear teeth that resist wear despite slow, oscillatory motion. Induction-hardened teeth (HRC 50–55) with a hardened case depth of 2–3mm are standard. For high-cycle pitch applications, through-hardened teeth may be specified.

Condition Monitoring Integration

Decide which sensors are required:

Essential: Vibration and temperature sensors.
Recommended: Grease condition sensors (moisture + particle counts).
Optional: Bolt load monitoring and acoustic emission sensors for early crack detection.

Maintenance Strategy

Floating wind bearings must be designed for either:

Reliance on high reliability (no planned replacement over 20+ years)
Modular replaceability (designed for ROV or diver-assisted replacement)

The latter requires special design features such as split ring construction or accessible bolting arrangements.

Certification Requirements

Floating wind slewing bearings typically require third-party certification from organizations such as DNV, ABS, or Bureau Veritas. The certification process includes design review, material testing, prototype testing, and production quality audits.

Installation and Maintenance Challenges

Floating wind presents unique challenges for slewing bearing installation and maintenance.

Installation Challenges:

Offshore assembly: Bearings may be installed at quayside or after turbine mating with the floating platform. Each method requires different handling and bolting procedures.
Bolt tensioning: High-strength bolts must be tensioned to precise values using hydraulic tensioners (not torque wrenches) to achieve reliable preload. Under-tensioning or over-tensioning leads to premature failure.
Alignment verification: The relative alignment between bearing rings must be verified after installation, accounting for platform deflection under self-weight.

Maintenance Challenges:

Access limitations: Floating turbines are typically visited 2–4 times per year for scheduled maintenance. Unplanned bearing failures can require expensive crane vessel mobilizations.
Corrosion inspection: Visual inspection is difficult. Remote methods (drone-based, ROV-based) are increasingly used.
Regreasing: Automated lubrication systems with large grease reservoirs are preferred. Manual regreasing is impractical for most floating wind installations.

Best Practices:

Use centralized automatic lubrication systems with conditioned grease (filtered, water-free).
Install moisture breathers on gearboxes to prevent condensation.
Specify high-performance seals tested for floating wind motion conditions.
Require factory load testing with simulated floating motions.

Conclusion

Slewing bearings for floating wind must be tough, robust, and durable in ways that exceed any other bearing application. The combination of continuous dynamic motion, extreme fatigue loading, corrosive marine environment, and remote maintenance access demands specialized designs, advanced materials, and integrated condition monitoring.

As the floating wind industry grows from pilot projects to commercial-scale farms, slewing bearing technology must evolve in parallel. The bearings of tomorrow will likely incorporate even more advanced features: ceramic rolling elements for corrosion-free operation, fiber-optic sensing for real-time load measurement, and self-lubricating materials that eliminate regreasing entirely.

For today’s projects, success depends on selecting bearings that are specifically designed and certified for floating wind—not repurposed from other industries. With the right bearings, proper installation, and smart condition monitoring, floating wind turbines can achieve their design life of 20–25 years, delivering clean energy from the world’s deepest offshore wind resources.

FAQ (Frequently Asked Questions)

Q1: What is the difference between slewing bearings for fixed-bottom offshore wind and floating wind?

A: Fixed-bottom offshore wind bearings experience relatively stable foundation conditions, while floating wind bearings must accommodate continuous six-degree-of-freedom platform motion (heave, sway, surge, roll, pitch, and yaw). Floating wind bearings require larger internal clearances, higher fatigue strength, greater misalignment tolerance, and often integrated condition monitoring. The corrosion protection requirements are also more stringent due to constant wave splash and saltwater exposure on floating structures.

Q2: What materials are best for floating wind slewing bearings to resist corrosion?

A: The best materials include vacuum-degassed 42CrMo4 or 34CrNiMo6 alloy steels with nitrided raceways, or stainless steel grades such as 440C and 17-4PH for superior corrosion resistance. Additionally, multi-layer coating systems (zinc-nickel with epoxy topcoat) capable of withstanding 3,000+ hours of salt spray testing are recommended. Fasteners should be duplex stainless steel or coated high-strength steel.

Q3: How often do floating wind slewing bearings need maintenance?

A: With automated lubrication systems and condition monitoring, floating wind slewing bearings are designed for service intervals of 6–12 months. Some high-reliability designs aim for 24-month intervals or even maintenance-free operation over 20+ years. However, planned maintenance typically includes remote data review (continuous), annual sensor calibration and grease sample analysis, and major inspections every 5–8 years, weather permitting.

Q4: Can standard heavy-duty slewing bearings be used for floating wind turbines?

A: Not recommended. Standard heavy-duty bearings lack the necessary fatigue strength for floating wind load spectrums, do not have adequate corrosion protection for 20+ years in saltwater environments, and cannot accommodate the angular misalignments caused by platform motion. Using non-specialized bearings would likely result in premature failure within 3–7 years, leading to costly offshore replacement. Always specify bearings designed, tested, and certified specifically for floating wind applications.
