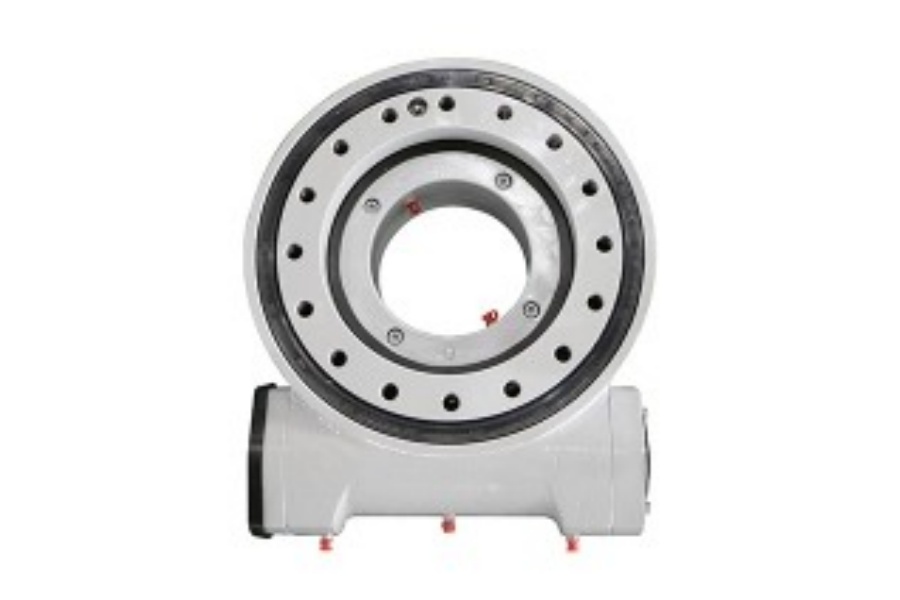

Sealing Structures and IP Ratings in Slew Drives: Protecting Performance in Harsh Environments

/in /by

Introduction: Why Sealing and IP Ratings Matter for Slew Drives

Slew drives are essential rotary motion control components widely used in solar trackers, cranes, wind turbines, and industrial automation. These systems often operate in challenging environments—exposed to dust, water, sand, or corrosive agents. A key factor determining their longevity and reliability is the integrity of their sealing structure and the corresponding IP (Ingress Protection) rating.

This article provides a comprehensive guide to sealing technologies, IP rating standards, and practical considerations when selecting a slew drive for use in harsh or outdoor environments. It also highlights supplier and manufacturer guidelines, pricing implications, and how LDB Bearing delivers sealed, durable slew drive solutions built for real-world conditions.

Understanding IP Ratings and Their Importance

IP rating stands for Ingress Protection, a globally recognized standard defined by IEC 60529. It classifies the degree of protection provided by an enclosure against:

Solids (first digit): Dust, sand, and debris

Liquids (second digit): Water, rain, and chemical splashes

Common IP Ratings in Slew Drives:

IP54: Protection against limited dust ingress and splashing water

IP65: Complete dust protection and water jets from any direction

IP66: Dust-tight and protected against strong water jets

IP67: Dust-tight and protected against immersion up to 1 meter

Higher IP ratings directly contribute to longer component life, less downtime, and better performance in exposed environments.

Types of Sealing Structures in Slew Drives

Radial Shaft Seals (Lip Seals)

Most commonly used

Made from rubber, nitrile, or fluoropolymer

Designed to retain lubrication and exclude contaminants

Labyrinth Seals

Non-contact design

Multiple paths restrict dust and moisture ingress

Preferred in high-speed or low-maintenance applications

O-Ring and Gasket Seals

Used in the housing covers and interfaces

Provide static sealing under bolt compression

Double Sealing Structures

Combine lip seals and O-rings

Provide redundancy in extreme environments (e.g., offshore wind farms, desert solar farms)

Factors Influencing Seal and IP Selection

Environmental Conditions:

Dusty industrial areas: IP65 or higher with double lip seals

Offshore and marine zones: IP66 or IP67 with corrosion-resistant seals

High humidity or rainy climates: Prioritize water-resistant materials (e.g., FKM, HNBR)

Motion and Load Cycles:

High cycle applications require seals that maintain flexibility over millions of movements

Maintenance Access:

Remote locations benefit from sealed-for-life designs with low-maintenance sealing systems

Cost, Supplier, and Manufacturer Considerations

Price Implications:

Higher IP ratings typically require better materials and precision machining

However, the added cost often offsets long-term repair or replacement expenses

Supplier Evaluation:

Ensure the supplier provides documented IP ratings and material specs

Prefer vendors with field-tested solutions and industry-specific certifications (e.g., CE, RoHS)

Manufacturer Capabilities:

A reliable manufacturer should offer both standard and custom sealing designs

Ask for IP test results, salt spray resistance data, and sealing lifecycle expectations

LDB Bearing’s IP-Protected Slew Drive Solutions

LDB Bearing designs and manufactures high-quality slew drives with advanced sealing systems, specifically for harsh environment performance.

LDB’s Featured Products:

VE Series Slew Drive

IP66-rated, high-durability housing

Double-lip seals and anti-rust surface treatment

SDE-PDE Series Slew Drive

Modular sealing design for dual-axis systems

Custom sealing options for solar trackers and satellite dishes

HSE Series Slew Drive

Designed for wind power and marine usage

Resistant to salt spray, sandstorm, and high humidity

Advantages of Choosing LDB:

Certified sealing materials (NBR, Viton, silicone)

Factory pre-lubricated and sealed units

Direct manufacturer pricing

Global supplier network with fast lead times

Application Case: LDB Drives in Coastal Solar Farms

In a coastal photovoltaic field in southern Europe, LDB’s VE Series slew drives with IP66 protection and FKM seals were deployed. After two years of salt exposure and seasonal humidity, performance metrics remained stable with no seal degradation or leakage—outperforming competitor units by over 30% in durability testing.

Conclusion

Proper sealing and IP rating selection are not just technical details—they are the foundation of a slew drive’s reliability in real-world applications. From dust-heavy deserts to salt-rich coastal zones, the choice of sealing structure can determine project success.

LDB Bearing delivers industry-grade slew drives with robust IP-rated enclosures and tailored sealing systems, backed by proven field data and engineering expertise.

For specification sheets, samples, or RFQs, visit www.ldb-bearing.com.

Precision Meets Performance: A Deep Dive into Four Point Contact Ball Slewing Bearings

/in /by

What is a Four Point Contact Ball Slewing Bearing?

A Four Point Contact Ball Slewing Bearing is a type of rotational rolling-element bearing that allows one row of balls to contact the raceway at four points. This unique geometry enables the bearing to carry axial loads in both directions, radial loads, and tilting moments—simultaneously. Because of its compact structure and ability to handle complex combined loads, this bearing is widely used in applications that demand high reliability, space efficiency, and operational precision.

The Engineering Behind Four Point Contact Bearings

At the heart of a four-point contact slewing bearing lies its cross-section geometry. The inner and outer rings are typically split into two halves, and the raceways are designed to enable contact at four distinct points. The contact angle is generally 35°, which allows the balls to bear force both axially and radially.

The internal clearance is carefully optimized during design to accommodate misalignment and thermal expansion, while maintaining high rotational accuracy. LDB Bearing uses advanced CNC machining and induction hardening processes to produce precision-ground raceways, which significantly extend the bearing’s service life under dynamic load conditions.

Key Structural Advantages

Simplified design: One bearing does the job of two.

Weight saving: Reduces overall system mass, especially in rotating equipment.

Fewer parts: Lowers assembly complexity and maintenance costs.

High stiffness: Offers excellent support under eccentric or offset loads.

Typical Applications of Four Point Contact Ball Slewing Bearings

This bearing style is a favorite in industries where multifunctional load handling and space constraints are critical. Below are some representative application domains where LDB’s four-point bearings perform exceptionally well:

Construction Machinery

Crawler cranes, truck-mounted cranes, and excavators all depend on four point contact bearings to support boom rotation and lifting. These bearings must support significant radial loads from the rotating superstructure and moment loads due to heavy lifting. LDB supplies high-load-capacity models to construction OEMs worldwide.

Wind Energy

Yaw bearings in wind turbines allow the nacelle to rotate and face the wind. These bearings endure frequent wind direction changes and high axial loads. LDB offers anti-corrosion treated models and customized seal configurations for offshore and onshore applications.

Medical Imaging Equipment

In large diagnostic machines like CT scanners and radiotherapy devices, bearings must deliver smooth, quiet, and stable rotation. LDB produces precision-ground models with ultra-low noise and minimal backlash to meet the strict requirements of the medical field.

Industrial Turntables and Robots

Rotary tables and robotic joints benefit from the compact design and precision of four-point contact bearings. LDB’s product range supports automated welding stations, assembly arms, and semiconductor inspection equipment.

Aerial Platforms and Lifts

Stability and safety are paramount in elevating work platforms. LDB bearings ensure safe load support and smooth motion across varying elevation and rotation conditions.

LDB’s Four Point Contact Slewing Bearing Portfolio

LDB Bearing, headquartered in Luoyang, China, is a globally recognized manufacturer specializing in slewing rings and drive solutions. Their four point contact ball slewing bearings are manufactured under ISO 9001 and ISO/TS 16949-certified quality systems.

Product Features:

Materials: Forged 42CrMo or 50Mn rings with GCr15 steel balls.

Hardness: Raceway hardness 55–62 HRC for long wear life.

Raceway Design: Precision-ground for uniform ball contact.

Customization: Inner ring, outer ring, or gearless options available.

Diameter Range: 300 mm to 10,000 mm to fit light to heavy machinery.

LDB also offers tailored solutions with specific bolt patterns, grease nipples, sealing systems, and pre-load settings based on customer drawings or industry standards.

Pricing Overview

Pricing for four point contact ball slewing bearings depends on a range of factors including:

Bearing size and gear type (external/internal/no gear)

Material grade and surface treatment

Load rating and dynamic requirements

Custom features (seals, mounting holes, lubrication)

As a rough estimate, small- to mid-sized models (300–1000 mm OD) range from $300 to $1200 USD per unit, while large-scale models (2000+ mm OD) can cost upwards of $5000 USD. LDB offers volume discounts for OEM clients and long-term project partnerships.

To obtain accurate pricing, customers can submit inquiries through LDB’s official website or consult directly with a sales engineer for a personalized quote.

Why Choose LDB?

LDB Bearing has over 20 years of manufacturing experience in large-diameter bearing production. Here’s why global clients choose LDB as their go-to slewing bearing supplier:

Advanced Production Capabilities

Over 300 CNC machining centers

Induction hardening, gear shaping, and ultrasonic testing

Integrated QC processes with 100% inspection before delivery

Technical Support & Engineering

2D/3D CAD support for design validation

Finite element analysis (FEA) to ensure load safety

Application-specific customization (robotics, energy, medical, etc.)

Worldwide Distribution

LDB’s products are exported to over 40 countries and regions including Europe, Southeast Asia, North America, and the Middle East. The company supports global clients with bilingual technical documentation and 24/7 after-sales service.

Conclusion

Whether you’re designing a crane, building a wind turbine, or innovating in automation, the four point contact ball slewing bearing is an engineering solution that combines strength, compactness, and reliability. Backed by precision manufacturing and deep application knowledge, LDB Bearing delivers world-class solutions that meet and exceed industry standards.

For a future-proof investment in bearing performance, choose LDB—where quality meets innovation.
