Double Row Ball Slewing Bearings for Construction Equipment
Construction equipment operates under some of the most demanding conditions in the industrial world. Tower cranes lifting multi-ton loads, excavators digging through rock and debris, concrete pump trucks extending booms across construction sites—all rely on a single critical component to enable their primary function: rotation. The double row ball slewing bearing is the engineering solution that makes this possible, offering the load capacity, structural rigidity, and long-term reliability that heavy machinery demands.
This guide provides a comprehensive overview of double row ball slewing bearings for construction equipment applications—covering design principles, working mechanisms, selection criteria, and maintenance practices. For a broader understanding of slewing bearings and their various configurations, this article focuses specifically on the double row variant and its role in heavy machinery.
What Is a Double Row Ball Slewing Bearing?
A double row ball slewing bearing is a large-diameter rotary component that incorporates two independent rows of steel balls between the inner and outer rings. Unlike single-row slewing rings—which feature a single row of balls with four points of contact between each ball and the raceway—double row products offer two rows of ball bearings, two separate raceways, and eight points of contact for each ball.
This fundamental difference enables double row bearings to handle significantly higher loads and provide greater reliability compared to their single-row counterparts. The same-diameter double row ball slewing bearing produced by LDB is specifically engineered for demanding applications such as concrete pump trucks and tower cranes.

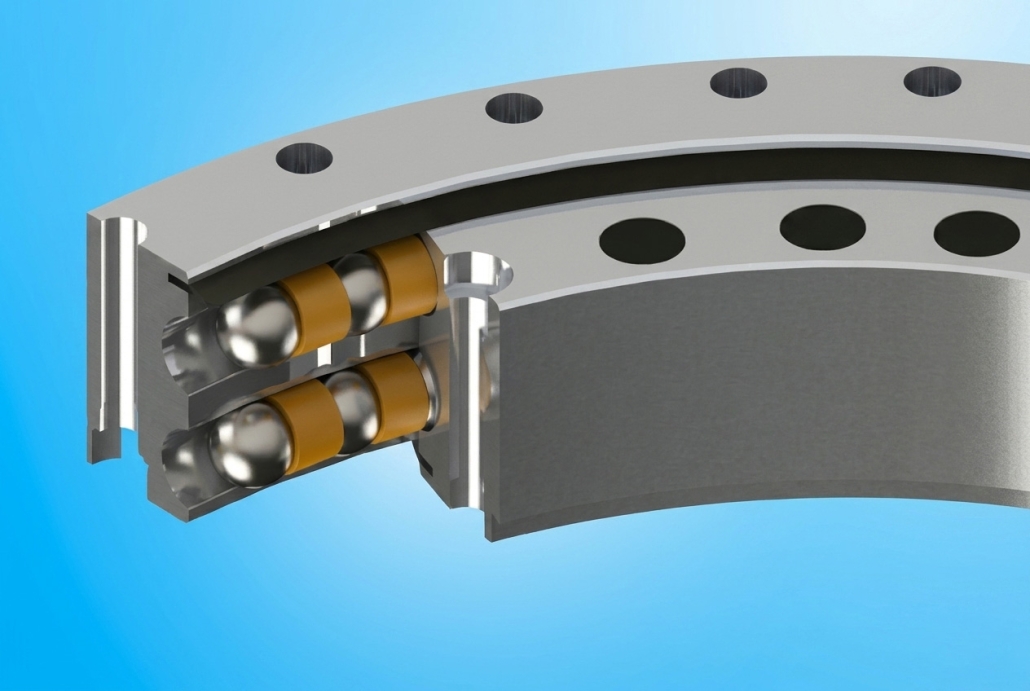

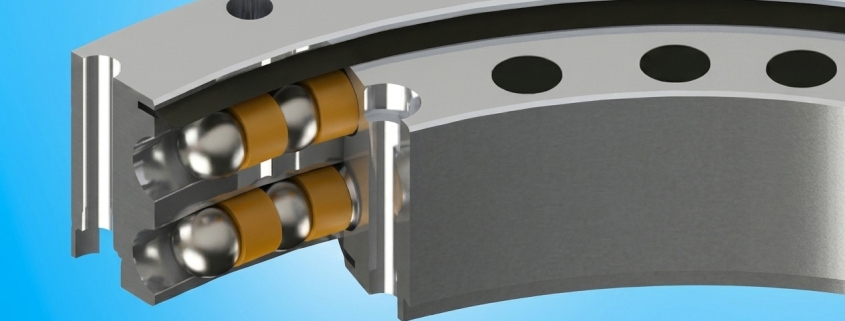

The bearing structure consists of three main rings (or a combination of inner and outer rings with two raceways), steel balls arranged in two rows, spacers or cages to maintain ball spacing, and sealing devices to protect against contamination. LDB manufactures these bearings with an outer diameter range of 300 mm to 10,000 mm, accommodating both compact machinery and large-scale industrial systems.
Key Design Features of a Double Row Ball Slewing Bearing
LDB’s double row ball slewing bearings incorporate several distinctive features based on actual production specifications:
| Feature | Specification / Option |
|---|---|
| Outer Diameter | 300 mm – 10,000 mm |
| Ring Material | 42CrMo / 50Mn / C45 |
| Ball Material | GCr15 bearing steel |
| Cage Material | Steel 20 or ZL102 cast aluminum alloy |
| Spacer Material | Nylon 6 / Nylon 66 |
| Raceway Hardness | HRC 55-62 (quenched) |
| Gear Types | No gear, internal gear, external gear |
| Lead Time | 30 days |
Eight-Point Contact Geometry – Unlike single-row slewing rings that offer four points of contact per ball, LDB’s double row design provides eight points of contact per ball. This increased contact area reduces stress concentration and enhances load distribution.
Premium Material Selection – The ring materials (42CrMo, 50Mn, or C45) are high-grade steel alloys known for their excellent hardenability, fatigue resistance, and impact strength. The balls are manufactured from GCr15 bearing steel, specifically formulated for rolling element applications requiring high hardness and wear resistance.
Raceway Hardness – The quenching hardness of HRC 55-62 ensures a hard, wear-resistant surface while maintaining sufficient core toughness to absorb shocks and impacts—a critical requirement for construction equipment operating in harsh environments.
Flexible Gear Configurations – Available with no gear, internal gear, or external gear. External gearing is commonly used in concrete pump trucks and cranes, while internal gearing is often preferred for compact installations.
How Does a Double Row Ball Slewing Bearing Work in Construction Equipment?
The working principle of a double row ball slewing bearing centers on the separation of load paths. Because there are two distinct rows of balls and two separate raceways, each row can be optimized for specific load types. The upper row typically handles axial loads and tilting moments, while the lower row manages radial loads and supplementary axial forces. This division reduces internal stress concentrations and improves overall load efficiency.
When an axial load is applied downward onto the bearing, the upper row of balls compresses against its raceway, transferring force from the inner ring to the outer ring. If a tilting moment is introduced—for example, when a concrete pump truck’s boom extends outward—the load becomes uneven across the bearing circumference. The double row configuration resists this tilting by engaging both rows on opposite sides of the bearing, creating a restoring moment that maintains structural alignment.
The eight-point contact geometry provides a significant advantage in load distribution. Each ball contacts its respective raceway at four distinct points—two on the inner ring and two on the outer ring. This arrangement allows the bearing to distribute applied forces across a larger contact area, reducing peak stresses and extending fatigue life.
For construction equipment applications, this translates to:
- Smooth rotation even under heavy, unbalanced loads
- Resistance to overturning moments from extended booms and arms
- Consistent performance through thousands of operating cycles
Advantages of Double Row Ball Slewing Bearings
When compared to single-row slewing rings or other bearing types, double row ball slewing bearings offer several distinct advantages for construction equipment:
Higher Load Capacity – With two rows of balls and eight points of contact per ball, double row bearings can support significantly higher axial, radial, and tilting moment loads than single-row alternatives. The double-row design nearly doubles the number of balls sharing the load, yielding substantial load capacity gains.
Greater Reliability – The redundant load path provided by two separate rows means that even if one row experiences uneven wear or localized damage, the other row can continue to support critical loads. This inherent redundancy translates directly into higher system reliability—a crucial factor for construction equipment where unexpected downtime is costly.
Superior Anti-Overturning Capability – The wider “support surface” formed by dual-row balls effectively resists the massive asymmetric loads generated by overturning moments. This core advantage is critical for boom systems, crane jibs, and heavy-duty construction machinery.
Longer Service Life – Reduced contact stress per ball, combined with high-quality GCr15 ball material and raceway hardness of HRC 55-62, results in extended fatigue life. LDB’s double row bearings are engineered for continuous operation over many years.
Same-Diameter Efficiency – The same-diameter double row ball slewing bearing design offers optimized space utilization. By maintaining a consistent diameter while adding a second ball row, LDB maximizes load capacity without increasing the bearing’s physical footprint.
Applications of Double Row Ball Slewing Bearings in Construction Equipment
Double row ball slewing bearings are deployed across multiple construction equipment applications, with several primary use cases standing out:
| Application | Function | Key Requirement |
|---|---|---|
| Concrete Pump Trucks | Mounted between chassis and pump turret, allowing 360° boom rotation | Support weight of extended boom and concrete-filled piping; withstand dynamic pumping loads |
| Tower Cranes | Enables slewing of the jib and counter-jib | Medium to large diameters; handles variable load positions and directions |
| Mobile / Truck-Mounted Cranes | Upper structure rotation relative to chassis | High overturning moment capacity; continuous rotation capability |
| Excavators | Upper carriage rotation relative to undercarriage | Impact load resistance; durability in dusty, harsh environments |
| Aerial Work Platforms | Turntable rotation and boom articulation | Smooth motion; reliability at height |
| Port / Harbor Cranes | Heavy load handling with continuous operation | Extreme load capacity; long service life |
The same-diameter double row ball slewing bearing is also used in wind turbine equipment, where it is installed at the root of the propeller to act as a pitch bearing. However, for construction equipment, the primary applications remain cranes, pump trucks, and excavators.
Single Row vs. Double Row: A Comparative Analysis
Understanding the differences between single-row and double-row slewing bearings is essential for proper selection.
Single-Row Slewing Bearings
Single-row slewing rings feature a single row of balls with four points of contact between each ball and the raceway. This design—also known as a Four Point Contact Ball Slewing Bearing—offers a compact solution for applications with moderate loads. The single-row configuration provides four points of contact per ball, making it suitable for equipment where space is limited and load requirements are less demanding.
Double-Row Slewing Bearings
Double-row products feature two rows of ball bearings, two separate raceways, and eight points of contact for each ball. With two rows of balls sharing the load, double-row bearings deliver nearly double the load capacity of single-row alternatives, along with superior anti-overturning capability and enhanced reliability.
| Comparison Factor | Single Row (Four-Point Contact) | Double Row |
|---|---|---|
| Ball Rows | One row | Two rows |
| Contact Points per Ball | 4 points | 8 points |
| Load Capacity | Moderate | Up to 2x single-row capacity |
| Anti-Overturning Capability | Good | Superior |
| Structural Height | Lower | Higher |
| Cost | Lower | Higher |
| Best Suited For | Light to medium loads, cost-sensitive applications | Heavy loads, high overturning moments, critical reliability applications |
When to choose single row (Four Point Contact Ball Slewing Bearing): For applications with relatively uniform loads dominated by axial forces and cost-sensitive requirements, a single-row large-size ball slewing ring—such as a Four Point Contact Ball Slewing Bearing—offers an economical and practical alternative.
When to choose double row: If your equipment demands extremely high overall load capacity, robust anti-overturning capability, and exceptional operational rigidity—such as port cranes, large excavators, and concrete pump trucks—double row ball slewing bearings are the superior and more reliable choice.
How to Select the Right Double Row Ball Slewing Bearing for Construction Equipment
Proper selection requires careful evaluation of multiple factors to ensure the bearing meets application requirements:
Load Analysis
- Axial load — the vertical force along the bearing’s rotational axis
- Radial load — horizontal side forces perpendicular to the axis
- Overturning moment — tilting forces from boom extension and payload offset
- For construction equipment, moment loads are often the dominant factor
Gear Configuration
- External gear — widely used in concrete pump trucks and cranes; allows easy access for pinion engagement
- Internal gear — compact installations with space constraints
- No gear — for direct-driven or belt-driven systems
Installation Dimensions
- Verify mounting hole patterns (bolt circles, hole sizes, quantities) match equipment design
- LDB provides detailed dimension tables for external and internal gear configurations
Material Selection
- 42CrMo — high-strength alloy steel with excellent toughness; suitable for heavy-duty applications
- 50Mn — medium-carbon manganese steel with good hardenability and wear resistance
- C45 — unalloyed medium-carbon steel with reliable mechanical properties
- For most construction equipment, 42CrMo is the preferred choice due to its superior fatigue resistance
Environmental Conditions
- Dust and contamination exposure (common on construction sites)
- Temperature range and humidity
- Impact and shock loads from operation
Supplier Capabilities
- Choose a supplier like LDB capable of customizing dimensions, materials, and coatings
- Verify lead time (LDB offers 30 days for custom orders)
- Ensure quality control and heat treatment capabilities
Maintenance Tips of a Double Row Ball Slewing Bearing
Proper maintenance ensures long service life and consistent performance for construction equipment applications:
Lubrication
- Use EP (extreme pressure) grease for heavy-load applications
- LDB bearings are pre-lubricated before delivery, but ensure sufficient grease is added before installation
- Relubricate every 50-60 working hours under normal conditions—more frequently in harsh, dusty environments
- Rotate the bearing smoothly while filling grease to ensure even distribution
Bolt Torque Verification
- Use bolts with strength grade no less than 8.8 grade
- Ensure bolts have sufficient pre-tightening force (typically 0.6-0.7 times the bolt material yield strength)
- Check bolt torque after the first 100 operating hours, then at regular intervals
- Uneven bolt tension can cause localized overloading and premature failure
Sealing Inspection
- Regularly inspect elastomer seals for damage or wear
- Ensure seals remain in contact with mating surfaces to exclude contaminants
- For construction equipment operating in high-dust environments, consider additional shielding
Condition Monitoring
- Monitor for abnormal noise, shock, or sudden increases in driving force
- Check for smooth rotation without “tight spots” or uneven torque
- Document inspection results to detect performance degradation early
- If irregular rotation is detected, check: gear clearance, lubrication adequacy, mounting surface flatness, and bolt tension uniformity
Important: Never clean slewing bearings with direct water spray, as this can force contaminants into the raceway. Use appropriate cleaning methods that protect the bearing interior.
LDB: A Professional Supplier of Slewing Bearings in China
LDB specializes in the design and manufacture of high-quality double row ball slewing bearings for construction equipment and other heavy-duty applications. With years of experience and advanced manufacturing capabilities, LDB delivers solutions tailored to the specific requirements of the construction industry.
Key Highlights of LDB’s Double Row Ball Slewing Bearing Offering:
| Parameter | Range / Options |
|---|---|
| Outer Diameter | 300 mm – 10,000 mm |
| Ring Material | 42CrMo / 50Mn / C45 |
| Ball Material | GCr15 bearing steel |
| Cage Material | Steel 20 or ZL102 cast aluminum alloy |
| Spacer Material | Nylon 6 / Nylon 66 |
| Raceway Hardness | HRC 55-62 |
| Gear Types | No gear, internal gear, external gear |
| Lead Time | 30 days |
LDB’s engineering team provides application-specific support, including load analysis, custom gearing, specialized sealing solutions, and lubricant selection to ensure optimal performance and reliability. Whether you need a standard off-the-shelf product or a fully customized design, LDB is equipped to meet your requirements with proven quality and technical expertise.
With a comprehensive product range, flexible gear options, and reliable delivery timelines, LDB stands ready to serve the demanding needs of the construction equipment industry.
Frequently Asked Questions
1. What is the difference between single-row and double-row ball slewing bearings?
Single-row slewing rings feature a single row of balls with four points of contact per ball, suitable for moderate loads. Double-row products feature two rows of balls with eight points of contact per ball, offering significantly higher load capacity, superior anti-overturning capability, and greater reliability—making them the preferred choice for heavy construction equipment.
2. What overturning moment capacity can double row ball slewing bearings achieve?
The exact overturning moment capacity depends on bearing size, ball diameter, and material selection. LDB’s double row bearings are engineered for heavy-duty applications, with the double-row configuration providing a wider “support surface” that effectively resists the massive asymmetric loads generated by boom extensions and crane operations.
3. What materials are used in LDB’s double row ball slewing bearings?
LDB uses 42CrMo, 50Mn, or C45 for rings, GCr15 bearing steel for balls, steel 20 or ZL102 cast aluminum alloy for cages, and nylon 6 or nylon 66 for spacers. Raceways are induction-hardened to HRC 55-62 for optimal wear resistance and fatigue life.
4. What gear options are available for construction equipment applications?
LDB offers no gear, internal gear, and external gear configurations. External gearing is commonly used in concrete pump trucks and cranes, while internal gearing is preferred for compact installations. Gear modules and tooth profiles can be customized to match torque and speed requirements.
Conclusion
Double row ball slewing bearings have established themselves as the preferred solution for construction equipment applications demanding high load capacity, robust anti-overturning capability, and long-term reliability. Their dual-row design, eight-point contact geometry, and premium material selection enable them to handle the extreme forces and harsh conditions that define construction sites worldwide.
By understanding the design principles, selection criteria, and maintenance requirements outlined in this guide, engineers and equipment operators can confidently specify the right double row ball slewing bearing for their applications—and partner with experienced manufacturers like LDB to ensure optimal implementation and support. With a comprehensive product range, flexible gear options, and proven manufacturing quality, LDB stands ready to meet the evolving demands of the construction equipment industry.
