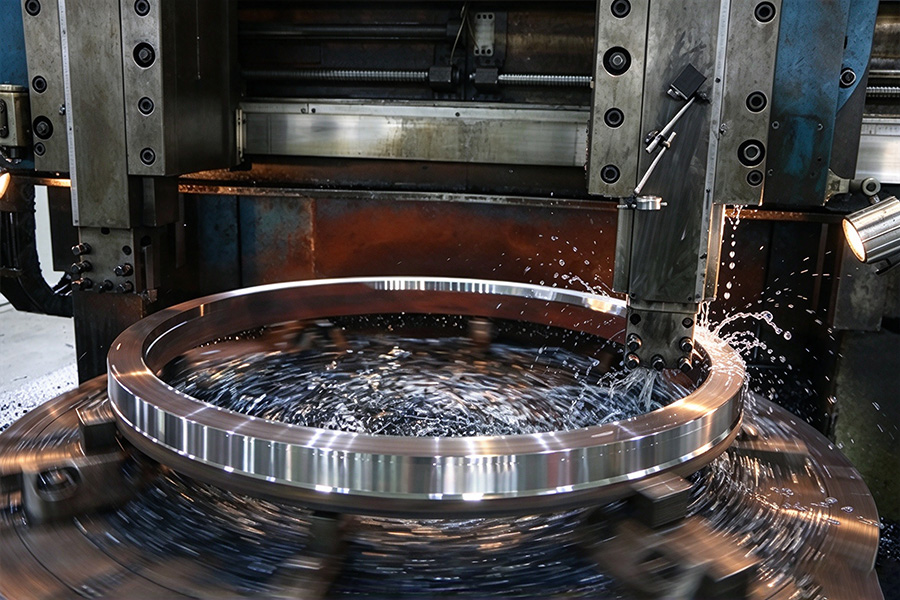

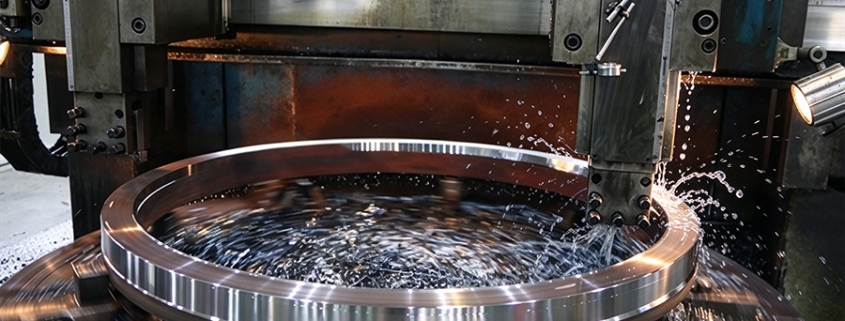

Foundation Flatness and Structural Stiffness: Preventing Premature Binding in Large-Diameter Slewing Bearings

Large-diameter slewing bearings are precision-engineered mechanical assemblies designed to transmit heavy axial, radial, and tilting moment loads. However, unlike small deep-groove ball bearings that possess rigid inner and outer rings, slewing rings are inherently flexible thin-section structures. Their operational performance depends heavily on the geometry and rigidity of the supporting mounting foundation.

In field applications, one of the most frequent causes of operational failure, stiff rotation, or total bearing binding (locking up) is not a manufacturing defect, but rather poor installation practices. Inadequate foundation flatness, insufficient structural stiffness, or improper bolt tightening sequences distort the bearing raceways, causing premature roller friction, localized stress concentration, and early raceway spalling.

How Mounting Foundation Deflection Alters Slewing Bearing Internal Clearances

When a slewing ring is bolted to a support structure, the bearing conforms to the contour of the mating surface. If the mounting plate contains high spots, weld distortion, or angular tilt, the bearing rings flex into a non-circular or warped shape.

Raceway Distortion and Ball/Roller Pinching

Even minor surface height variations (measured in tenths of a millimeter) reduce localized internal raceway clearances. When the rolling elements pass through these pinched zones, contact stress spikes dramatically, causing jerky rotation, elevated operating torque, and localized raceway pitting.

Structural Flexibility under Dynamic Tilting Moments

Under heavy overturning moments (such as fully extended crane booms or loaded excavator buckets), an under-designed mounting foundation can deflect elastically under load. This dynamic deflection induces continuous cyclic distortion in the slewing ring, accelerating structural fatigue and leading to bolt tension loss or bolt fatigue fracture.

Critical Installation Tolerances and Bolt Tightening Protocols for Slewing Bearings

To prevent premature binding and ensure smooth 360-degree rotation, engineers and field technicians must enforce strict installation tolerances and mounting procedures:

Permissible Foundation Flatness Tolerances

• Out-of-Flatness Limits: Mating foundation surfaces must be machined or leveled. For standard industrial slewing bearings, total circumferential flatness deviation should not exceed 0.1 mm to 0.2 mm (depending on bearing diameter and raceway type).
• Wave Deflection Limits: Localized flatness variations (such as a peak or valley over a 90-degree sector) must follow smooth sinusoidal curves without sharp steps or weld seams.

Star-Pattern Bolt Preload Torque Sequence

• Cross-Pattern Tightening: Mounting bolts must never be tightened sequentially in a circle. They must be tored in a multi-pass star pattern (180 degrees opposite) to evenly seat the bearing flange against the support structure.
• Calibrated Torque Wrench Usage: Always use a calibrated hydraulic or manual torque wrench to achieve the exact specified bolt preload (typically Grade 10.9 or 12.1 high-tensile bolts), preventing asymmetrical flange clamping forces.

Custom Slewing Bearing Manufacturing & Engineering by LDB Bearing

Preventing field binding requires a combination of precision site installation and expertly manufactured bearing structures. As a global leader in rotational engineering, LDB Bearing manufactures high-precision slewing rings and custom-engineered rotation assemblies designed to handle severe structural challenges.

LDB Bearing incorporates advanced manufacturing technologies and customized engineering options to maximize installation success:

• Custom Internal Clearance Design: Factory adjustment of radial and axial internal play (including negative clearance preloads or expanded clearances) tailored to accommodate expected dynamic structural deflections.
• High-Rigidity Flange Geometry: Optimized ring cross-sections engineered to resist localized deformation, available in 50Mn and 42CrMo forged alloys with customized induction-hardened raceways.
• Pre-Machined Mounting Precision: Precision-drilled bolt hole circles, tight flange tolerances, and integrated hardened locating surfaces that simplify on-site mounting and gearbox alignment.

Conclusion

The operational longevity of a slewing bearing is inseparable from the foundation upon which it sits. By maintaining strict mounting surface flatness, calculating structural stiffness under peak overturning moments, and executing controlled cross-pattern bolt torquing, field engineers can effectively prevent raceway distortion and premature bearing binding.
