The structure and function of the slewing drive of the truck-mounted crane

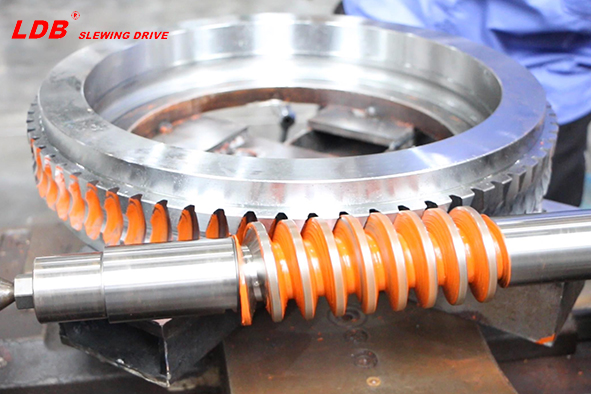

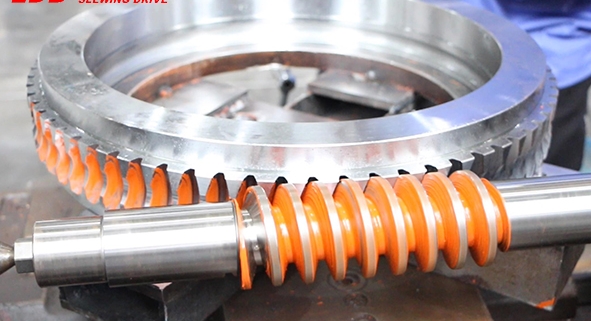

Slew Drive Structure

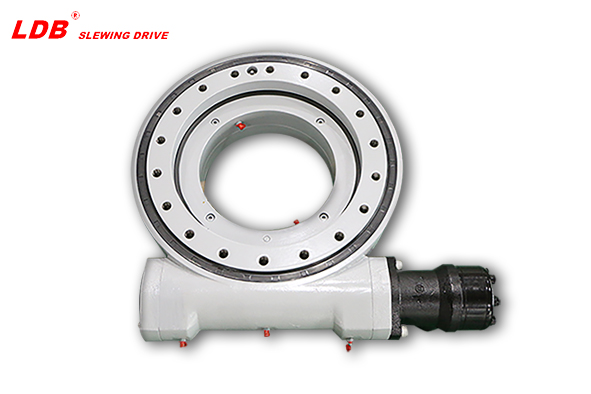

The slewing drive device of the truck-mounted crane includes a hydraulic motor, a brake and a reducer.

Function:

1.Hydraulic Motor

Convert the pressure of hydraulic oil into rotational mechanical energy and transmit the rotational motion to the reducer.

2.Brake

The brake is inside the hydraulic motor and brakes the output shaft of the hydraulic motor.

3.Reducer

The reducer of truck-mounted crane is composed of a two-stage reduction planetary gear transmission. It is decelerated through the gear transmission device and transmitted to the output shaft of the reducer.

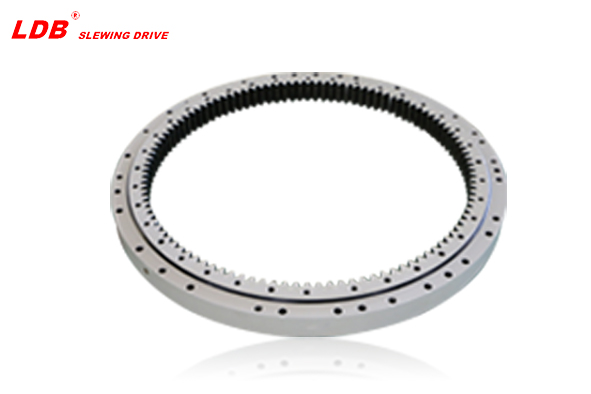

Slewing Bearing

Abnormal noise problem of excavator slewing bearing

It is normal for the new slewing bearing to make a uniform sound of rolling steel balls when it is idling. It will disappear after a period of running-in after installation. If there is a loud sound or special noise, you should pay attention.

1. The mounting surface is uneven and the mounting bolts are loose

2. There is a foreign body in the slewing bearing

3. Abnormal noise caused by a problem with the grease

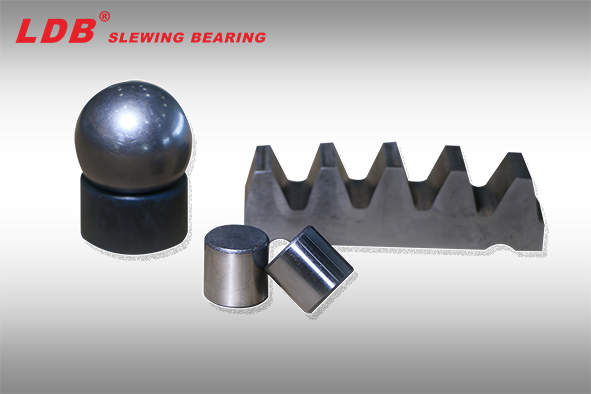

4. Raceway and rolling body are severely worn

Conclusion: you should not be careless when there is abnormal noise in the excavator slewing bearing, you must check and solve the fault in time.
