Double Row Different Diameter Ball Slewing Bearing

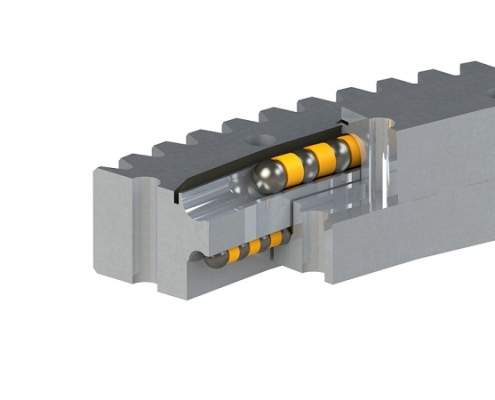

The double-row reducing ball slewing bearing has three races, and the steel balls and spacers can be directly discharged into the upper and lower races. According to the stress conditions, two rows of steel balls with different diameters are arranged. Can bear axial force and radial force at the same time.

Type parameters of double-row different diameter ball slewing bearings

Type parameters of double-row different diameter ball slewing bearings

Model Dimensions Installation size Tooth parameters Load Weight
De de di Di He Hi Ht Fe Ne he Fi Ni hi DP m z x·m k·m
[mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [-] [mm] [-] [mm] [mm] [-] [mm] [mm] [kN] [kg]
2D20-E-0755 862.8 771 797 679 58 78 82 800 24 M16 706 24 M16 852 6 142 –0.6 31.2 101
2D20-E-0971 1078.4 987 1012 895 58 78 82 1015 30 M16 922 30 M16 1064 8 133 –0.8 41.6 128

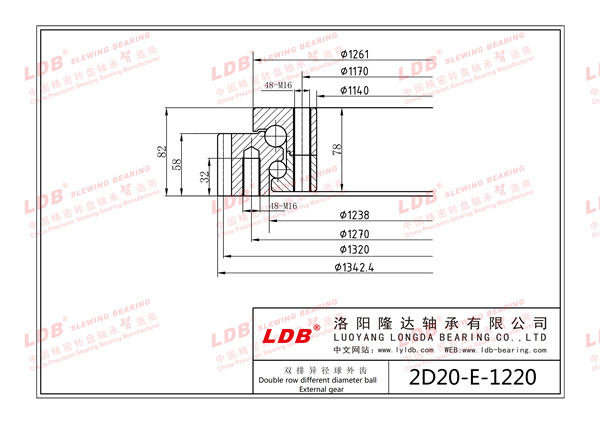

2D20-E-1220 1342.4 1238 1261 1140 58 78 82 1270 48 M16 1170 48 M16 1320 8 165 4 –0.8 58.3 178
2D20-E-1385 1502.4 1403 1426 1305 58 78 82 1435 54 M16 1335 54 M16 1480 8 185 4 –0.8 58.3 201

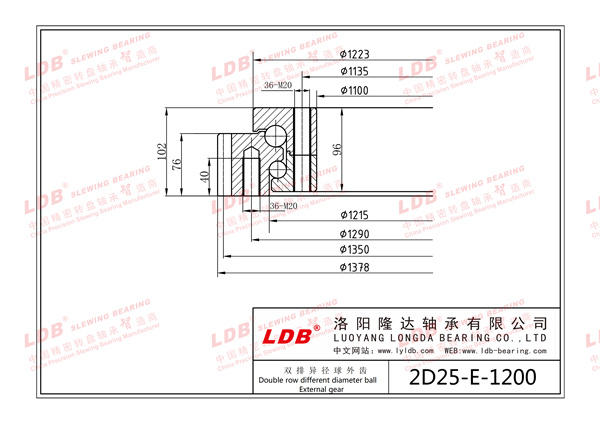

2D25-E-1200 1378 1215 1223 1100 76 96 102 1290 36 M20 1135 36 M20 1350 10 135 5 –1.0 95.4 301
2D25-E-1461 1648 1479 1484 1360 76 96 102 1555 40 M20 1395 40 M20 1620 10 162 5 –1.0 95.4 381
2D25-E-1800 2001.6 1818 1823 1700 76 96 102 1890 48 M20 1735 48 M20 1968 12 164 6 –1.2 114.5 488
2D30-E-1440 1653.6 1460 1469 1320 91 114 120 1545 36 M24 1365 36 M24 1620 12 135 6 –1.2 137.1 520
2D30-E-1734 1953.6 1757 1763 1615 91 114 120 1845 44 M24 1660 44 M24 1920 12 160 6 –1.2 137.1 636
2D30-E-2031 2253.6 2054 2060 1910 91 114 120 2140 48 M24 1955 48 M24 2220 12 185 6 –1.2 137.1 755
2D30-E-2235 2457.6 2258 2264 2115 91 114 120 2345 52 M24 2160 52 M24 2424 12 202 6 –1.2 137.1 827
2D35-E-1750 1985.2 1779 1784 1620 104 132 138 1860 44 M24 1670 44 M24 1946 14 139 7 –1.4 182.8 789
2D35-E-2220 2461.2 2249 2254 2090 104 132 138 2335 60 M24 2135 60 M24 2422 14 173 7 –1.4 182.8 1019

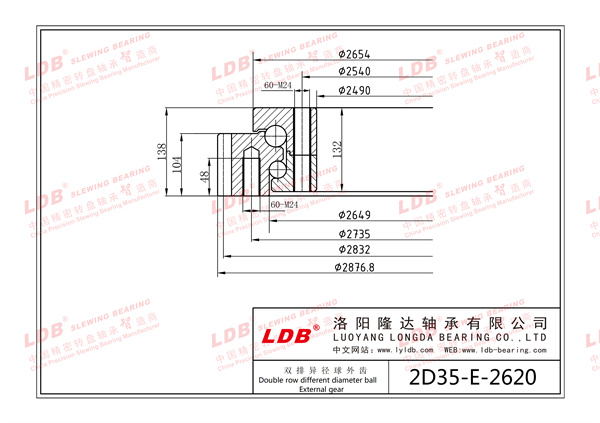

2D35-E-2620 2876.8 2649 2654 2490 104 132 138 2735 60 M24 2540 60 M24 2832 16 177 8 –1.6 209 1244

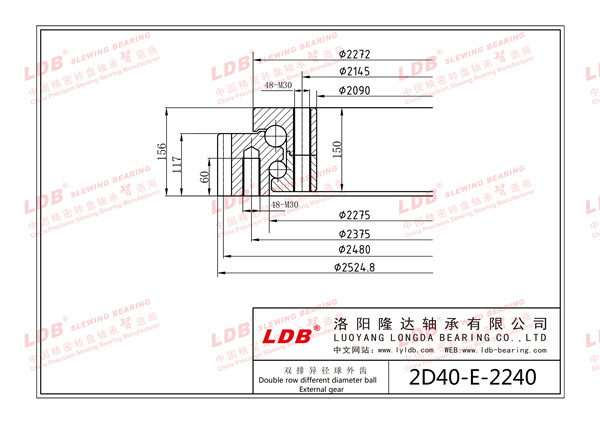

2D40-E-2240 2524.8 2275 2272 2090 117 150 156 2375 48 M30 2145 48 M30 2480 16 155 8 –1.6 235.1 1316


Internal gear type double-row different diameter ball slewing bearing model parameters

Internal gear type double-row different diameter ball slewing bearing model parameters

Model Dimensions Installation size Tooth parameters Load Weight
De de di Di He Hi Ht Fe Ne he Fi Ni hi DP m z x·m k·m
[mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [-] [mm] [-] [mm] [mm] [-] [mm] [mm] [kN] [kg]
2D18-I-0748 823 734 710 648 74 54 77 798 30 M16 705 30 M16 660 6 110 30.4 90

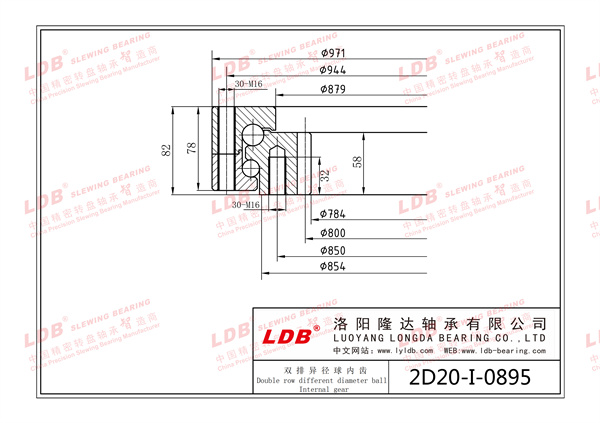

2D20-I-0895 971 879 854 784 78 58 82 944 30 M16 850 30 M16 800 8 100 45.2 118
2D20-I-1085 1161 1069 1044 960 78 66 90 1134 36 M16 1040 36 M16 980 10 98 62.2 154
2D20-I-1360 1440 1342 1319 1210 78 58 82 1410 54 M16 1300 54 M16 1220 10 122 –5.0 72.8 213
2D25-I-1360 1460 1342 1337 1180 96 76 102 1425 36 M20 1270 36 M20 1190 10 119 –5.0 95.4 336
2D25-I-1600 1700 1582 1577 1404 96 76 102 1665 42 M20 1510 42 M20 1416 12 118 –6.0 114.4 405
2D30-I-1381 1500 1358 1352 1164 114 91 120 1455 36 M24 1275 36 M24 1176 12 98 –6.0 137 474
2D30-I-1630 1750 1610 1602 1416 114 91 120 1705 40 M24 1525 40 M24 1428 12 119 –6.0 137 558

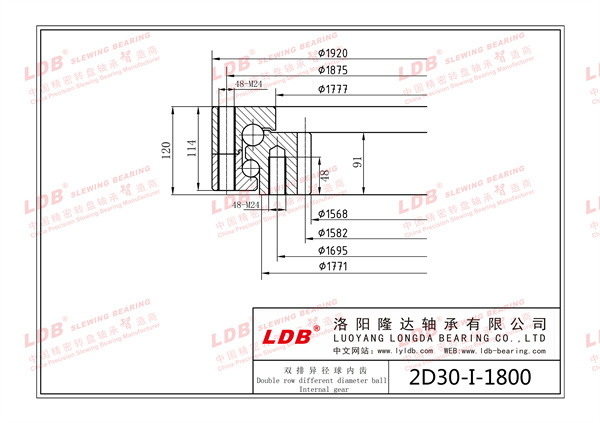

2D30-I-1800 1920 1777 1771 1568 114 91 120 1875 48 M24 1695 48 M24 1582 14 113 –7.0 160 643

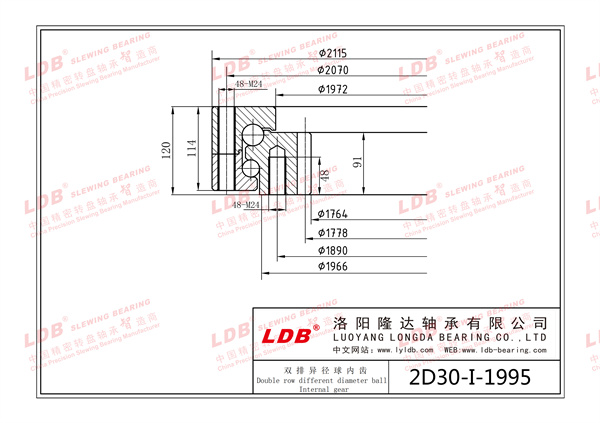

2D30-I-1995 2115 1972 1966 1764 114 91 120 2070 48 M24 1890 48 M24 1778 14 127 –7.0 160 716

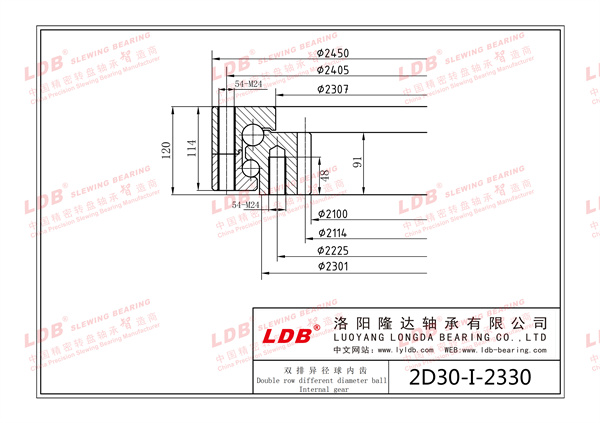

2D30-I-2330 2450 2307 2301 2100 114 91 120 2405 54 M24 2225 54 M24 2114 14 151 –7.0 160 839
2D30-I-2538 2660 2515 2509 2288 114 91 120 2615 60 M24 2430 60 M24 2304 16 144 –8.0 182.8 963

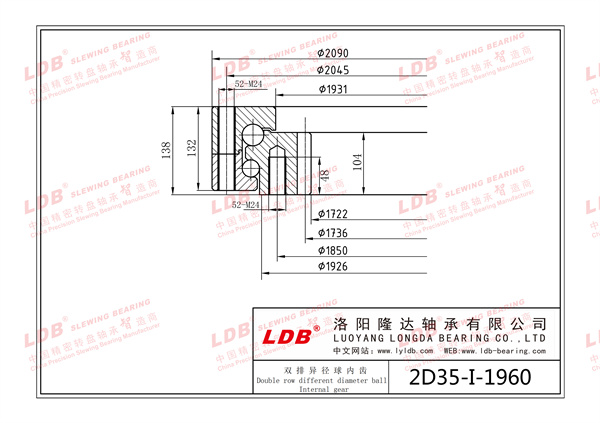

2D35-I-1960 2090 1931 1926 1722 132 104 138 2045 52 M24 1850 52 M24 1736 14 124 –7.0 182.8 851

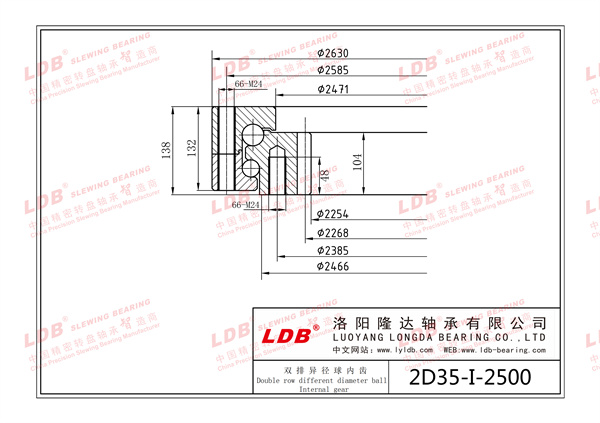

2D35-I-2500 2630 2471 2466 2254 132 104 138 2585 66 M24 2385 66 M24 2268 14 162 –7.0 182.8 1112
2D35-I-2690 2820 2661 2656 2432 132 104 138 2775 72 M24 2580 72 M24 2448 16 153 –8.0 209 1225
